2005-2006 models
- Drain the fuel tank (see FUEL TANK DRAINING
).
- Jack up the vehicle, and support it with jackstands.

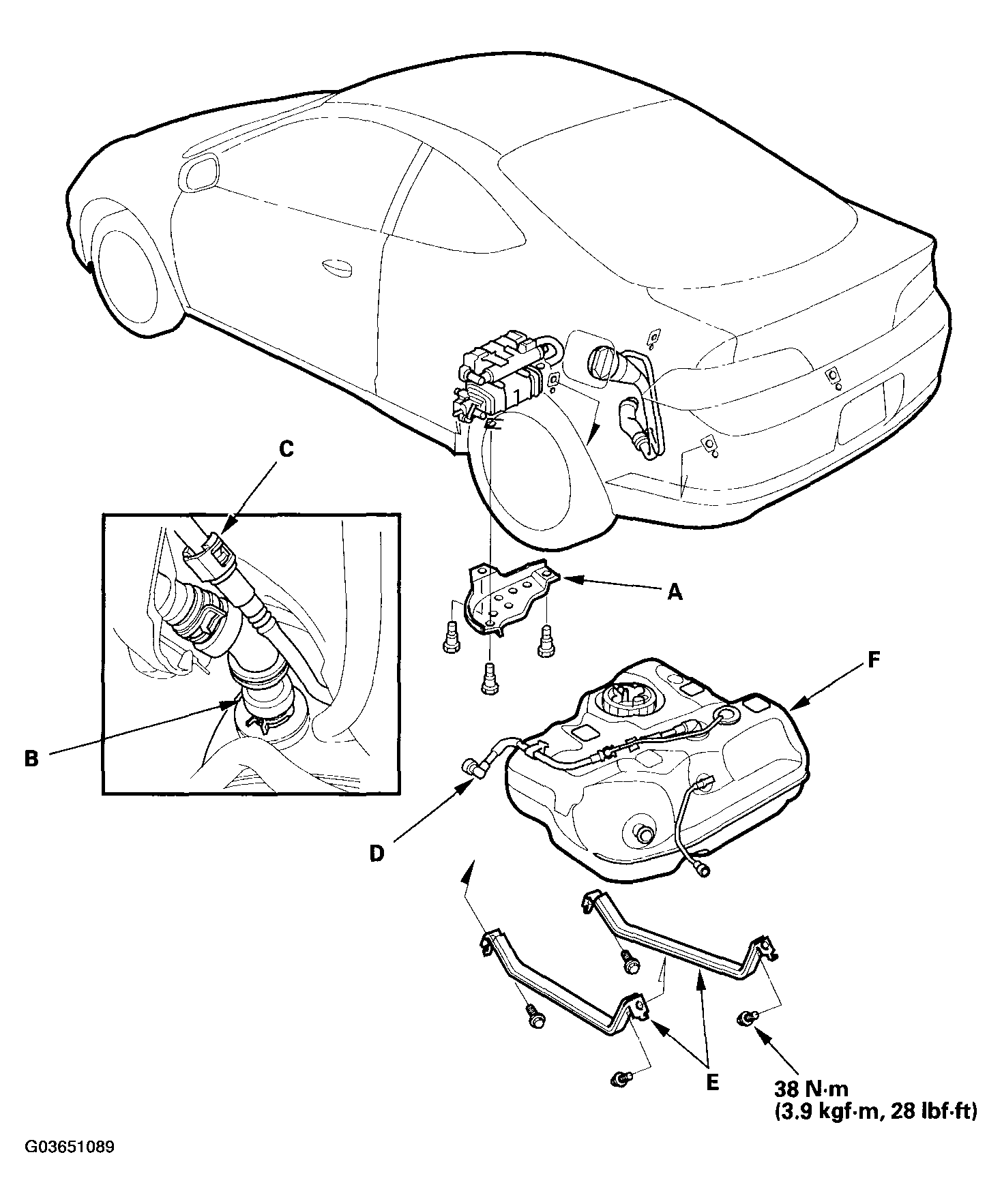

- Remove the EVAP canister cover (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the fuel fill neck tube (B) and quick-connect fitting (C).
- Disconnect the vapor line (D) from the EVAP canister.
- Place a jack, or other support, under the tank.
- Remove the strap bolts, and let the straps (E) fall free.
- Remove the fuel tank (F). If it sticks to the undercoat on its mount, carefully pry it off the mount.
- Install the parts in the reverse order of removal.
