K20A2 engine

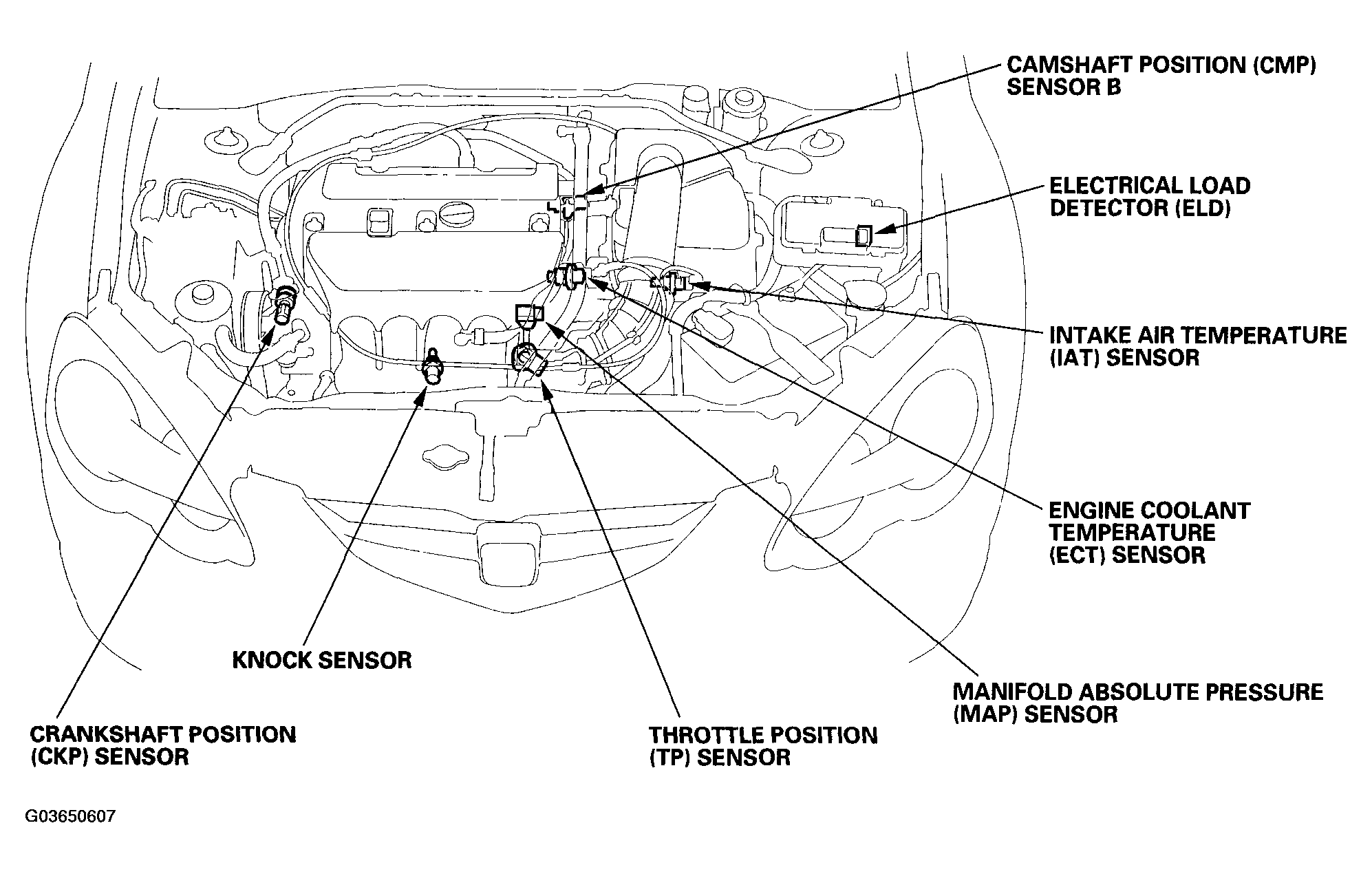

Fig 1: Identifying PGM - FI System Component Location Index (K20A2 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
