K20A2/K20Z1 engines

  1. Remove the intake manifold bracket (A).

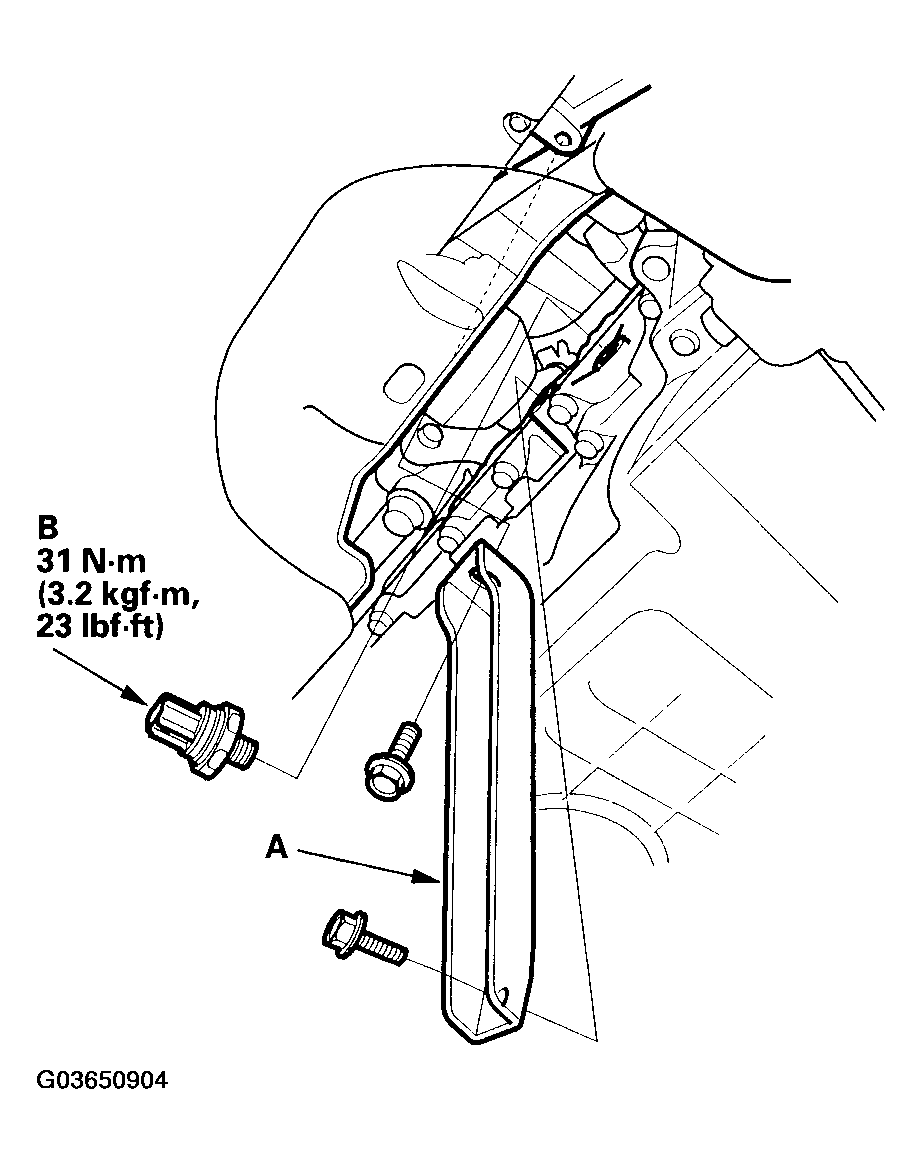

    Fig 1: Removing Intake Manifold Bracket And Torque Specifications
    G03650904Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the knock sensor 1P connector.
  3. Remove the knock sensor (B).
  4. Install the sensor in the reverse order of removal.
