CMP Sensor A Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect CMP sensor A 3P connector.
  3. Remove CMP sensor A from the intake camshaft side of the cylinder head.

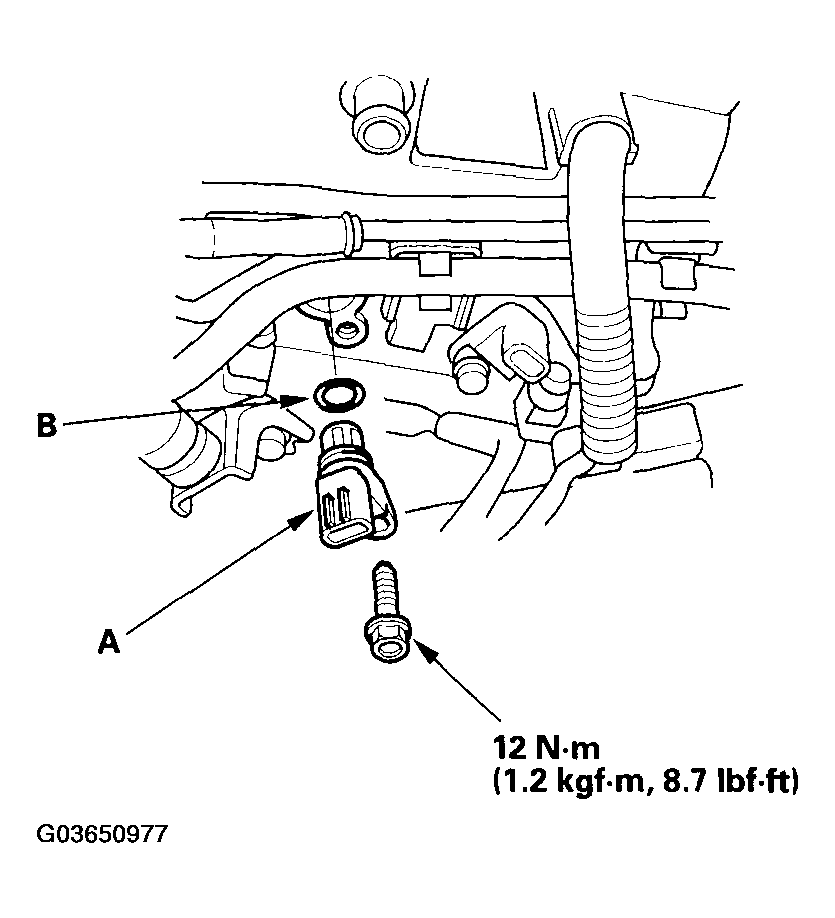

    Fig 1: Removing CMP Sensor A From Intake Camshaft Side Of Cylinder Head And Torque Specifications
    G03650977Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install CMP sensor A in the reverse order of removal with a new O-ring (B).
