Component Location Index

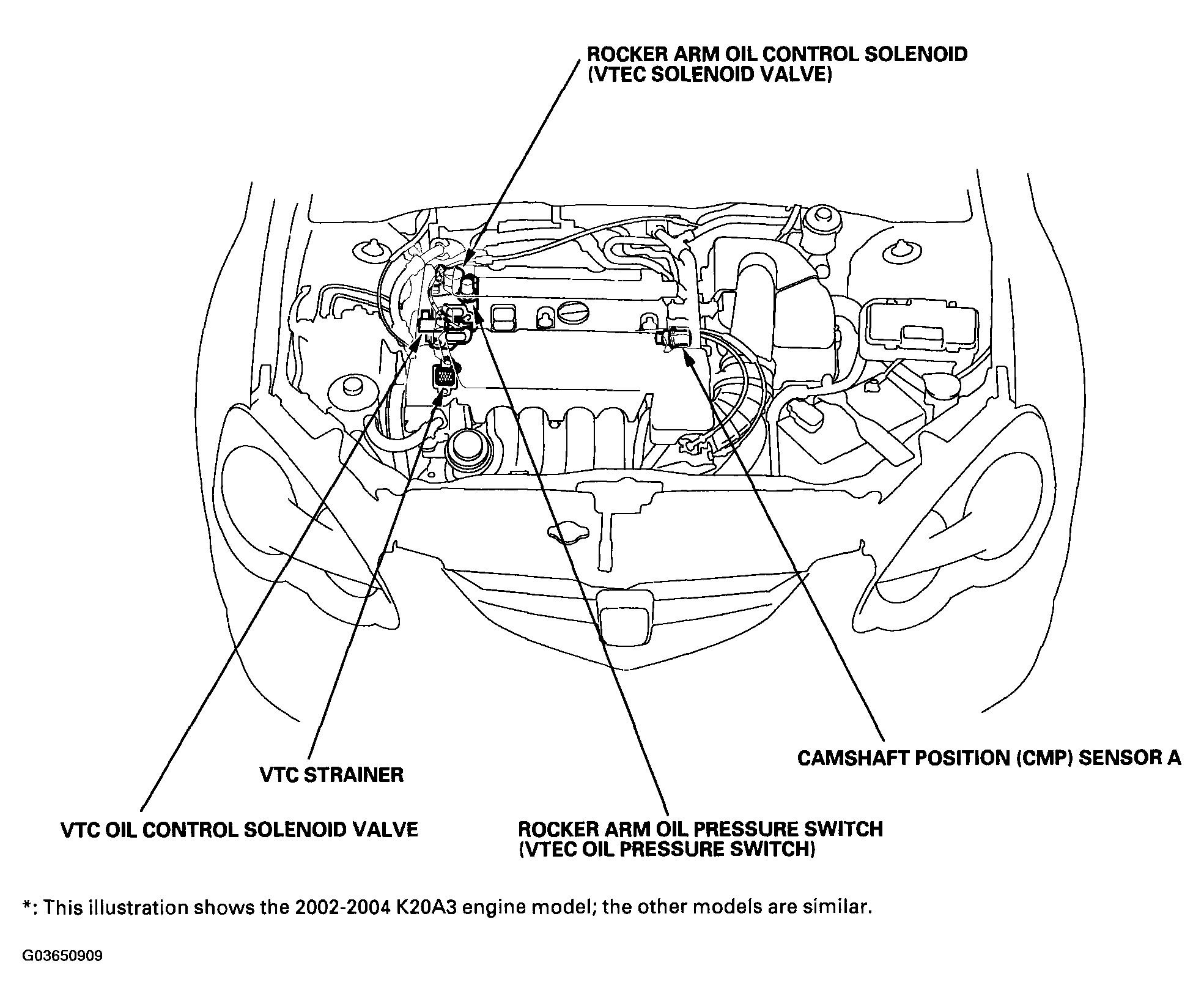

Fig 1: Identifying Component Location VTEC/VTC
G03650909Courtesy of AMERICAN HONDA MOTOR CO., INC.
