2005-2006 models

  1. Remove the fuel pump (see 2005-2006 MODELS  ).
  2. Remove the terminal (A) and clip (B).

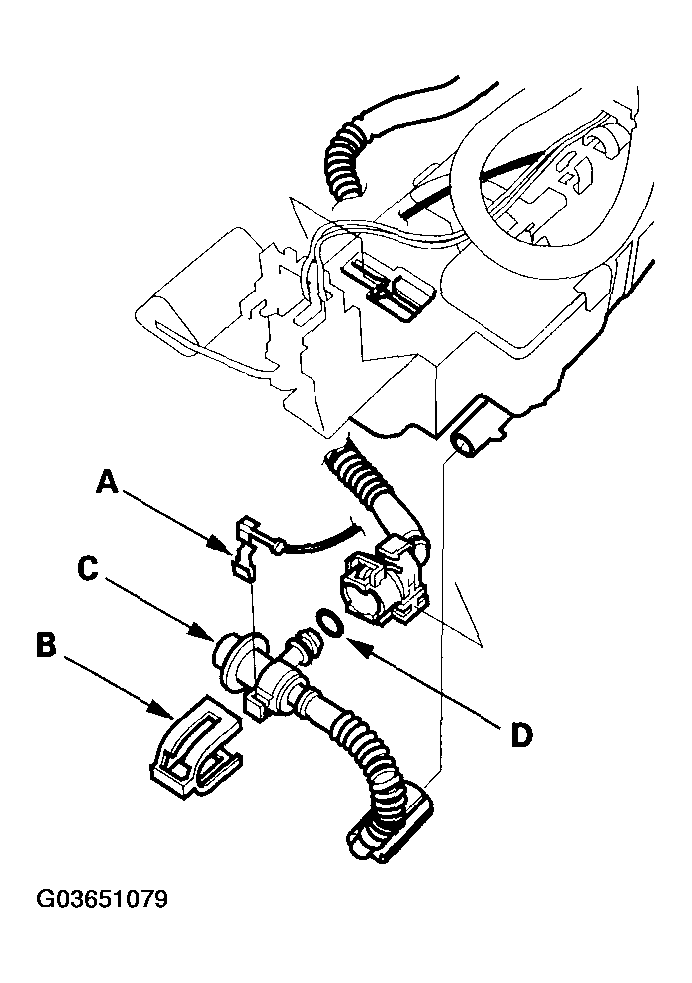

    Fig 1: Removing Terminal And Clip
    G03651079Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pressure regulator (C).
  4. Install the regulator in the reverse order of removal with a new O-ring (D).
