Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

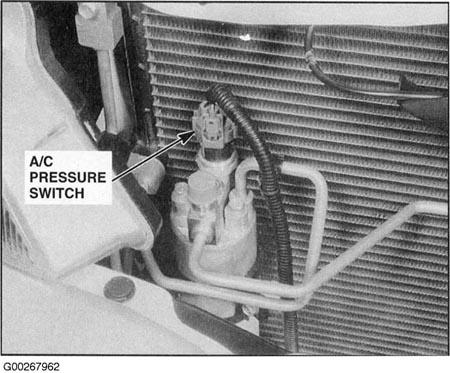

Fig 1: Right Front Of Engine Compartment

G00267962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

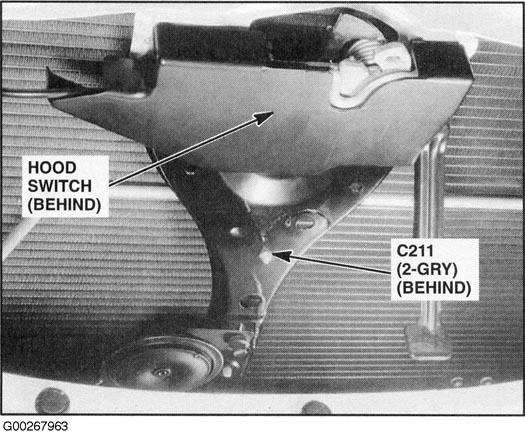

Fig 2: Front Of Engine Compartment

G00267963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

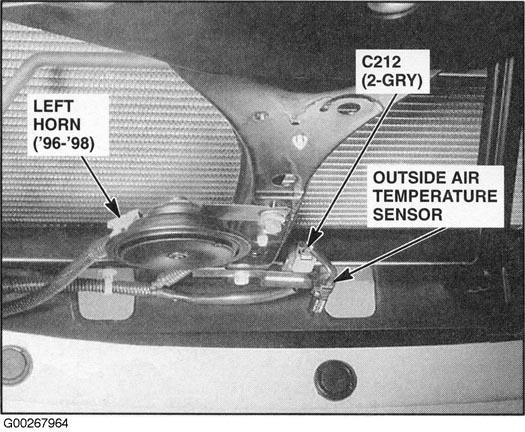

Fig 3: Front Of Engine Compartment

G00267964

Courtesy of AMERICAN HONDA MOTOR CO., INC.

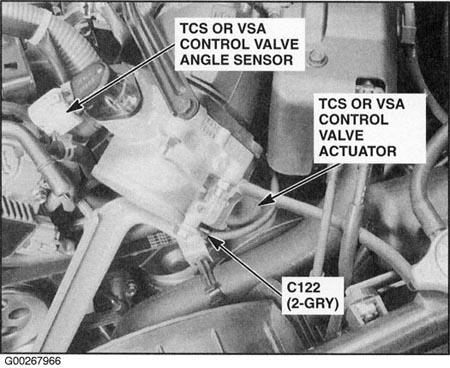

Fig 4: Center Front Of Engine

G00267966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

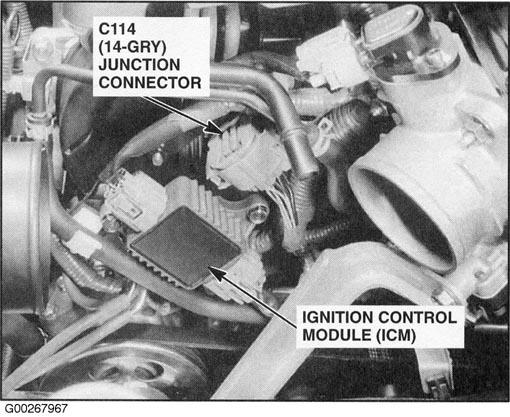

Fig 5: Center Front Of Engine

G00267967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

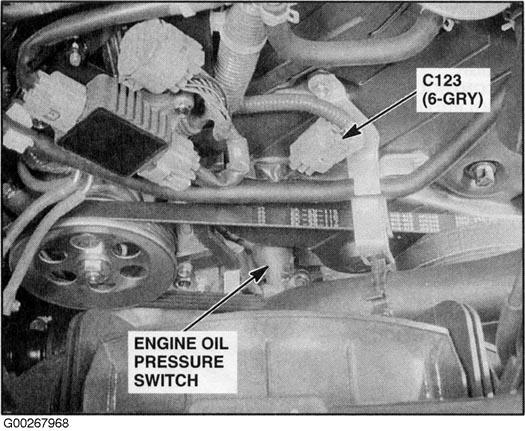

Fig 6: Center Front Of Engine

G00267968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

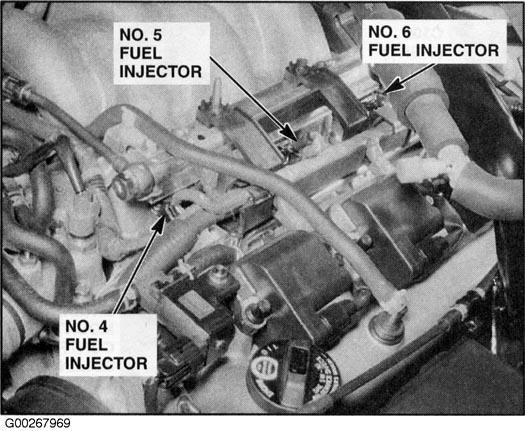

Fig 7: Top Left Of Engine

G00267969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

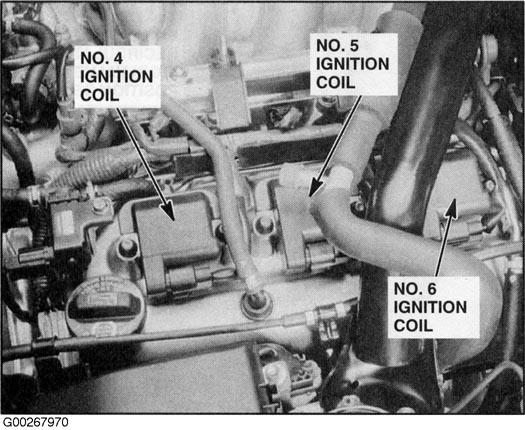

Fig 8: Top Left Of Engine

G00267970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

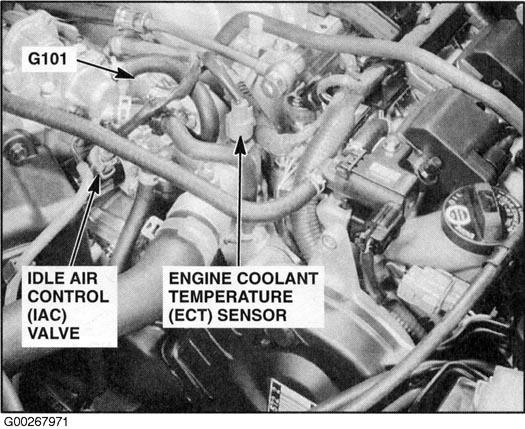

Fig 9: Top Left Of Engine

G00267971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

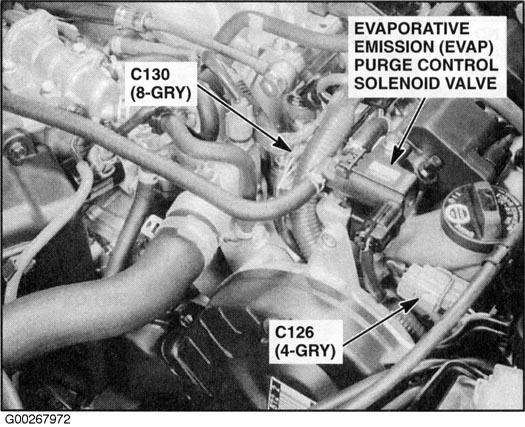

Fig 10: Top Left Of Engine

G00267972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

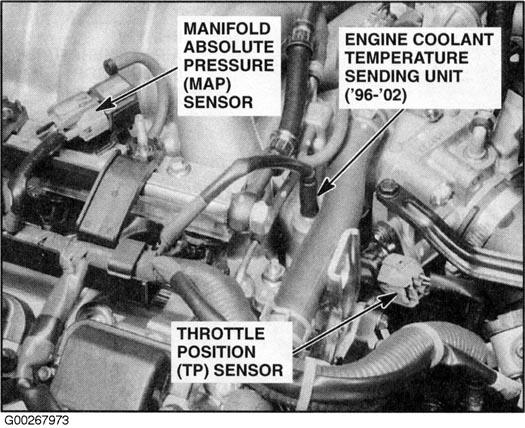

Fig 11: Top Right Of Engine

G00267973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

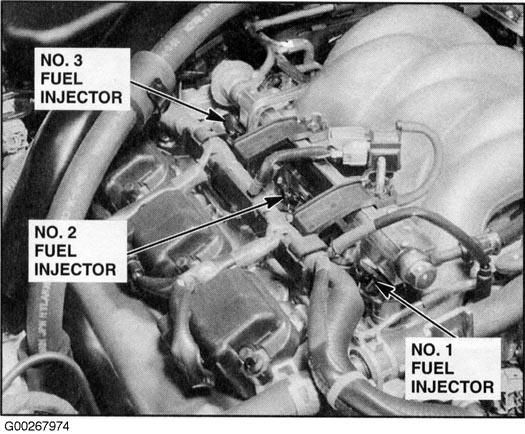

Fig 12: Top Right Of Engine

G00267974

Courtesy of AMERICAN HONDA MOTOR CO., INC.

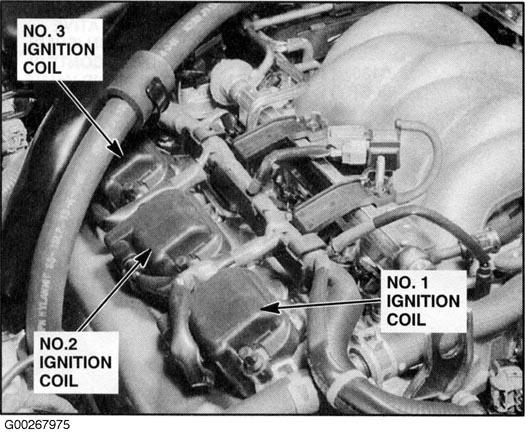

Fig 13: Top Right Of Engine

G00267975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

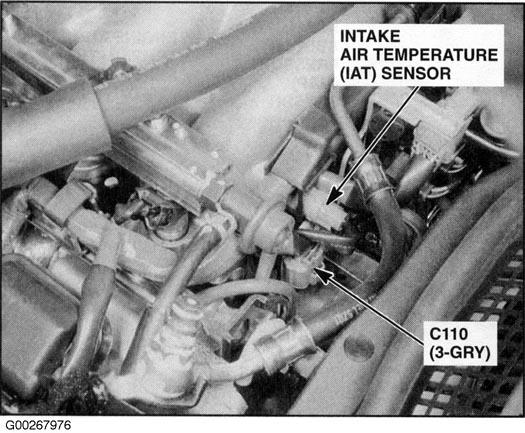

Fig 14: Center Rear Of Engine

G00267976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

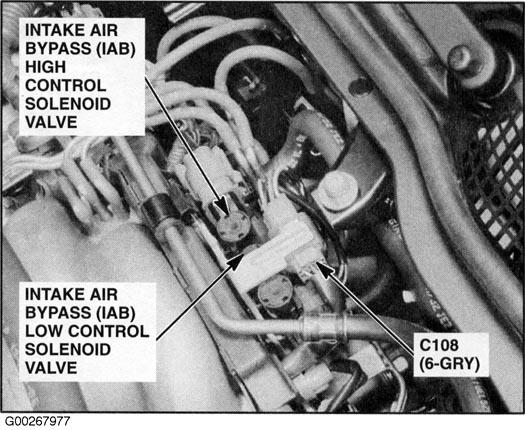

Fig 15: Center Rear Of Engine

G00267977

Courtesy of AMERICAN HONDA MOTOR CO., INC.

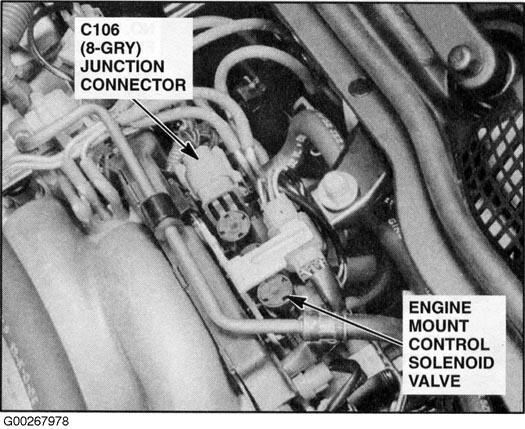

Fig 16: Center Rear Of Engine

G00267978

Courtesy of AMERICAN HONDA MOTOR CO., INC.

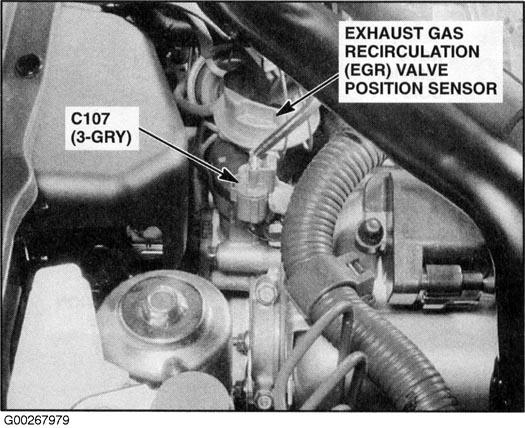

Fig 17: Right Rear Of Engine

G00267979

Courtesy of AMERICAN HONDA MOTOR CO., INC.

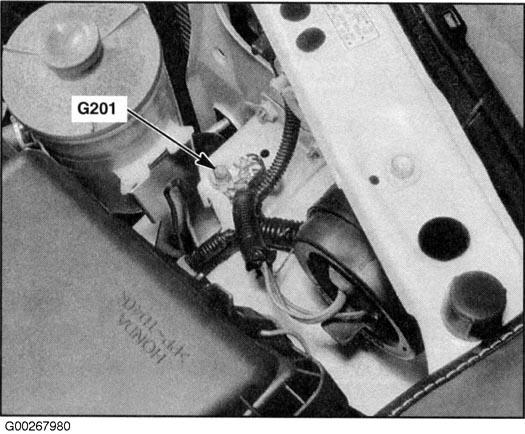

Fig 18: Right Front Of Engine Compartment

G00267980

Courtesy of AMERICAN HONDA MOTOR CO., INC.

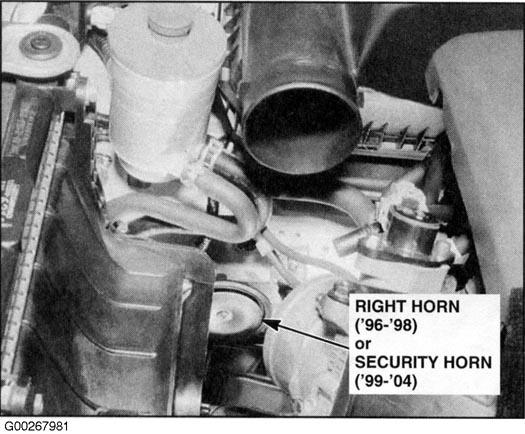

Fig 19: Right Front Of Engine Compartment

G00267981

Courtesy of AMERICAN HONDA MOTOR CO., INC.

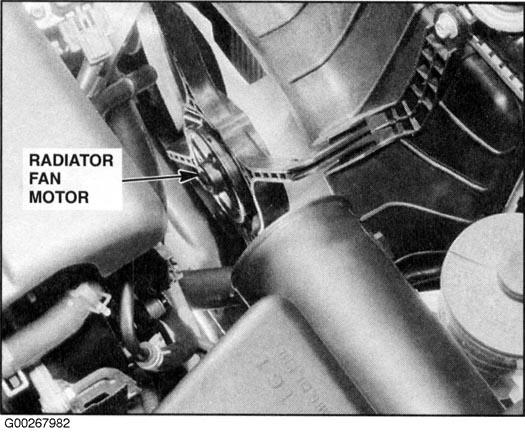

Fig 20: Right Front Of Engine Compartment

G00267982

Courtesy of AMERICAN HONDA MOTOR CO., INC.

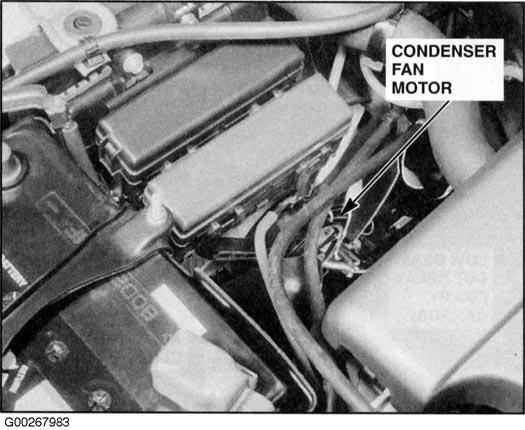

Fig 21: Left Front Of Engine Compartment

G00267983

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Left Front Of Engine Compartment

G00267984

Courtesy of AMERICAN HONDA MOTOR CO., INC.

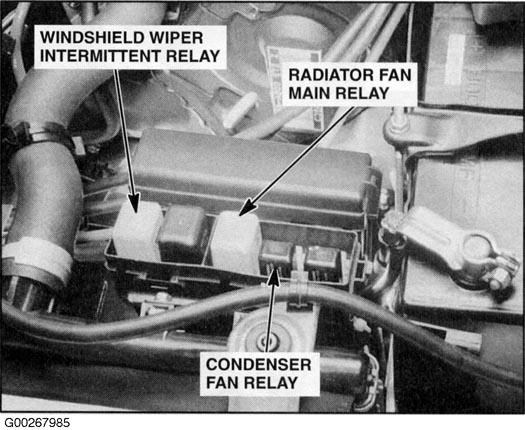

Fig 23: Under-Hood Relay Box A

G00267985

Courtesy of AMERICAN HONDA MOTOR CO., INC.

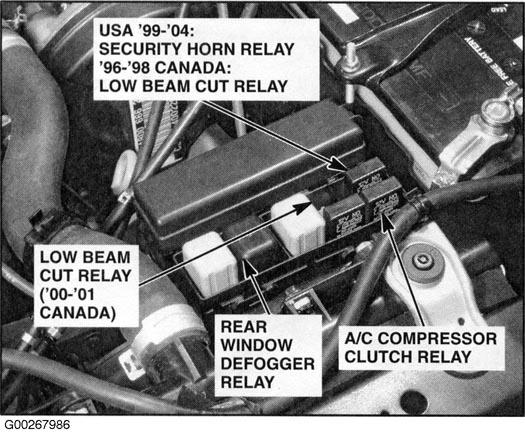

Fig 24: Under-Hood Relay Box A

G00267986

Courtesy of AMERICAN HONDA MOTOR CO., INC.

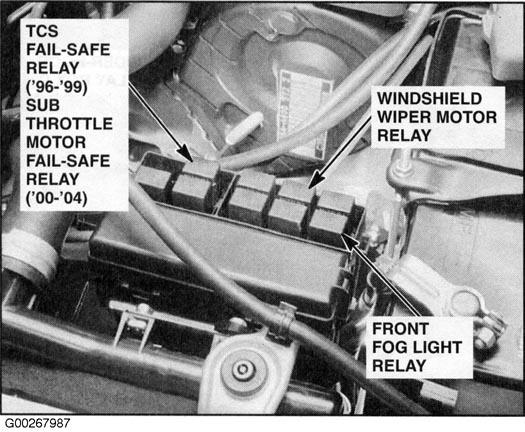

Fig 25: Under-Hood Relay Box C

G00267987

Courtesy of AMERICAN HONDA MOTOR CO., INC.

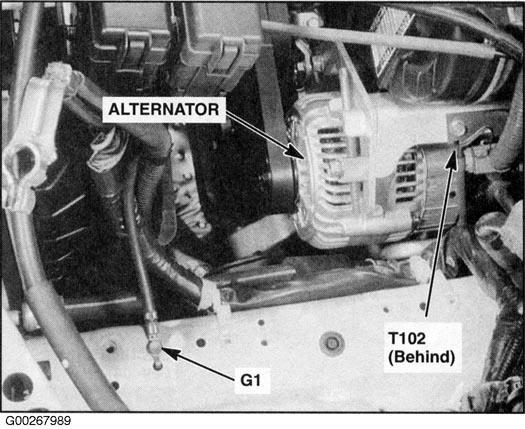

Fig 26: Front Of Engine Compartment (Battery Tray Removed)

G00267989

Courtesy of AMERICAN HONDA MOTOR CO., INC.

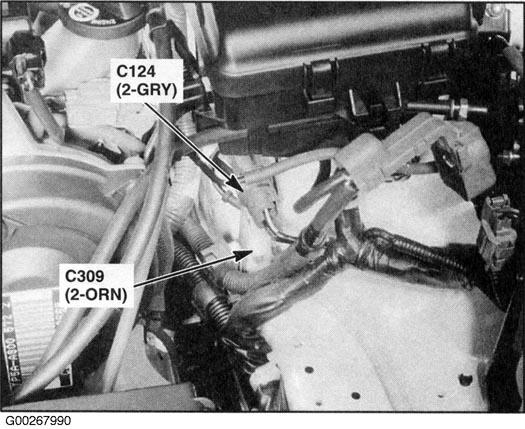

Fig 27: Left Side Of Engine Compartment

G00267990

Courtesy of AMERICAN HONDA MOTOR CO., INC.

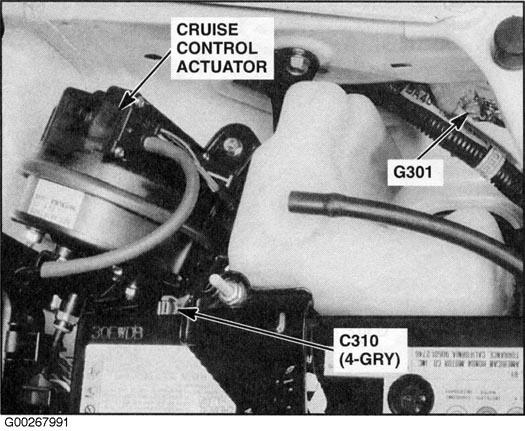

Fig 28: Left Front Corner Of Engine Compartment

G00267991

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Left Side Of Engine Compartment

G00267993

Courtesy of AMERICAN HONDA MOTOR CO., INC.

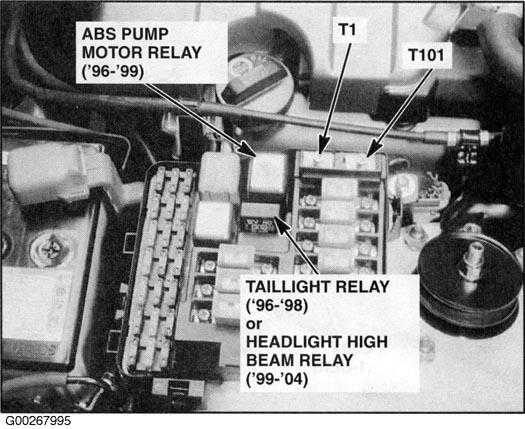

Fig 30: Under-Hood Fuse/Relay Box

G00267995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

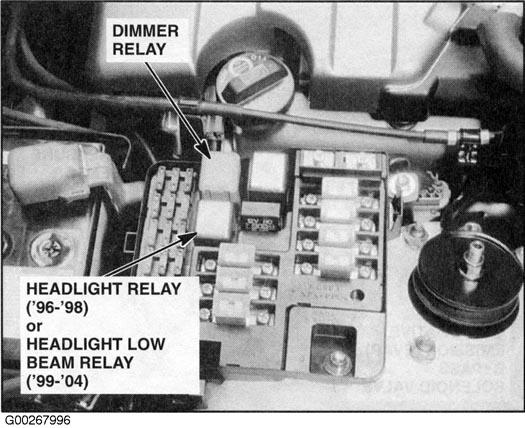

Fig 31: Under-Hood Fuse/Relay Box

G00267996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

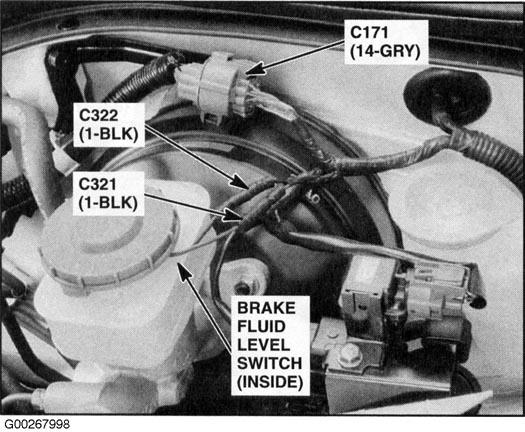

Fig 32: Left Rear Corner Of Engine Compartment

G00267998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

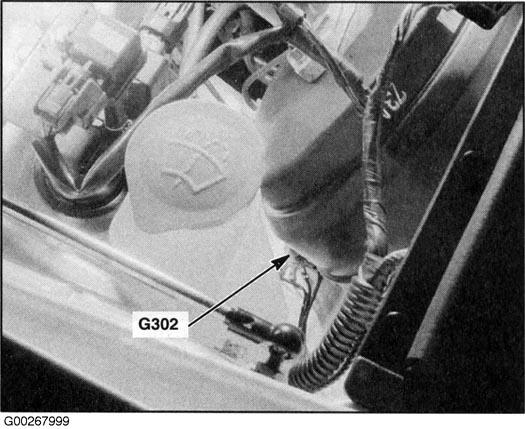

Fig 33: Left Rear Corner Of Engine Compartment

G00267999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

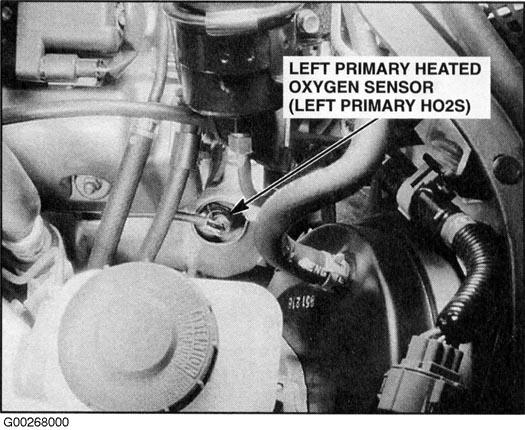

Fig 34: Left Rear Of Engine Compartment

G00268000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

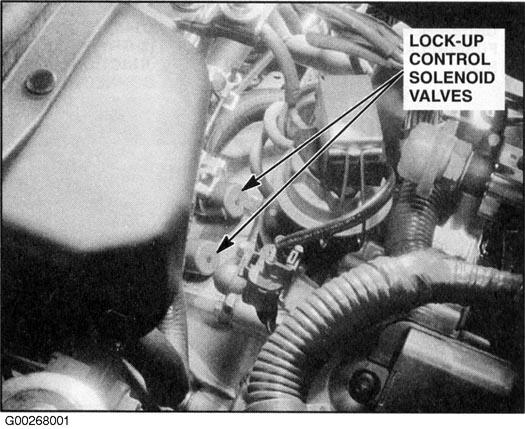

Fig 35: Right Rear Of Engine Compartment

G00268001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

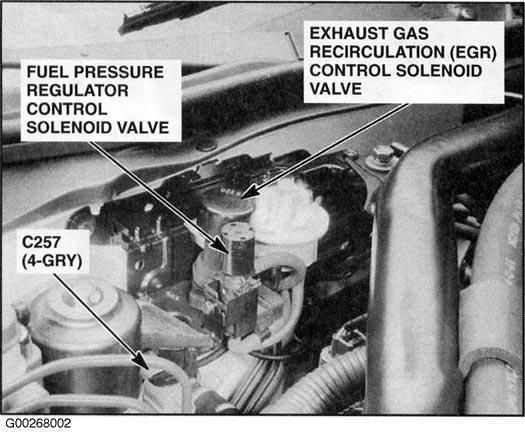

Fig 36: Right Rear Of Engine Compartment

G00268002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

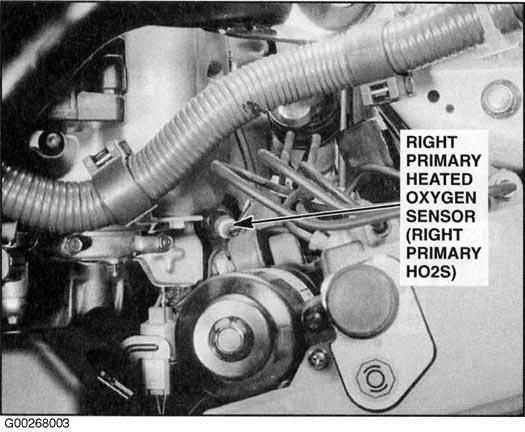

Fig 37: Right Rear Of Engine Compartment

G00268003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Right Rear Of Engine Compartment

G00268004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

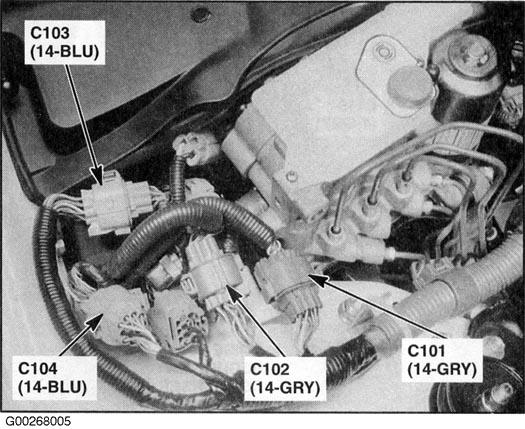

Fig 39: Right Rear Corner Of Engine Compartment

G00268005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Right Rear Corner Of Engine Compartment

G00268006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

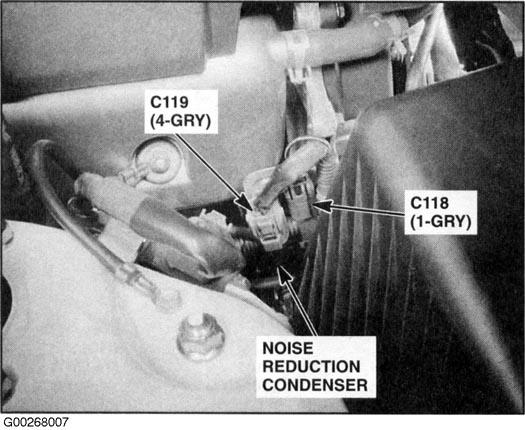

Fig 41: Right Side Of Engine Compartment

G00268007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

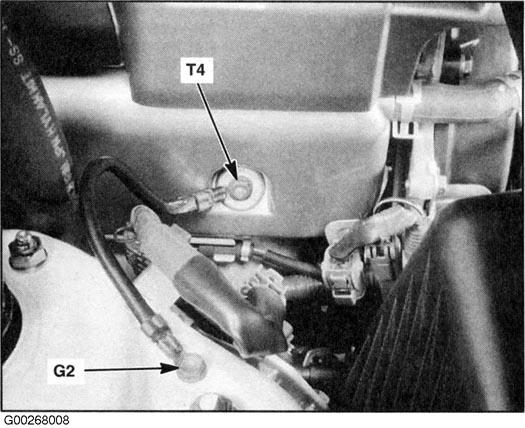

Fig 42: Right Side Of Engine Compartment

G00268008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Right Side Of Engine Compartment

G00268009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

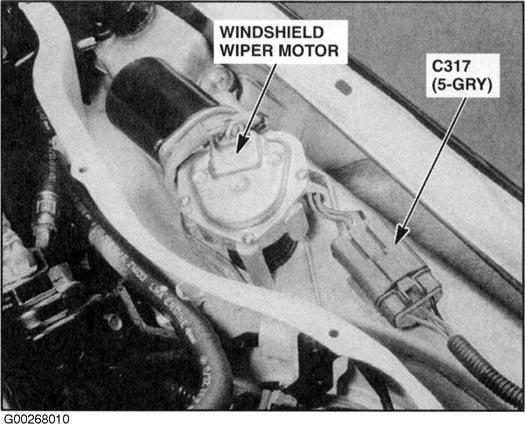

Fig 44: Under Cowl Cover

G00268010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

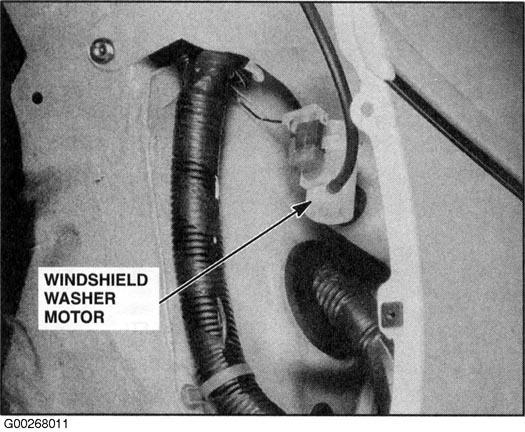

Fig 45: Left Inner Fender

G00268011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

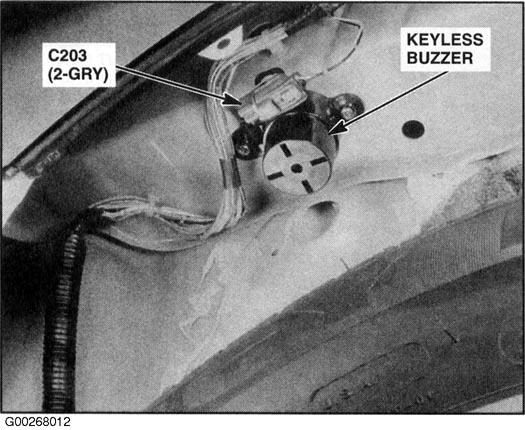

Fig 46: Right Inner Fender

G00268012

Courtesy of AMERICAN HONDA MOTOR CO., INC.

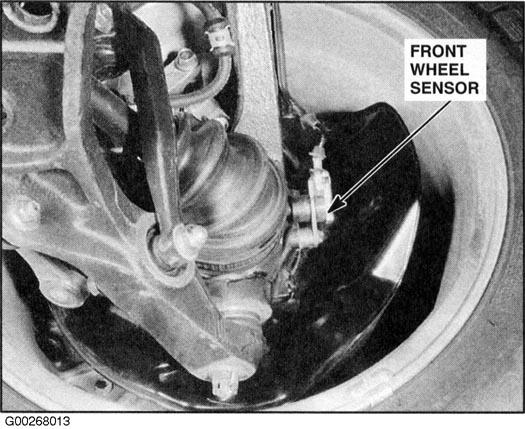

Fig 47: Left Front Wheel (Right Similar)

G00268013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

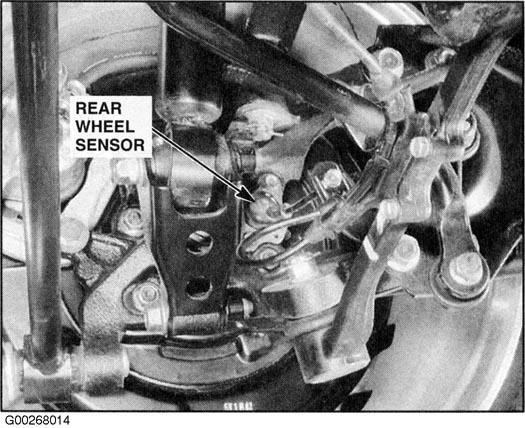

Fig 48: Left Rear Wheel (Right Similar)

G00268014

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Lower Right Side Of Radiator

G00268015

Courtesy of AMERICAN HONDA MOTOR CO., INC.

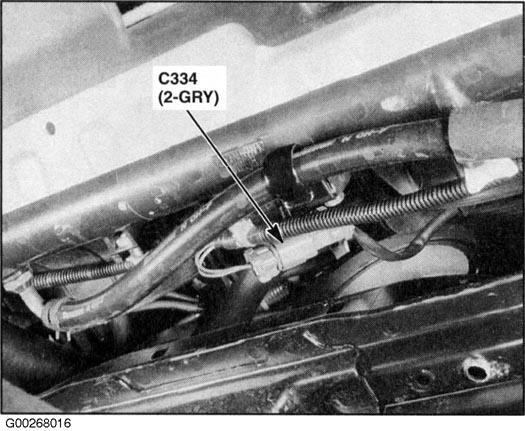

Fig 50: Lower Center Of Radiator

G00268016

Courtesy of AMERICAN HONDA MOTOR CO., INC.

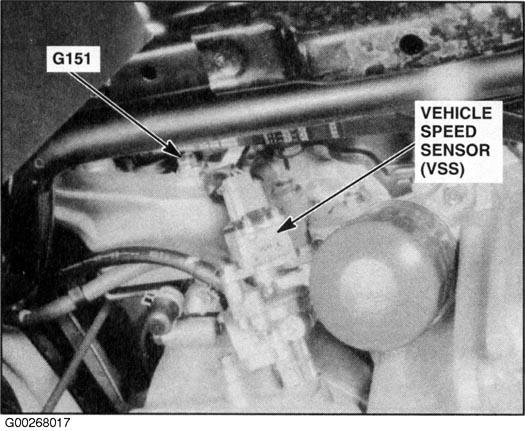

Fig 51: Lower Front Of Engine

G00268017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

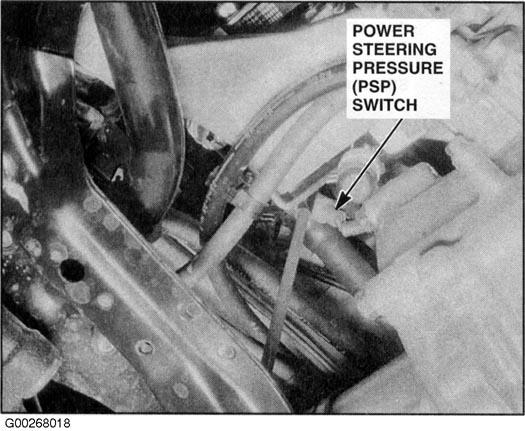

Fig 52: Lower Right Side Of Engine Compartment

G00268018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

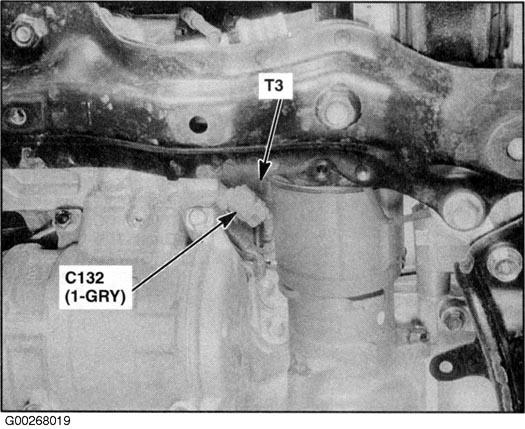

Fig 53: Lower Left Side Of Engine

G00268019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

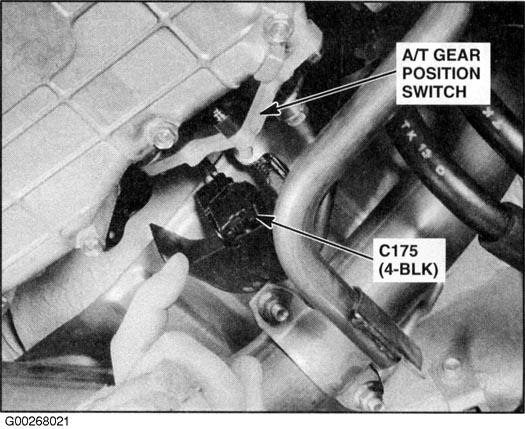

Fig 54: Left Side Of Transmission

G00268021

Courtesy of AMERICAN HONDA MOTOR CO., INC.

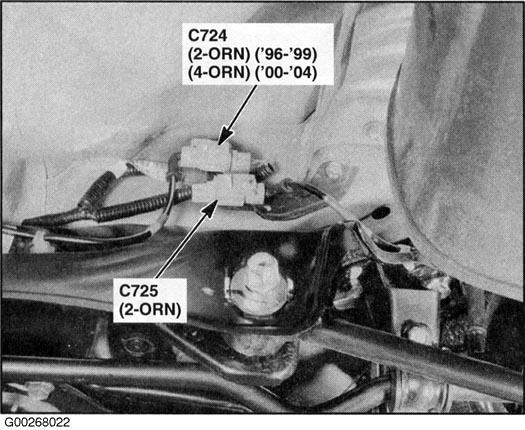

Fig 55: Right Side Of Rear Cross Beam

G00268022

Courtesy of AMERICAN HONDA MOTOR CO., INC.

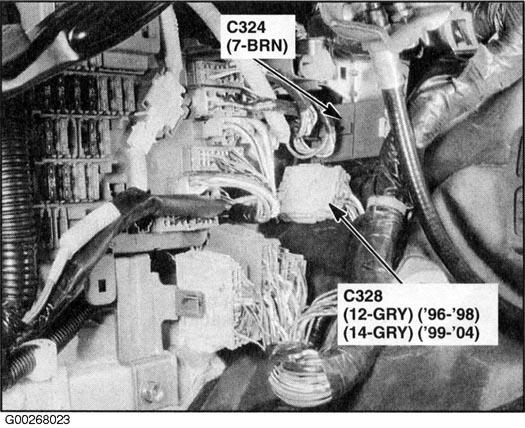

Fig 56: Left Kick Panel

G00268023

Courtesy of AMERICAN HONDA MOTOR CO., INC.

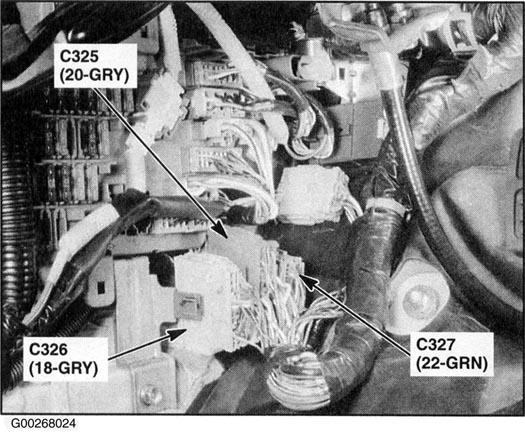

Fig 57: Left Kick Panel

G00268024

Courtesy of AMERICAN HONDA MOTOR CO., INC.

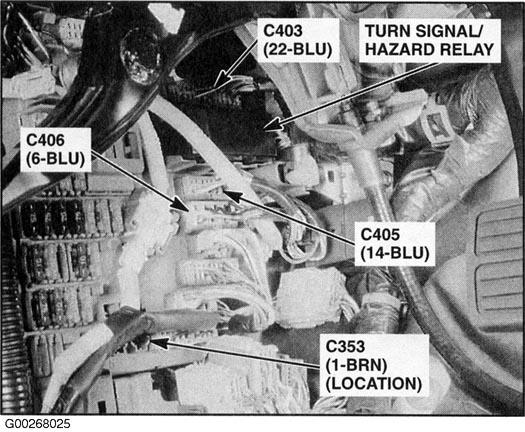

Fig 58: Left Kick Panel

G00268025

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Left Kick Panel

G00268026

Courtesy of AMERICAN HONDA MOTOR CO., INC.

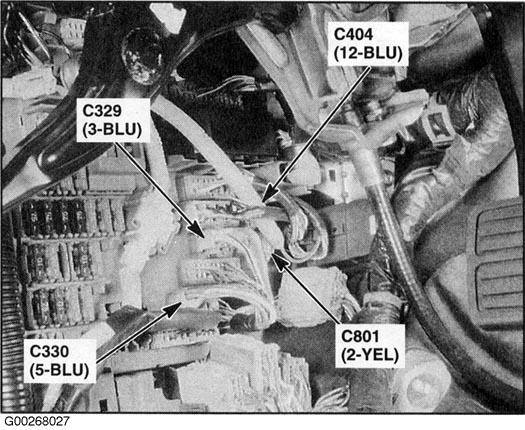

Fig 60: Left Kick Panel

G00268027

Courtesy of AMERICAN HONDA MOTOR CO., INC.

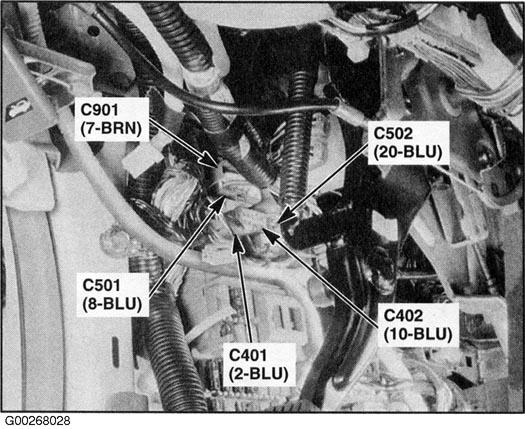

Fig 61: Left Kick Panel

G00268028

Courtesy of AMERICAN HONDA MOTOR CO., INC.

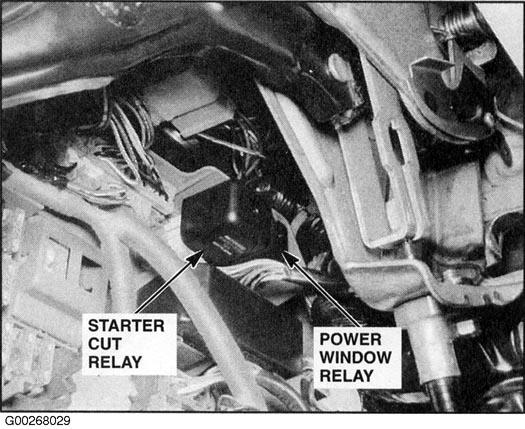

Fig 62: Left Kick Panel

G00268029

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Left Kick Panel

G00268030

Courtesy of AMERICAN HONDA MOTOR CO., INC.

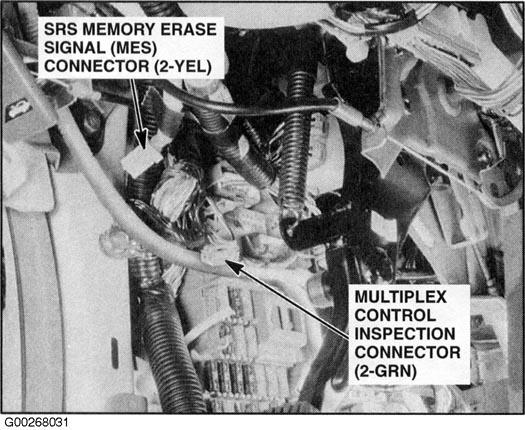

Fig 64: Left Kick Panel

G00268031

Courtesy of AMERICAN HONDA MOTOR CO., INC.

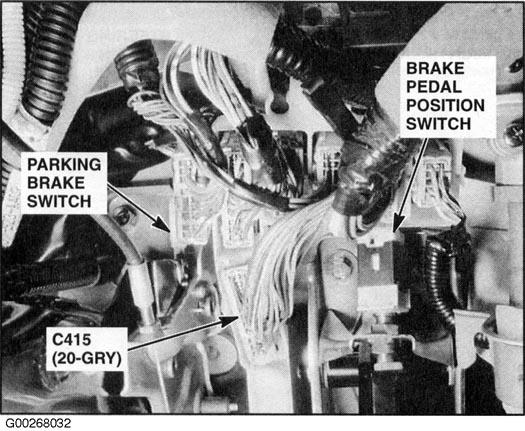

Fig 65: Left Side Of Dash

G00268032

Courtesy of AMERICAN HONDA MOTOR CO., INC.

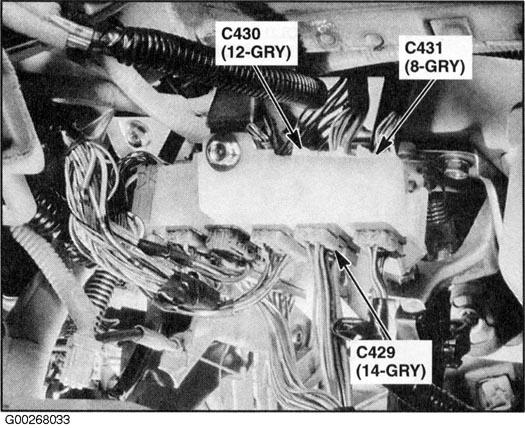

Fig 66: Left Side Of Dash

G00268033

Courtesy of AMERICAN HONDA MOTOR CO., INC.

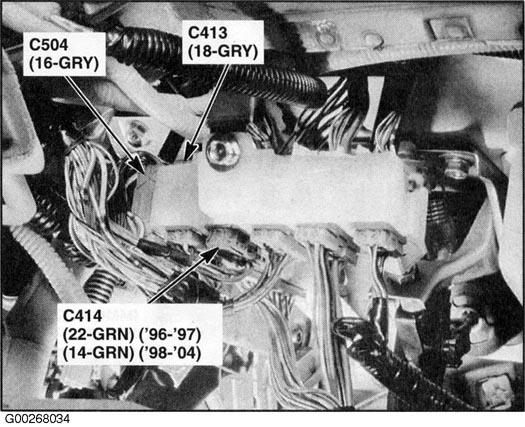

Fig 67: Left Side Of Steering Column

G00268034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Underside Of Steering Column

G00268035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

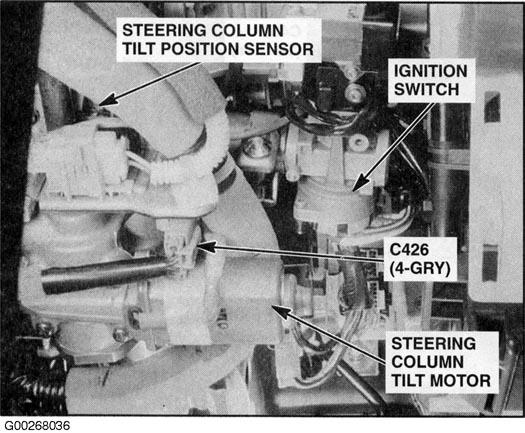

Fig 69: Underside Of Steering Column

G00268036

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Underside Of Steering Column

G00268037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

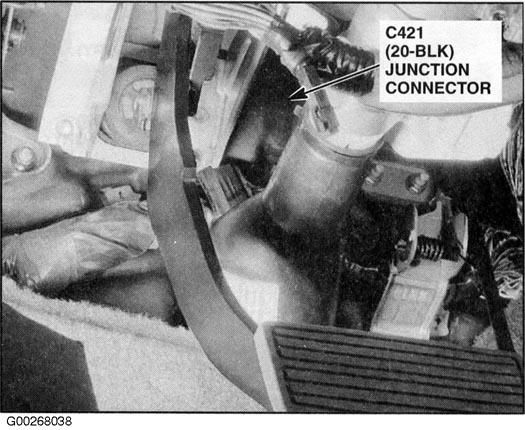

Fig 71: Base Of Steering Column

G00268038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

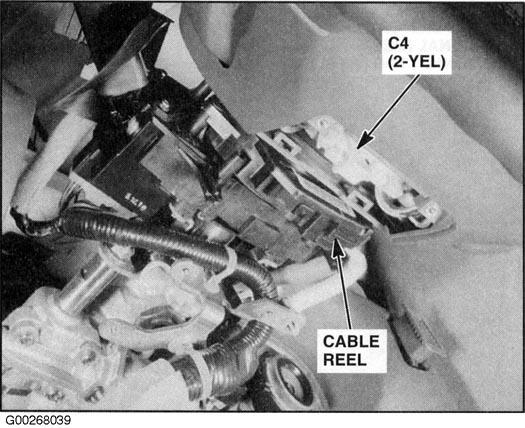

Fig 72: Underside Of Steering Wheel

G00268039

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Right Side Of Steering Column

G00268040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

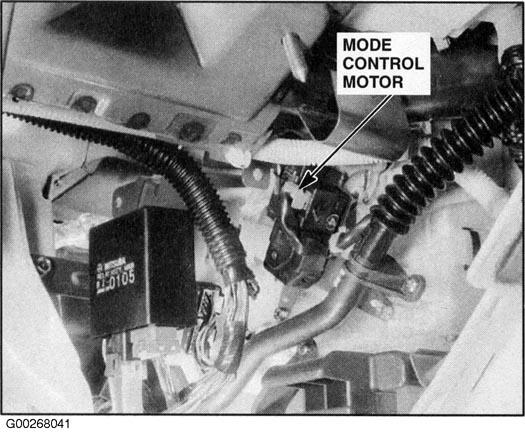

Fig 74: Right Side Of Steering Column

G00268041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

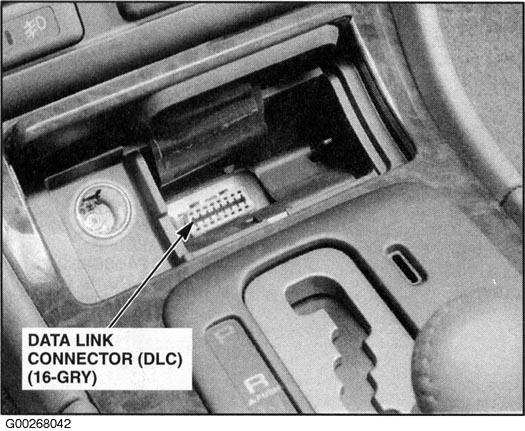

Fig 75: Front Console Panel

G00268042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

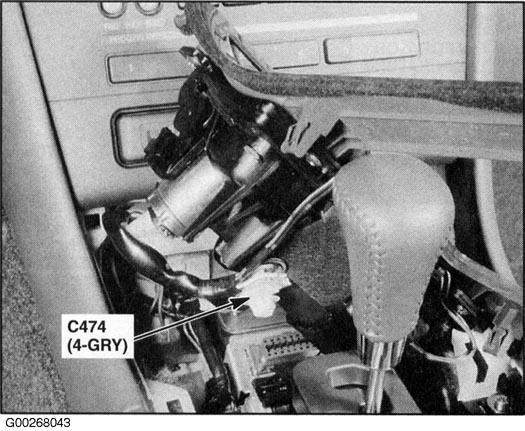

Fig 76: Front Console Panel

G00268043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

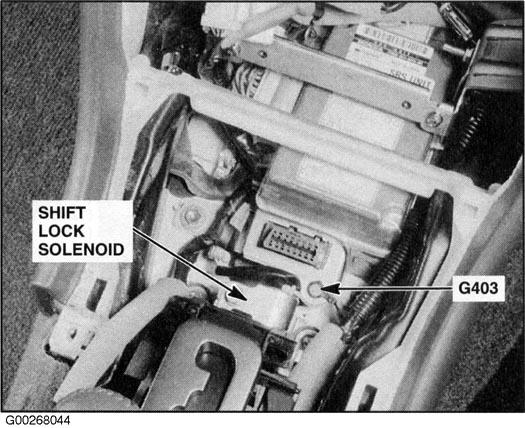

Fig 77: Front Console Panel

G00268044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

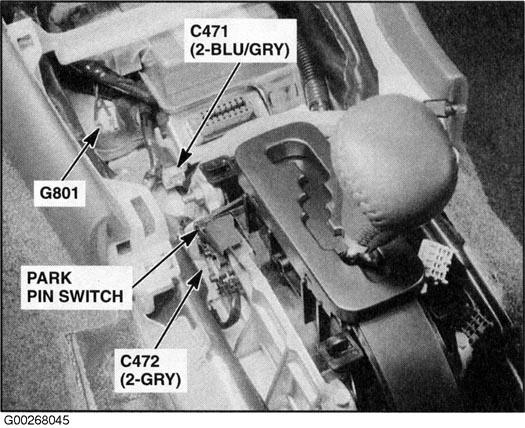

Fig 78: Front Console Panel

G00268045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

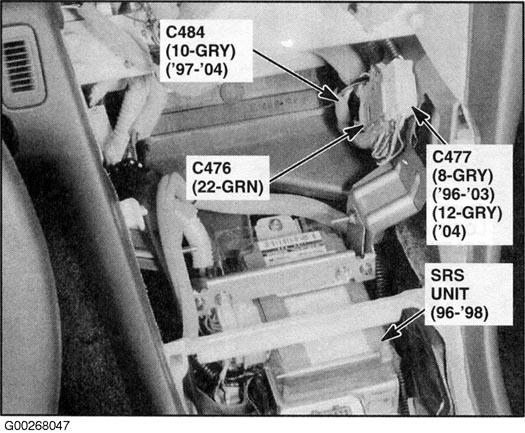

Fig 79: Center Of Dash

G00268047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

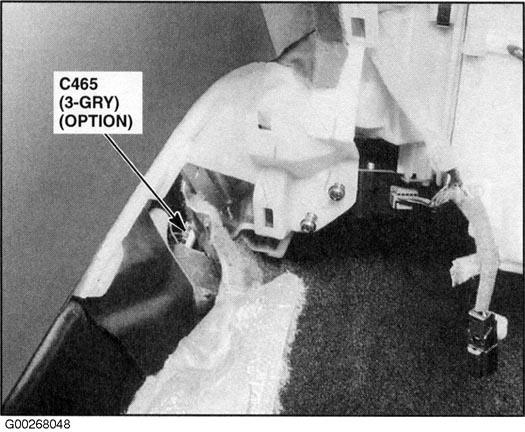

Fig 80: Right Front Side Of Console (Carpet Pulled Back)

G00268048

Courtesy of AMERICAN HONDA MOTOR CO., INC.

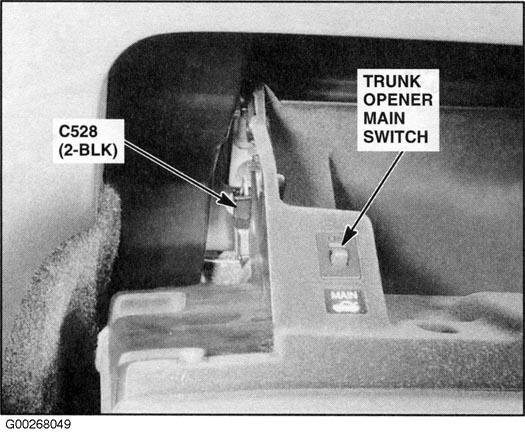

Fig 81: Left Side Of Glove Box

G00268049

Courtesy of AMERICAN HONDA MOTOR CO., INC.

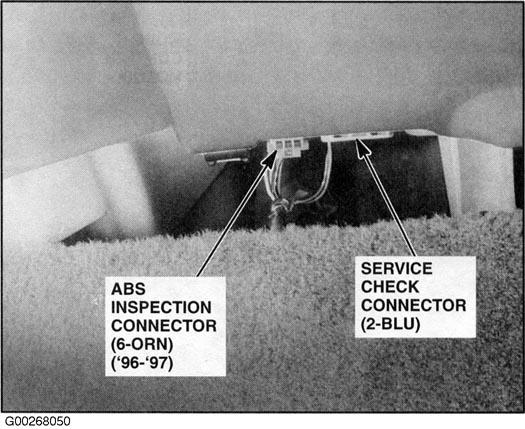

Fig 82: Right Side Of Dash

G00268050

Courtesy of AMERICAN HONDA MOTOR CO., INC.

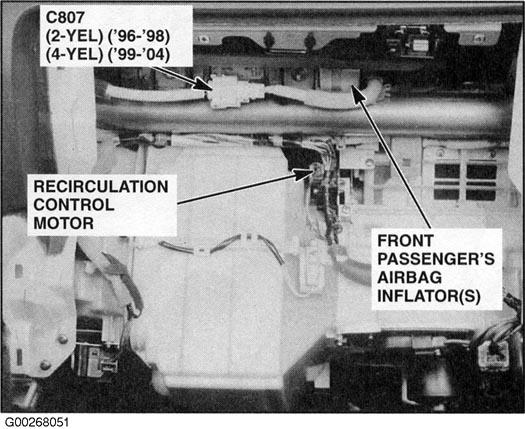

Fig 83: Behind Glove Box

G00268051

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Behind Glove Box

G00268052

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Right Side Of Dash

G00268053

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Right Side Of Dash

G00268054

Courtesy of AMERICAN HONDA MOTOR CO., INC.

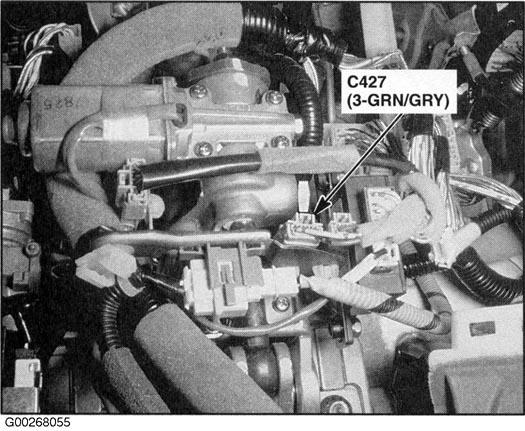

Fig 87: Steering Column

G00268055

Courtesy of AMERICAN HONDA MOTOR CO., INC.

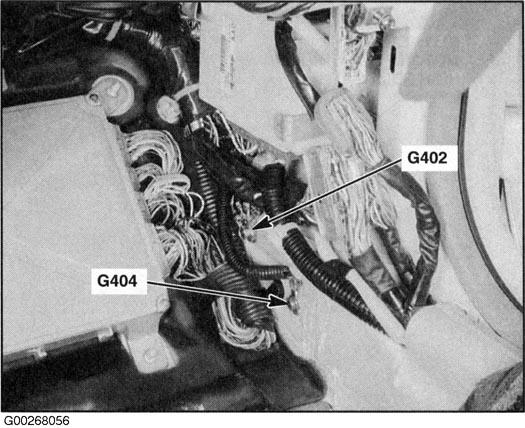

Fig 88: Right Kick Panel

G00268056

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Right Kick Panel

G00268057

Courtesy of AMERICAN HONDA MOTOR CO., INC.

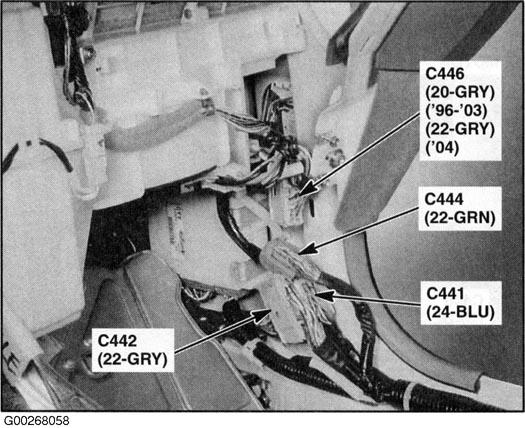

Fig 90: Right Kick Panel

G00268058

Courtesy of AMERICAN HONDA MOTOR CO., INC.

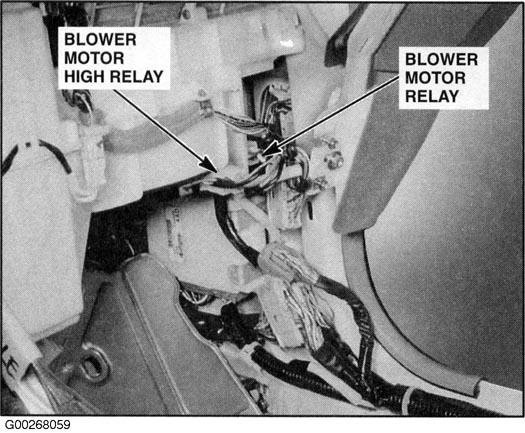

Fig 91: Right Side Of Glove Box

G00268059

Courtesy of AMERICAN HONDA MOTOR CO., INC.

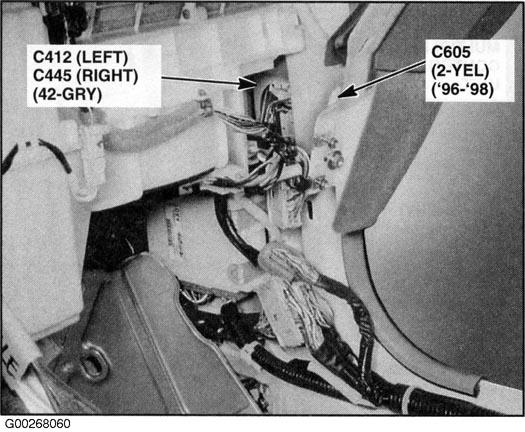

Fig 92: Right Kick Panel (Left Similar)

G00268060

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Right Kick Panel

G00268061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Right Side Of Dash

G00268062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

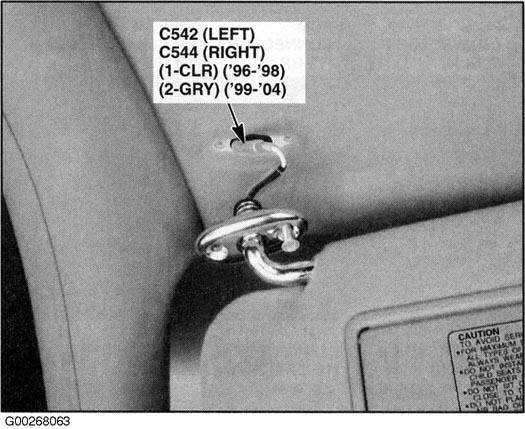

Fig 95: Top Left "A" Pillar

G00268063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

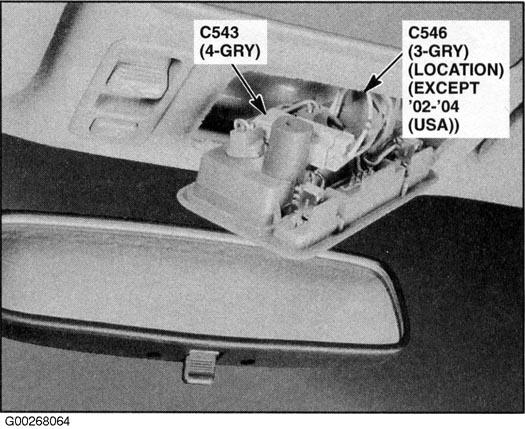

Fig 96: Center Front Of Roof

G00268064

Courtesy of AMERICAN HONDA MOTOR CO., INC.

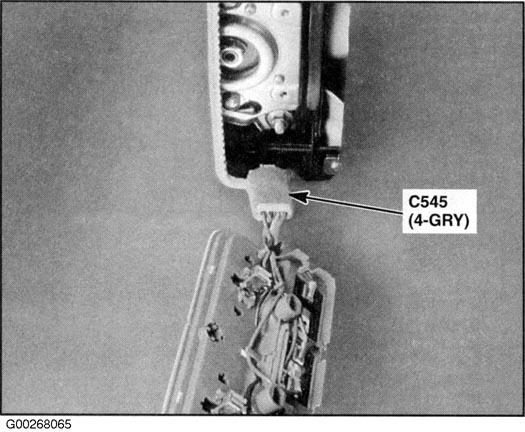

Fig 97: Center Rear Of Roof

G00268065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

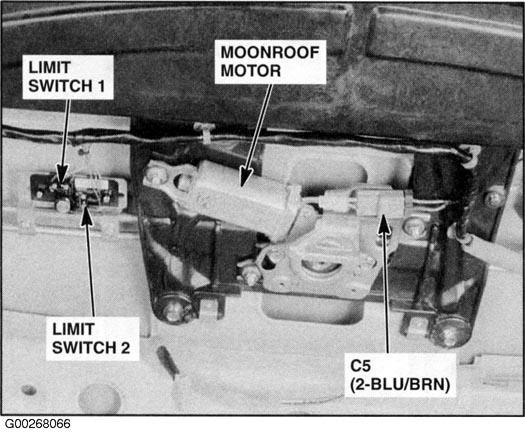

Fig 98: Center Rear Of Roof

G00268066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Center Rear Of Roof

G00268067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

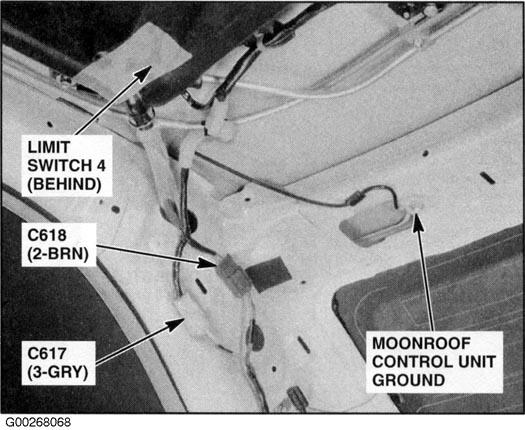

Fig 100: Right Rear Of Roof

G00268068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

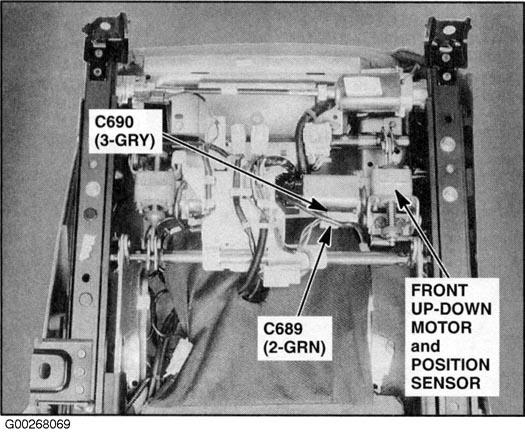

Fig 101: Underside Of Driver's Seat

G00268069

Courtesy of AMERICAN HONDA MOTOR CO., INC.

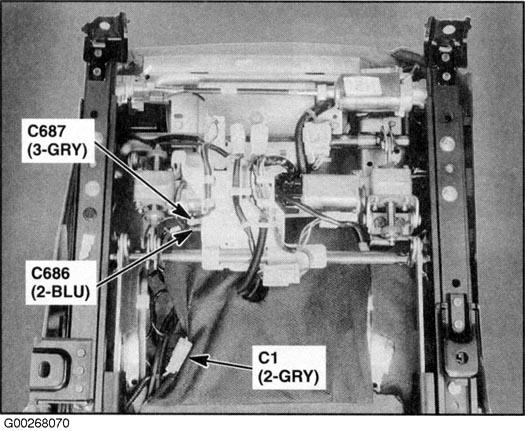

Fig 102: Underside Of Driver's Seat

G00268070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

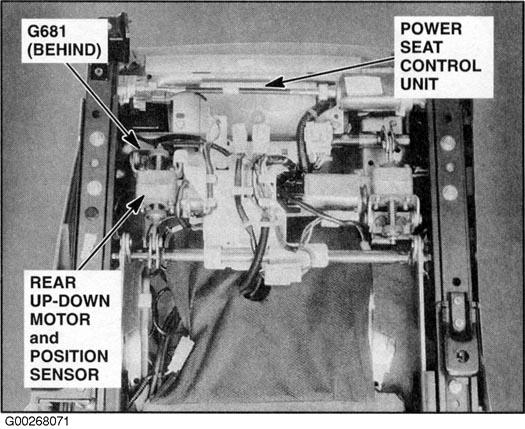

Fig 103: Underside Of Driver's Seat

G00268071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

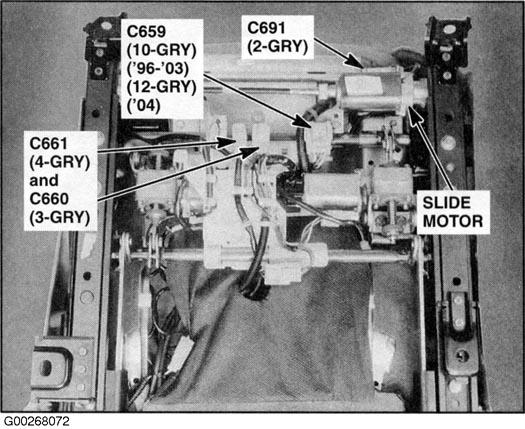

Fig 104: Underside Of Driver's Seat

G00268072

Courtesy of AMERICAN HONDA MOTOR CO., INC.

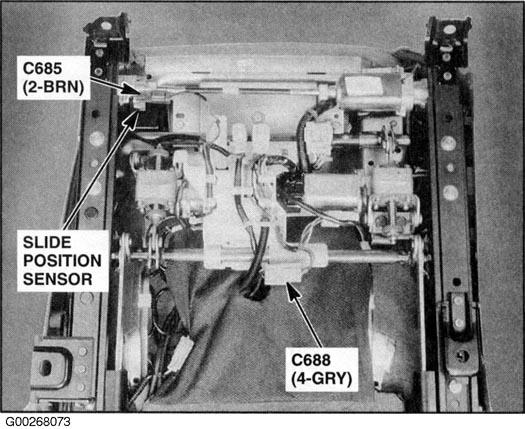

Fig 105: Underside Of Driver's Seat

G00268073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

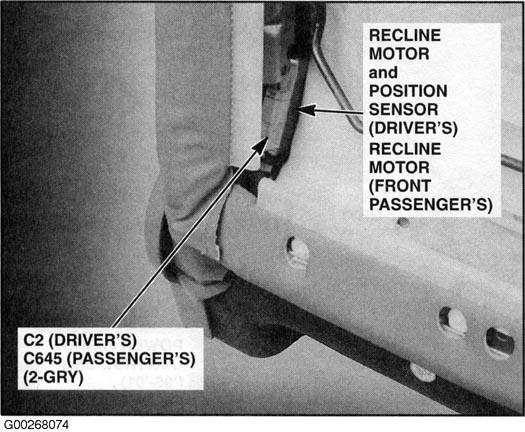

Fig 106: Inside Driver's Seat-Back (Passenger's Similar)

G00268074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

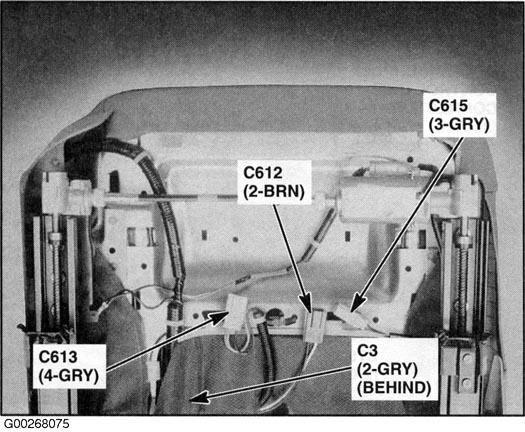

Fig 107: Underside Of Front Passenger's Seat

G00268075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

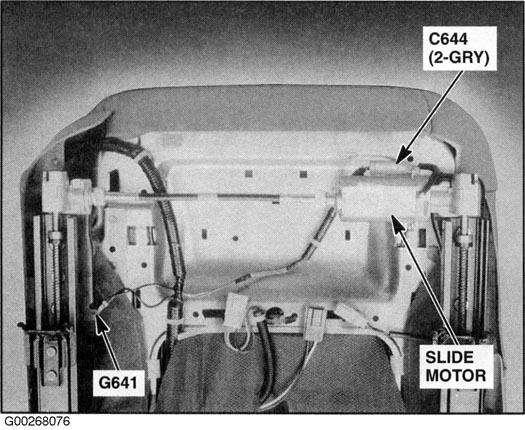

Fig 108: Underside Of Front Passenger's Seat

G00268076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

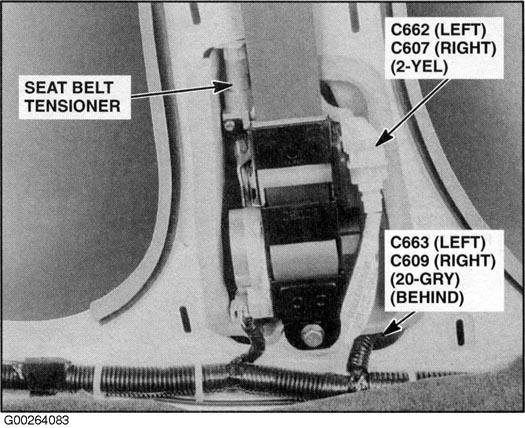

Fig 109: Left "B" Pillar

G00264083

Courtesy of AMERICAN HONDA MOTOR CO., INC.

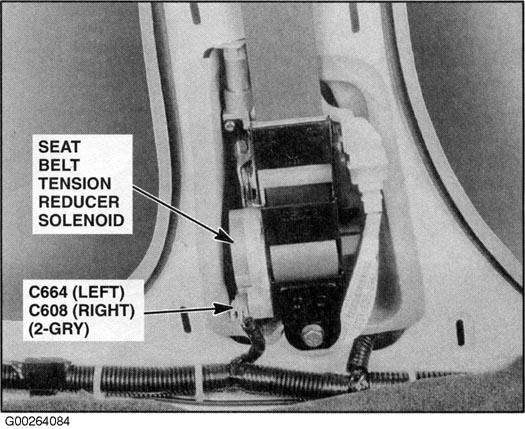

Fig 110: Left Center Pillar (Right Similar)

G00264084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Below Left Rear Side Trim (Right Similar)

G00264085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

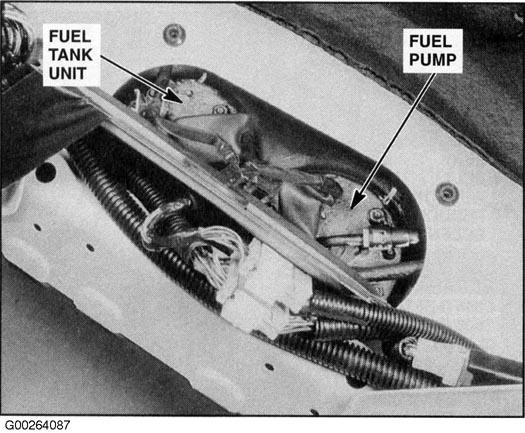

Fig 112: Behind Center Of Rear Seat

G00264087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

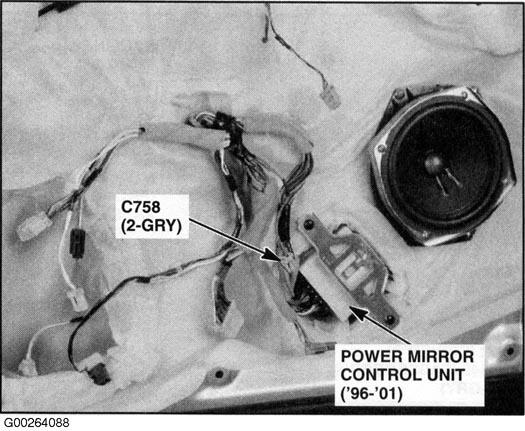

Fig 113: Driver's Door

G00264088

Courtesy of AMERICAN HONDA MOTOR CO., INC.

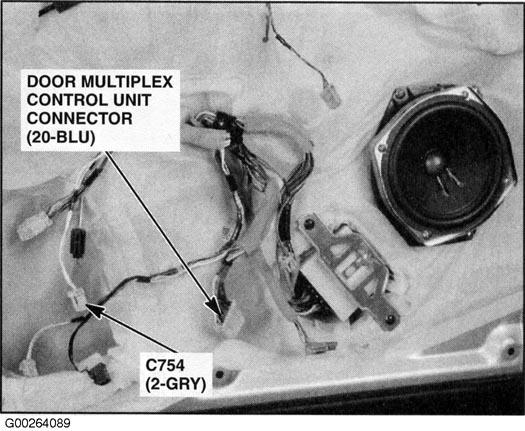

Fig 114: Driver's Door

G00264089

Courtesy of AMERICAN HONDA MOTOR CO., INC.

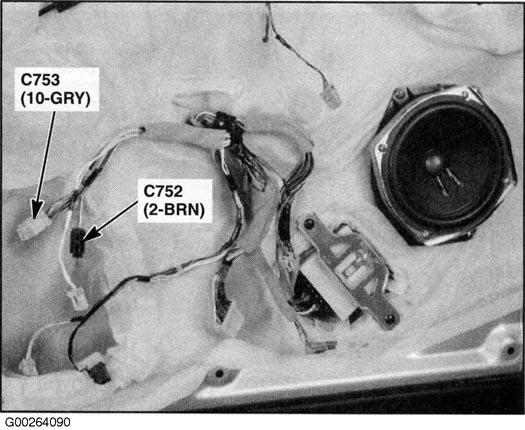

Fig 115: Driver's Door

G00264090

Courtesy of AMERICAN HONDA MOTOR CO., INC.

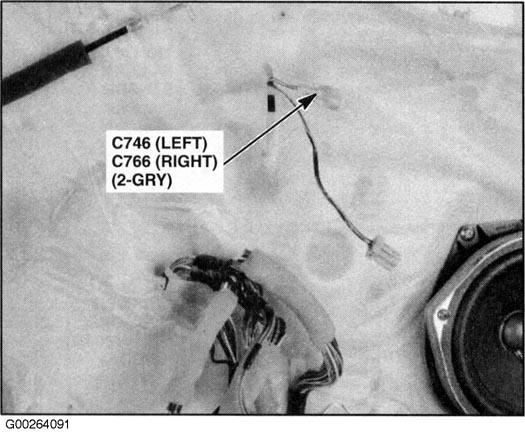

Fig 116: Driver's Door (W/O Bose) (Front Passenger Similar)

G00264091

Courtesy of AMERICAN HONDA MOTOR CO., INC.

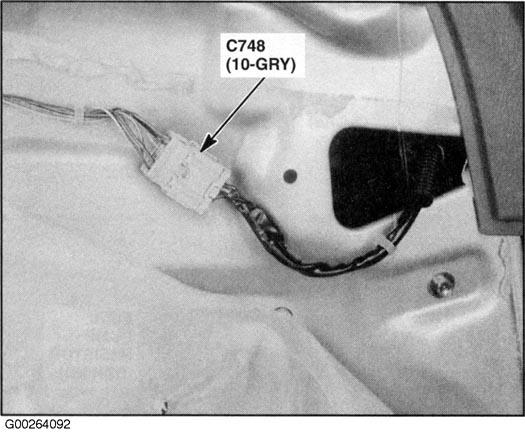

Fig 117: Driver's Door

G00264092

Courtesy of AMERICAN HONDA MOTOR CO., INC.

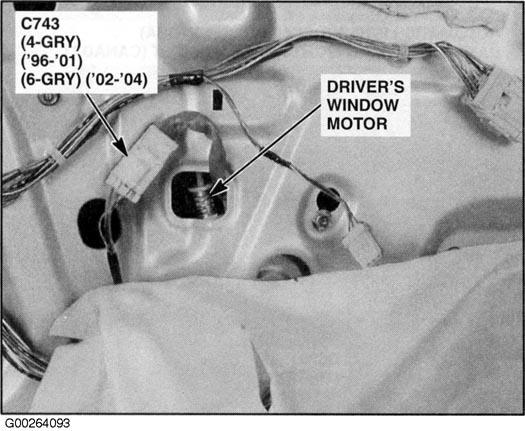

Fig 118: Driver's Door

G00264093

Courtesy of AMERICAN HONDA MOTOR CO., INC.

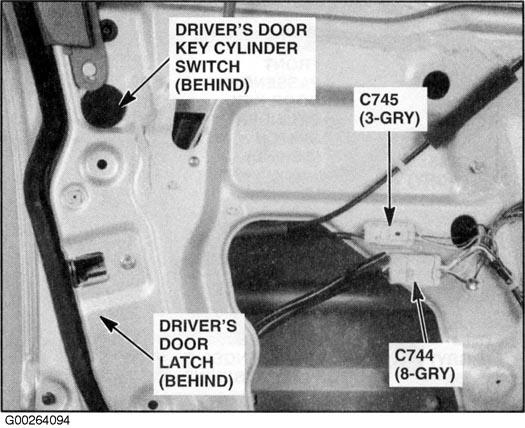

Fig 119: Driver's Door

G00264094

Courtesy of AMERICAN HONDA MOTOR CO., INC.

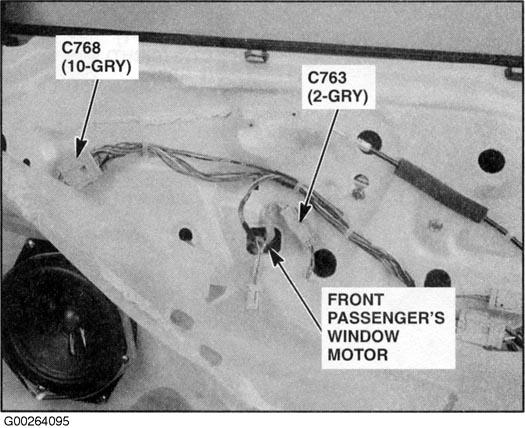

Fig 120: Front Passenger's Door

G00264095

Courtesy of AMERICAN HONDA MOTOR CO., INC.

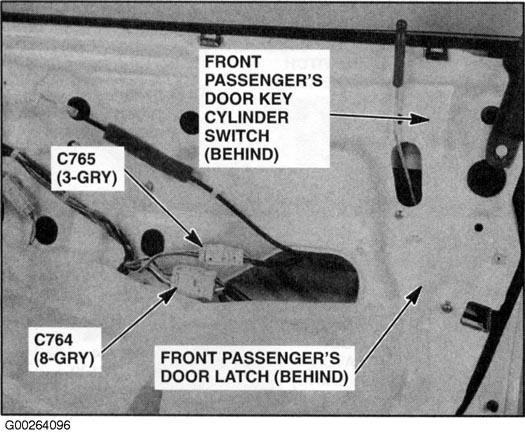

Fig 121: Front Passenger's Door

G00264096

Courtesy of AMERICAN HONDA MOTOR CO., INC.

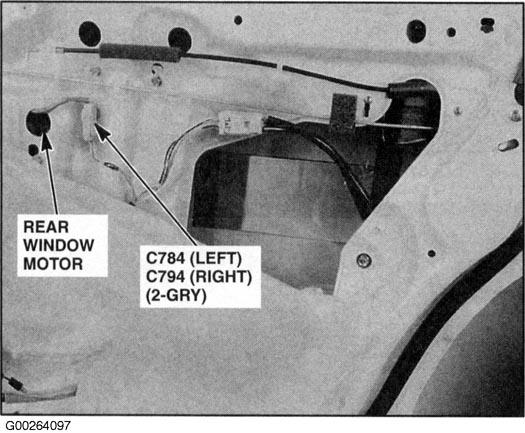

Fig 122: Right Rear Door (Left Similar)

G00264097

Courtesy of AMERICAN HONDA MOTOR CO., INC.

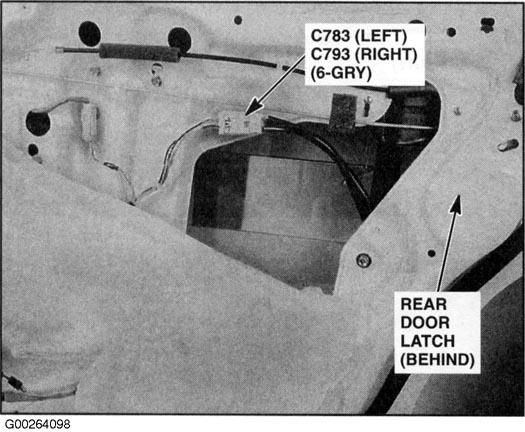

Fig 123: Right Rear Door (Left Similar)

G00264098

Courtesy of AMERICAN HONDA MOTOR CO., INC.

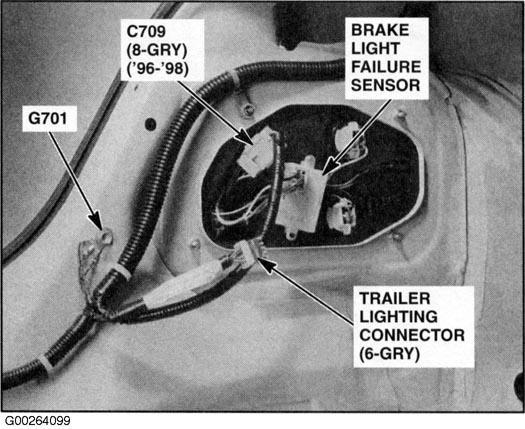

Fig 124: Left Rear Corner Of Trunk

G00264099

Courtesy of AMERICAN HONDA MOTOR CO., INC.

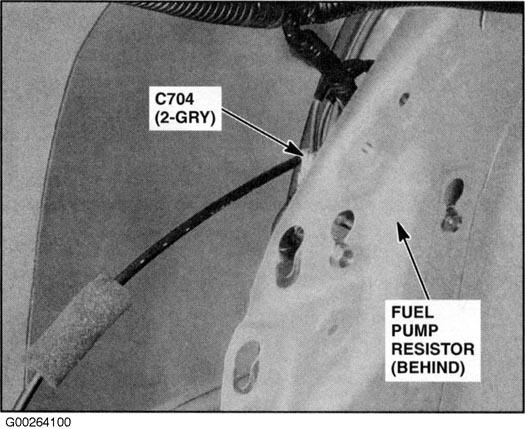

Fig 125: Left Side Of Trunk

G00264100

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Left Front Corner Of Trunk

G00264101

Courtesy of AMERICAN HONDA MOTOR CO., INC.

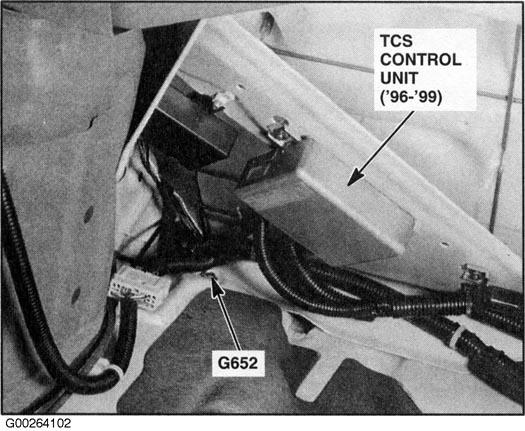

Fig 127: Left Front Corner Of Trunk

G00264102

Courtesy of AMERICAN HONDA MOTOR CO., INC.

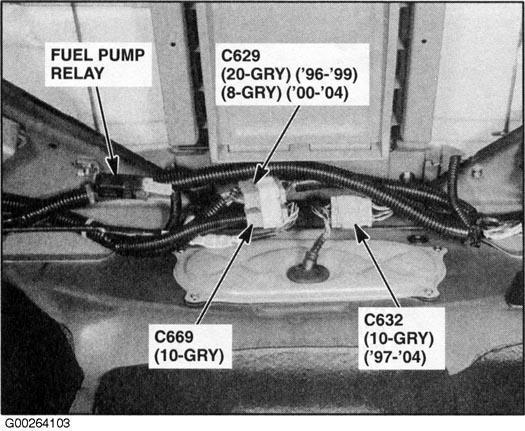

Fig 128: Front Of Trunk

G00264103

Courtesy of AMERICAN HONDA MOTOR CO., INC.

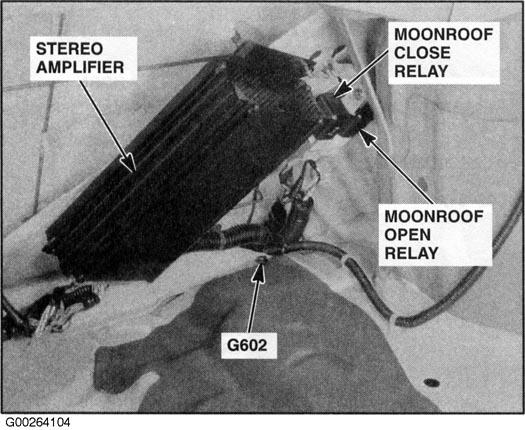

Fig 129: Right Front Corner Of Trunk

G00264104

Courtesy of AMERICAN HONDA MOTOR CO., INC.

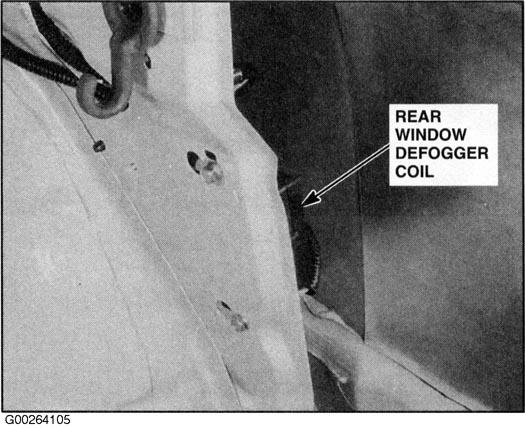

Fig 130: Right Side Of Trunk

G00264105

Courtesy of AMERICAN HONDA MOTOR CO., INC.

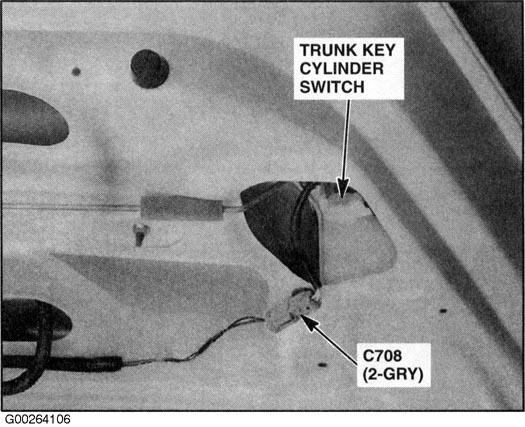

Fig 131: Right Underside Of Trunk Lid

G00264106

Courtesy of AMERICAN HONDA MOTOR CO., INC.

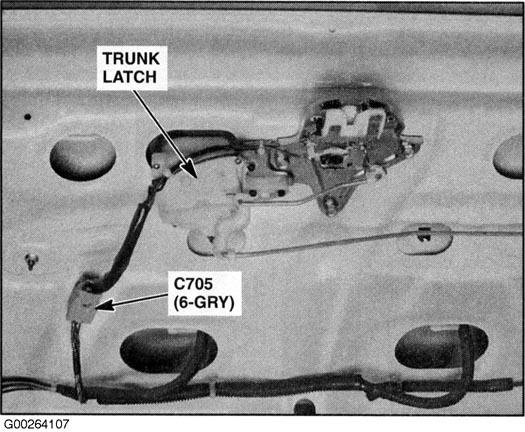

Fig 132: Underside Of Trunk Lid

G00264107

Courtesy of AMERICAN HONDA MOTOR CO., INC.

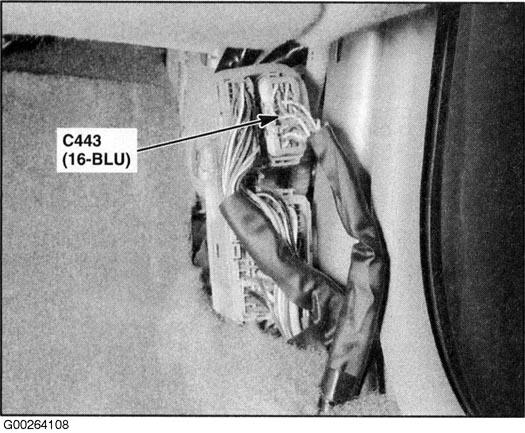

Fig 133: Behind Right Kick Panel

G00264108

Courtesy of AMERICAN HONDA MOTOR CO., INC.

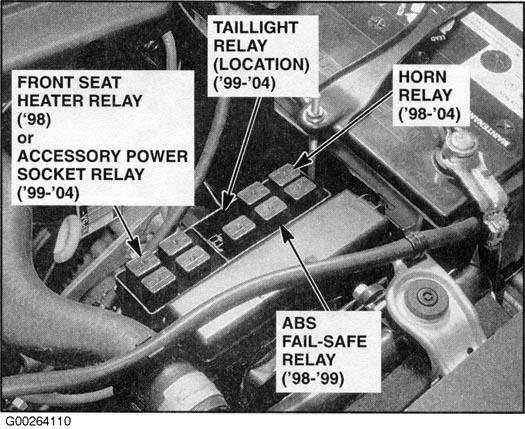

Fig 134: Left Front Of Engine Compartment

G00264110

Courtesy of AMERICAN HONDA MOTOR CO., INC.

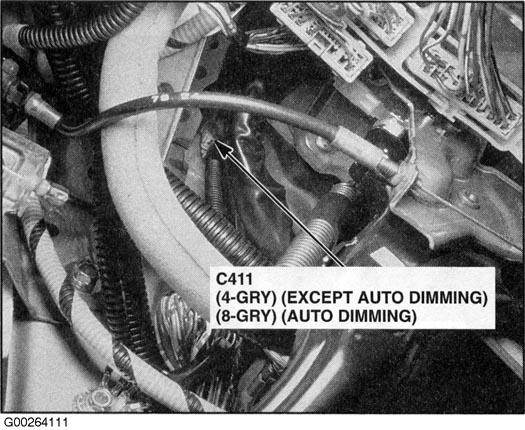

Fig 135: Left Side Of Dash

G00264111

Courtesy of AMERICAN HONDA MOTOR CO., INC.

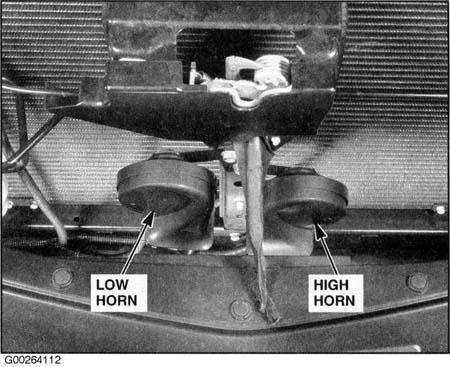

Fig 136: Behind Front Grille

G00264112

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Left Kick Panel

G00264114

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 138: Behind Left Kick Panel (Back Of Fuse Box)

G00264115

Courtesy of AMERICAN HONDA MOTOR CO., INC.

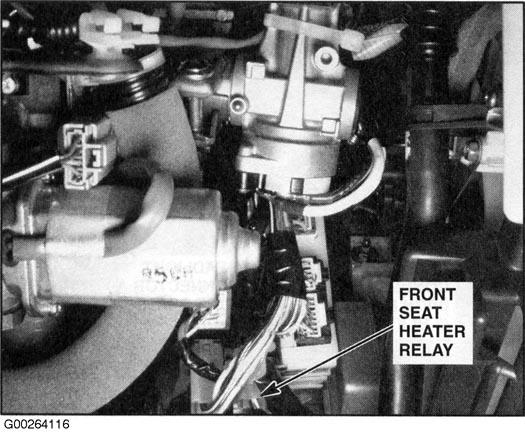

Fig 139: Right Of Steering Column

G00264116

Courtesy of AMERICAN HONDA MOTOR CO., INC.

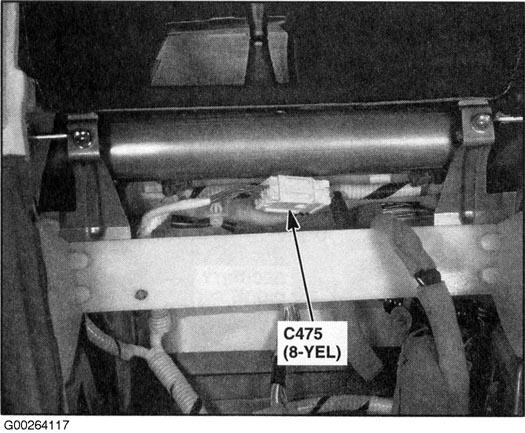

Fig 140: Center Of Dash

G00264117

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Behind Audio Unit

G00264118

Courtesy of AMERICAN HONDA MOTOR CO., INC.

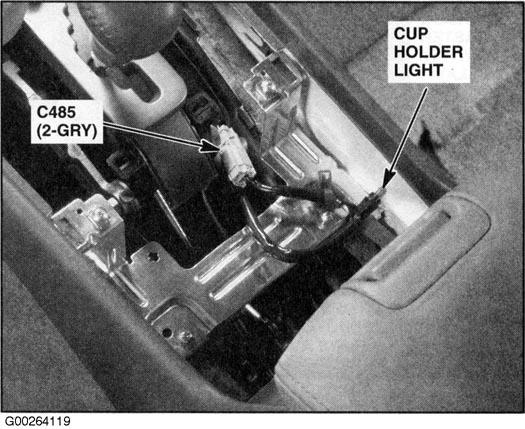

Fig 142: Below Front Console Panel

G00264119

Courtesy of AMERICAN HONDA MOTOR CO., INC.

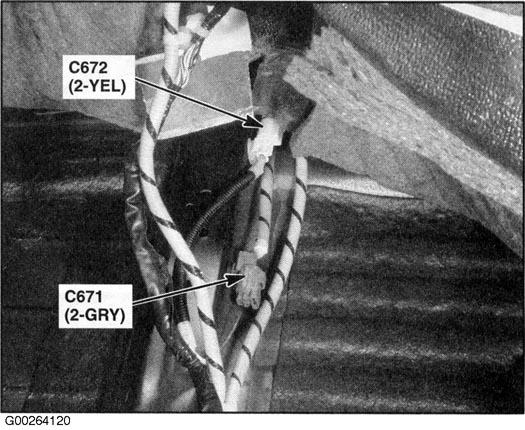

Fig 143: Bottom Of Driver's Seat

G00264120

Courtesy of AMERICAN HONDA MOTOR CO., INC.

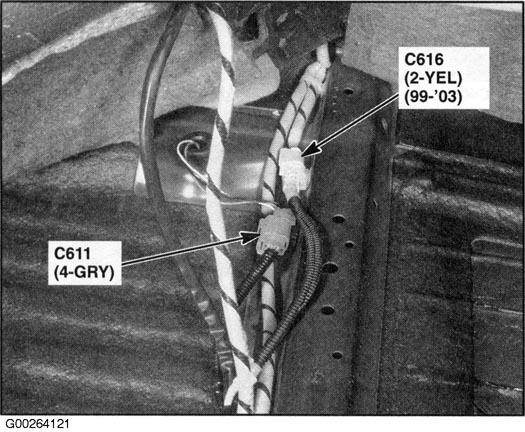

Fig 144: Underneath Front Passenger's Seat

G00264121

Courtesy of AMERICAN HONDA MOTOR CO., INC.

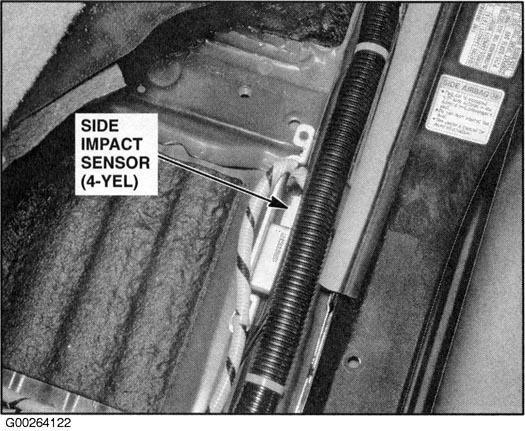

Fig 145: Below Left Front Side Trim (Right Similar)

G00264122

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 146: Below Left Front Side Trim (Right Similar)

G00264123

Courtesy of AMERICAN HONDA MOTOR CO., INC.

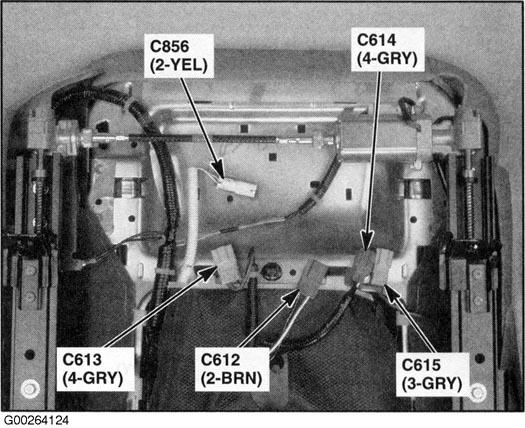

Fig 147: Underside Of Front Passenger's Seat

G00264124

Courtesy of AMERICAN HONDA MOTOR CO., INC.

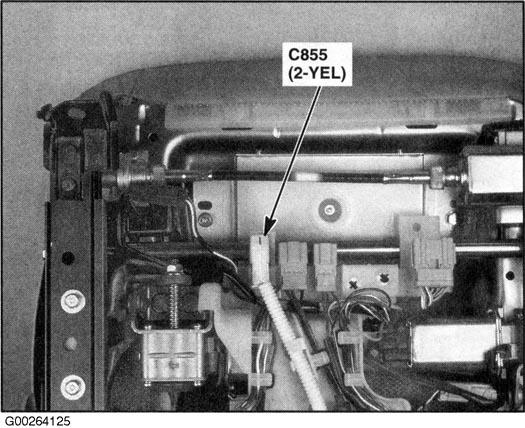

Fig 148: Underside Of Driver's Seat

G00264125

Courtesy of AMERICAN HONDA MOTOR CO., INC.

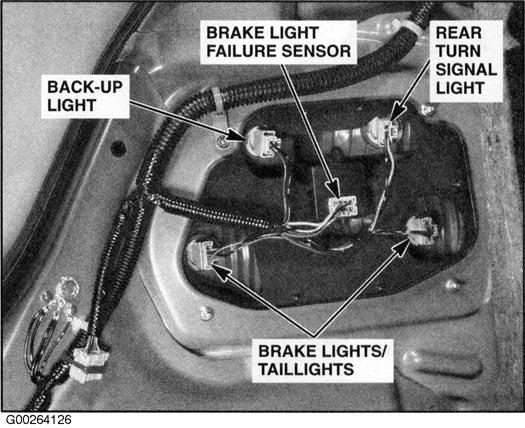

Fig 149: Left Rear Corner Of Trunk (Right Similar)

G00264126

Courtesy of AMERICAN HONDA MOTOR CO., INC.

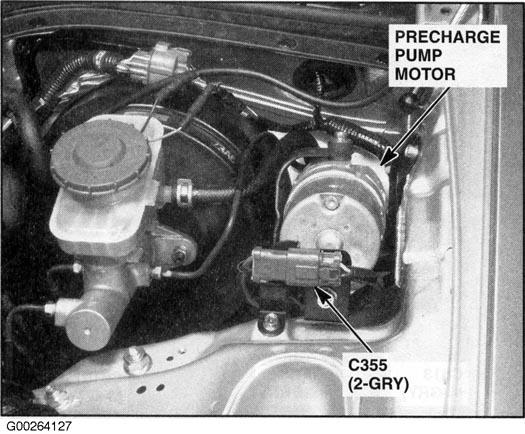

Fig 150: Left Rear Of Engine Compartment

G00264127

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 151: Right Rear Of Engine Compartment

G00264128

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 152: Right Kick Panel

G00264129

Courtesy of AMERICAN HONDA MOTOR CO., INC.

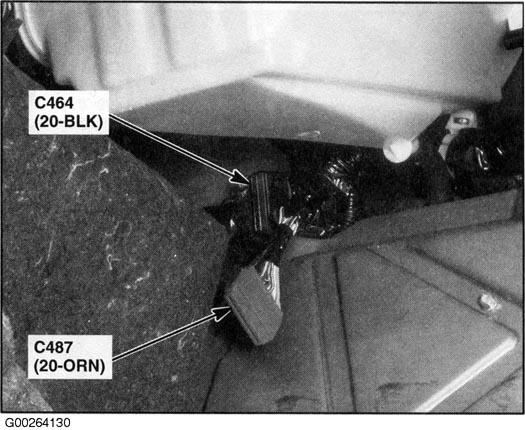

Fig 153: Left Side Of Front Passenger Floor Pan

G00264130

Courtesy of AMERICAN HONDA MOTOR CO., INC.

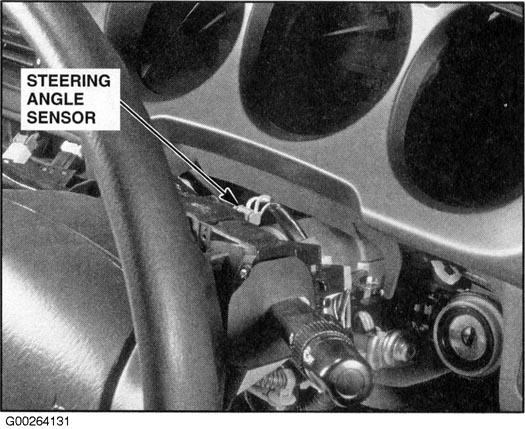

Fig 154: Top Of Steering Column

G00264131

Courtesy of AMERICAN HONDA MOTOR CO., INC.

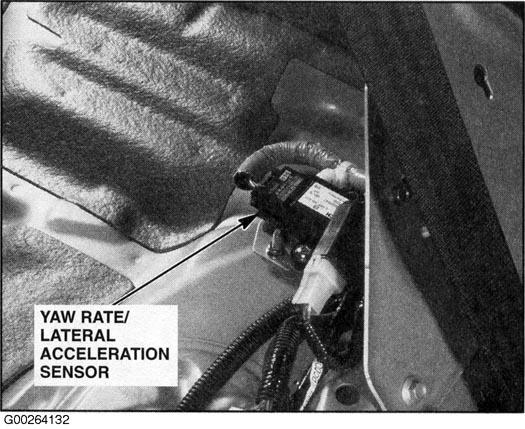

Fig 155: Left Side Of Rear Seat

G00264132

Courtesy of AMERICAN HONDA MOTOR CO., INC.

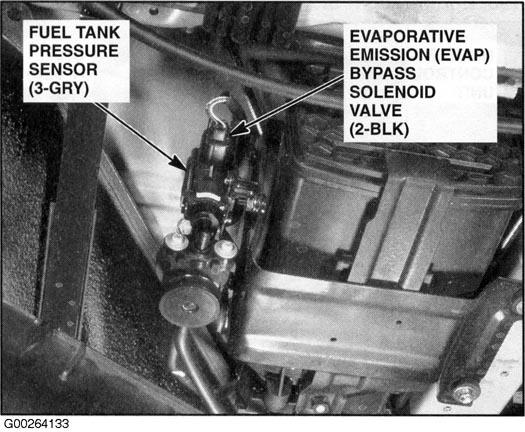

Fig 156: Left Rear Underside Of Vehicle

G00264133

Courtesy of AMERICAN HONDA MOTOR CO., INC.

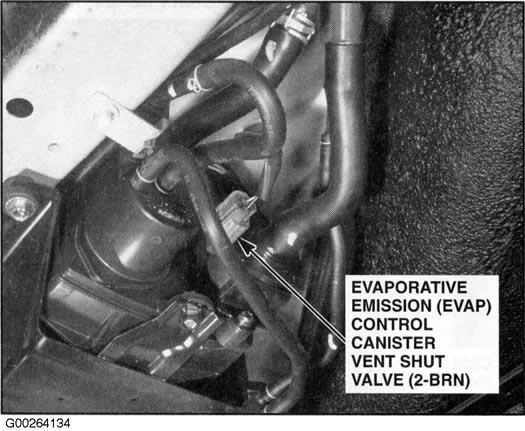

Fig 157: Left Rear Underside Of Vehicle

G00264134

Courtesy of AMERICAN HONDA MOTOR CO., INC.

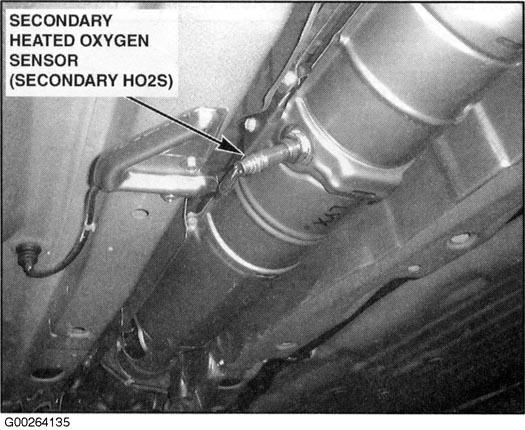

Fig 158: Catalytic Converter

G00264135

Courtesy of AMERICAN HONDA MOTOR CO., INC.

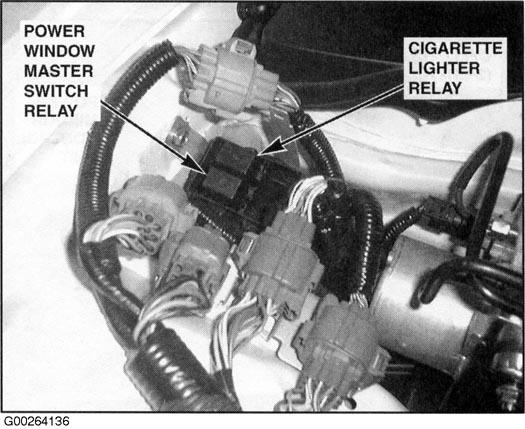

Fig 159: Underhood Relay Box B

G00264136

Courtesy of AMERICAN HONDA MOTOR CO., INC.

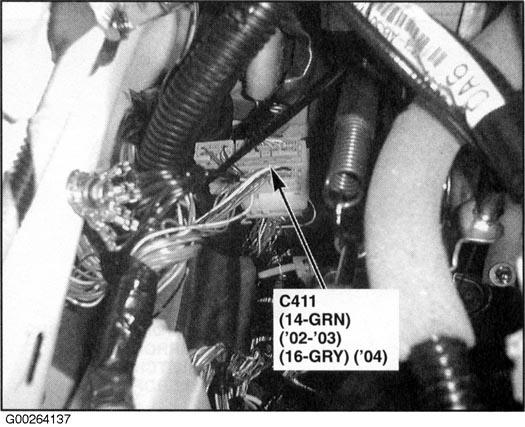

Fig 160: Behind Left Kick Panel

G00264137

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 161: Driver's Door

G00264138

Courtesy of AMERICAN HONDA MOTOR CO., INC.

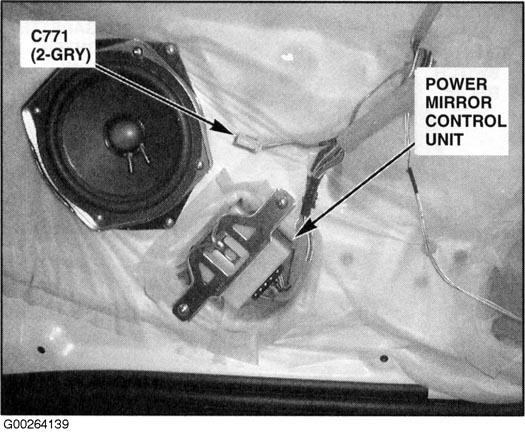

Fig 162: Front Passenger's Door

G00264139

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 163: Behind Right Rear Of Rear Seat

G00264140

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 164: Behind Right Side Of Rear Seat

G00264141

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 165: Behind Right Side Of Rear Seat

G00264142

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 166: Behind Right Side Of Rear Seat

G00264143

Courtesy of AMERICAN HONDA MOTOR CO., INC.

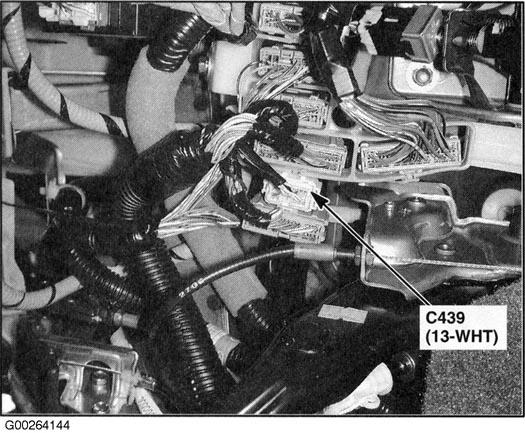

Fig 167: Left Side Of Dash

G00264144

Courtesy of AMERICAN HONDA MOTOR CO., INC.

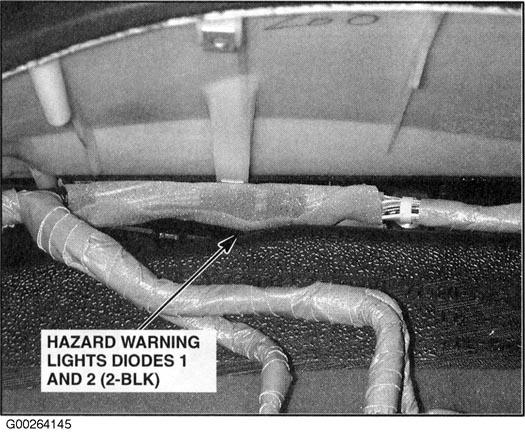

Fig 168: Behind Instrument Cluster

G00264145

Courtesy of AMERICAN HONDA MOTOR CO., INC.

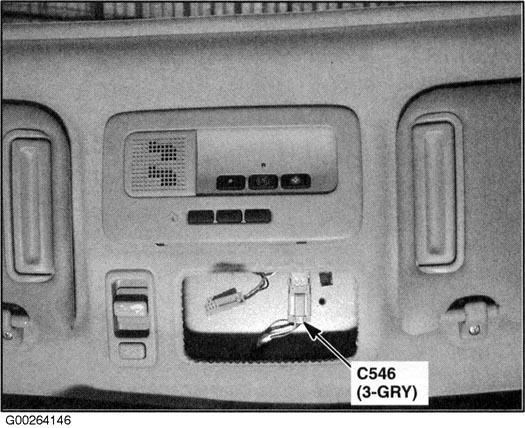

Fig 169: Ceiling Light

G00264146

Courtesy of AMERICAN HONDA MOTOR CO., INC.

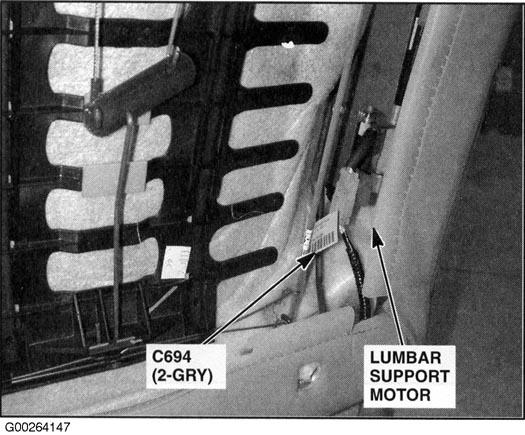

Fig 170: Driver's Seat Back

G00264147

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 171: Left Side Of Trunk

G00264148

Courtesy of AMERICAN HONDA MOTOR CO., INC.

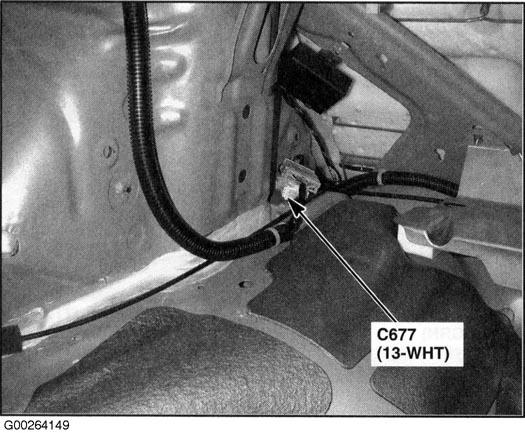

Fig 172: Left Rear Of Trunk

G00264149

Courtesy of AMERICAN HONDA MOTOR CO., INC.

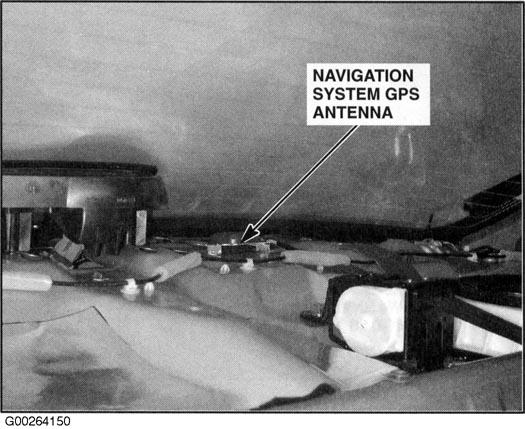

Fig 173: Under Right Side Of Rear Shelf

G00264150

Courtesy of AMERICAN HONDA MOTOR CO., INC.

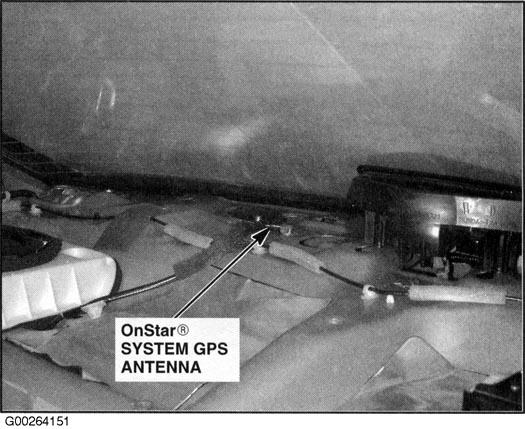

Fig 174: Left Side Of Rear Shelf

G00264151

Courtesy of AMERICAN HONDA MOTOR CO., INC.

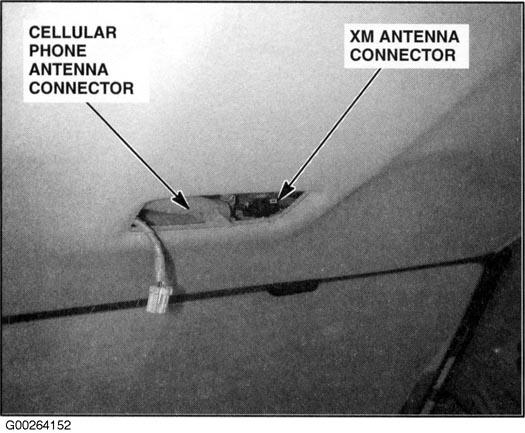

Fig 175: Center Rear Of Headliner

G00264152

Courtesy of AMERICAN HONDA MOTOR CO., INC.

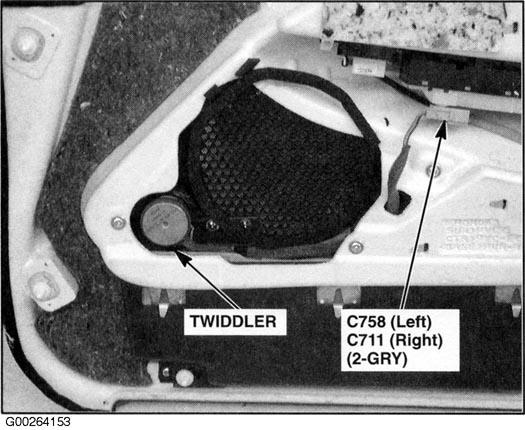

Fig 176: Driver's Door Panel (Front Passenger's Side Similar)

G00264153

Courtesy of AMERICAN HONDA MOTOR CO., INC.

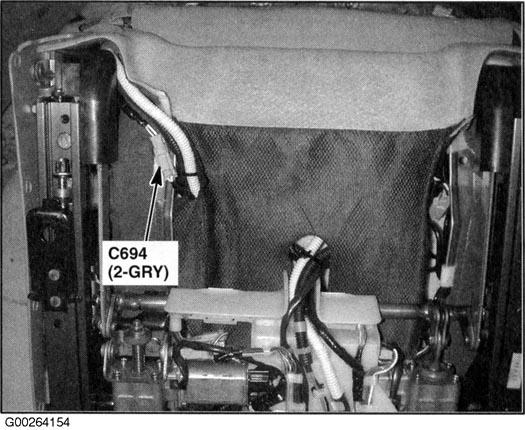

Fig 177: Underside Of Driver's Seat

G00264154

Courtesy of AMERICAN HONDA MOTOR CO., INC.

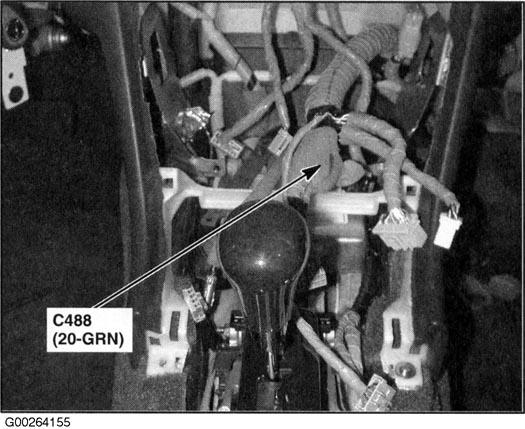

Fig 178: Center Of Dash

G00264155

Courtesy of AMERICAN HONDA MOTOR CO., INC.

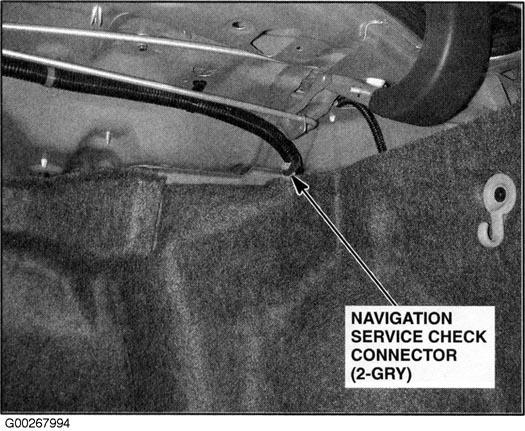

Fig 179: Right Side Of Trunk

G00267994

Courtesy of AMERICAN HONDA MOTOR CO., INC.

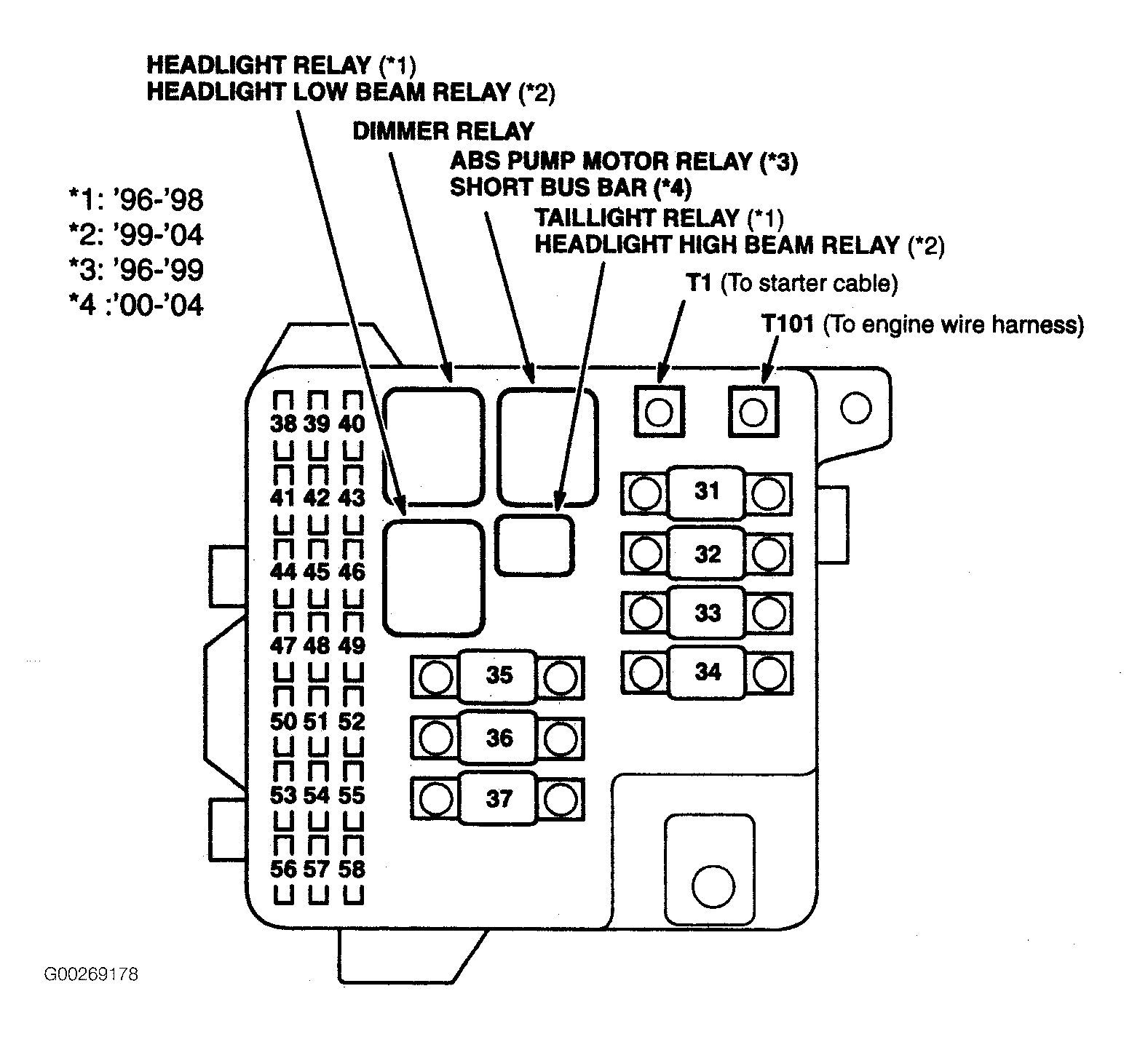

Fig 180: Under-Hood Fuse/Relay Box

G00269178

Courtesy of AMERICAN HONDA MOTOR CO., INC.

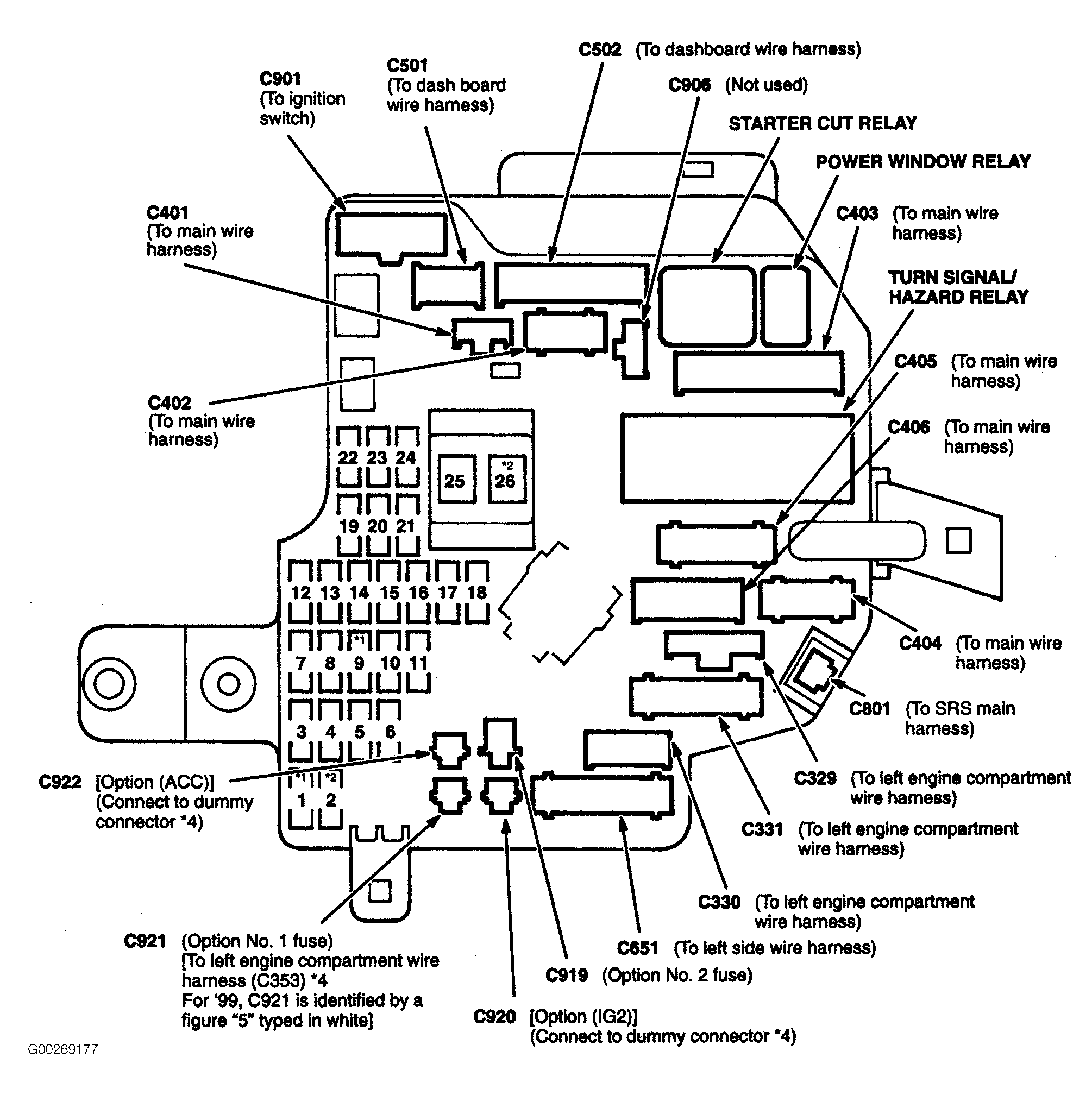

Fig 181: Under-Dash Fuse/Relay Box

G00269177

Courtesy of AMERICAN HONDA MOTOR CO., INC.
