Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

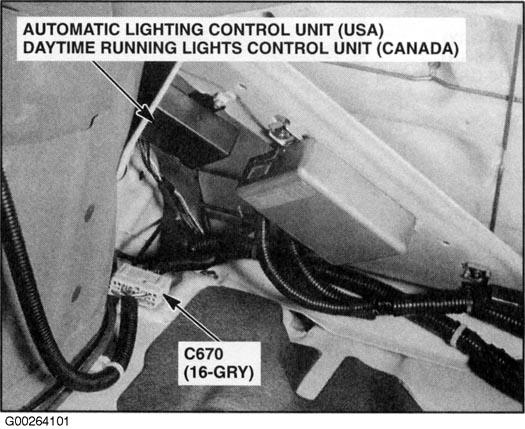

| Automatic Lighting Control Unit (USA) | Behind left side of rear seat. See Figure . |

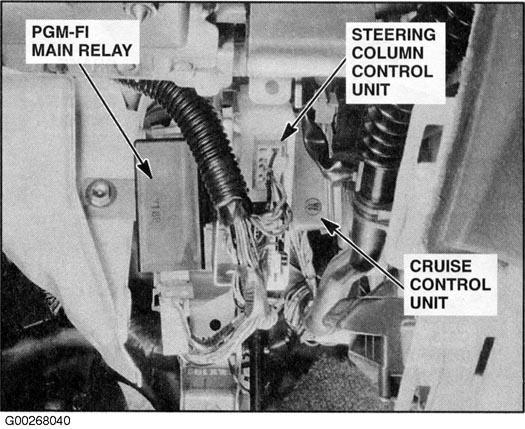

| Cruise Control Unit | Behind dash, right of steering column. See Figure . |

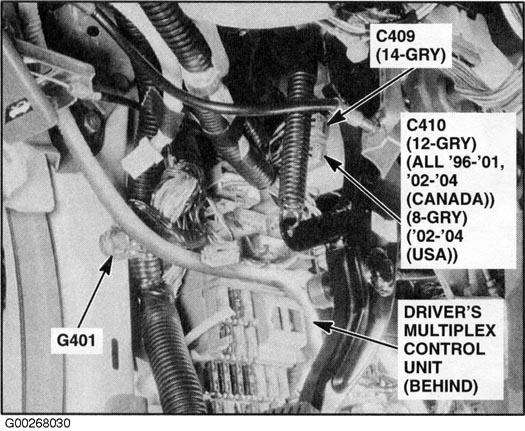

| Driver's Multiplex Control Unit | Behind left kick panel. See Figure . |
| Fan Control Unit | Below front passenger's footrest. See Figure . |
| Ignition Control Module (ICM) | On right side of engine compartment. See Figure . |

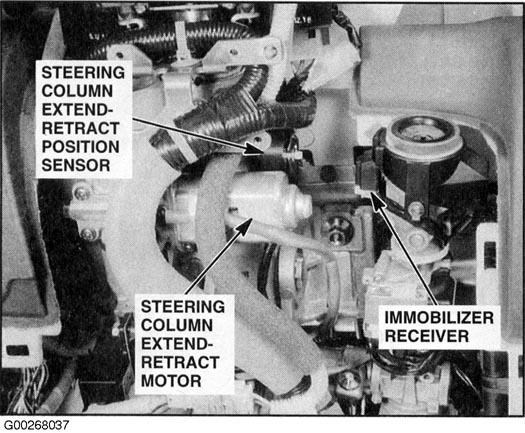

| Immobilizer Receiver | Underside of steering column. See Figure . |

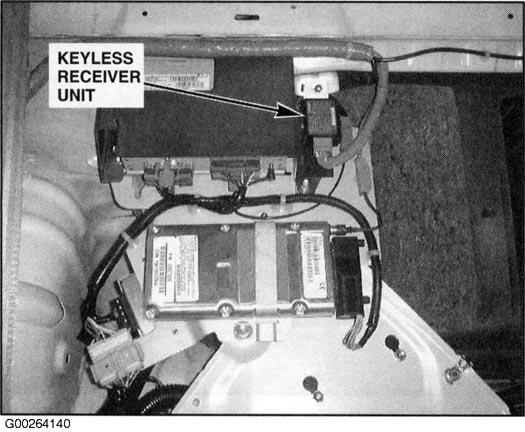

| Keyless Receiver Unit | Behind right side of rear seat. See Figure . |

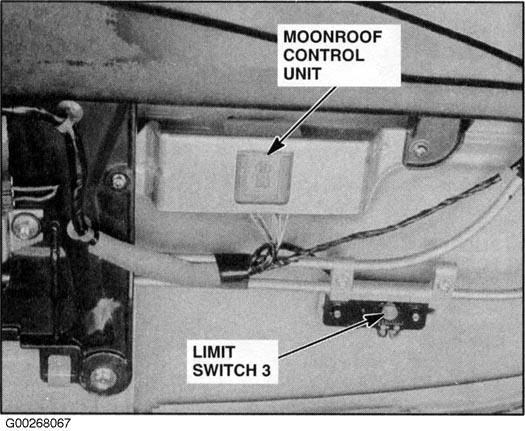

| Moon Roof Control Unit | On center underside of roof, above headliner. See Figure . |

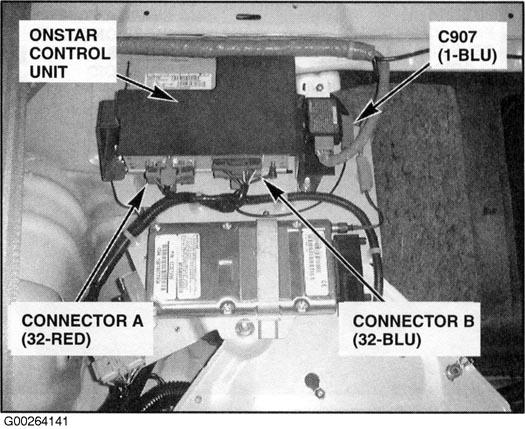

| OnStar(R) Control Unit | Behind right side of rear seat. See Figure . |

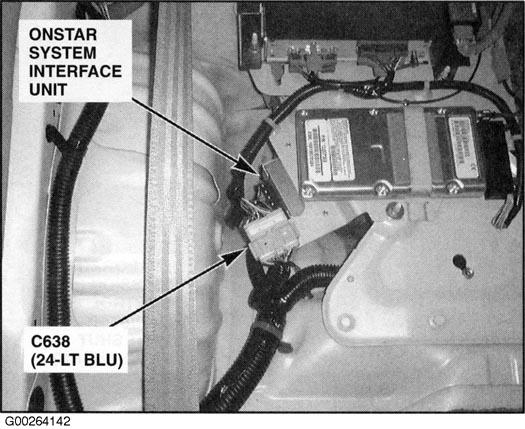

| OnStar(R) System Interface Unit | Behind right side of rear seat. See Figure . |

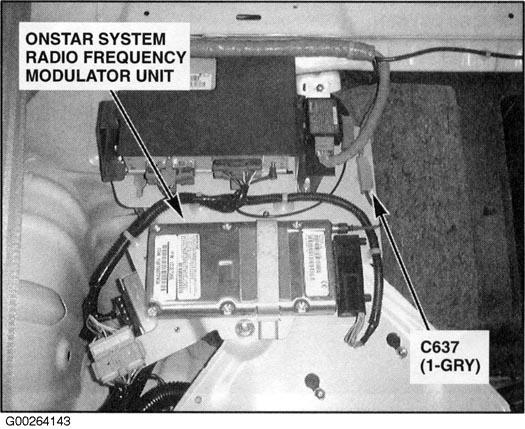

| OnStar(R) System Radio Frequency Modulator Unit | Behind right side of rear seat. See Figure . |

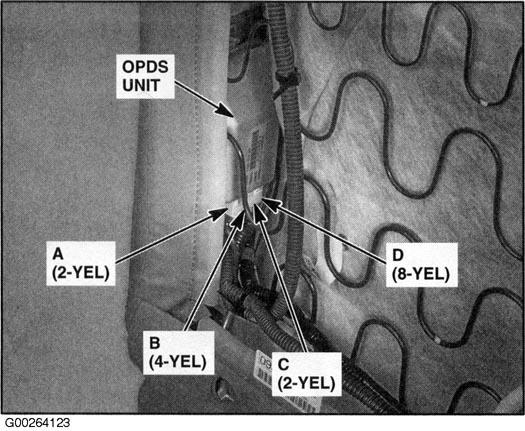

| OPDS Unit | Behind left front side trim. See Figure . |

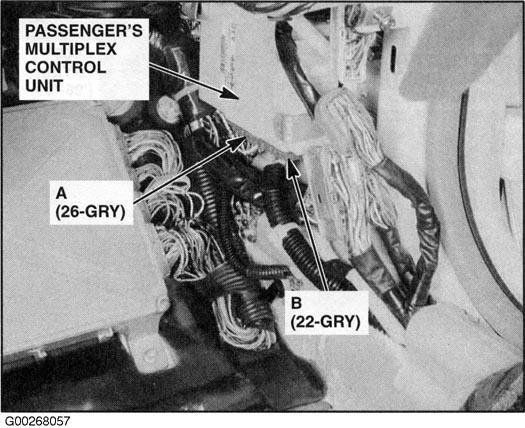

| Passenger's Multiplex Control Unit | Behind right kick panel. See Figure . |

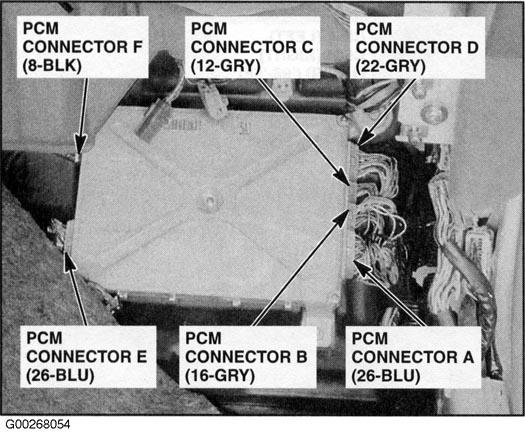

| Powertrain Control Module (PCM) | Below front passenger's footrest. See Figure . |

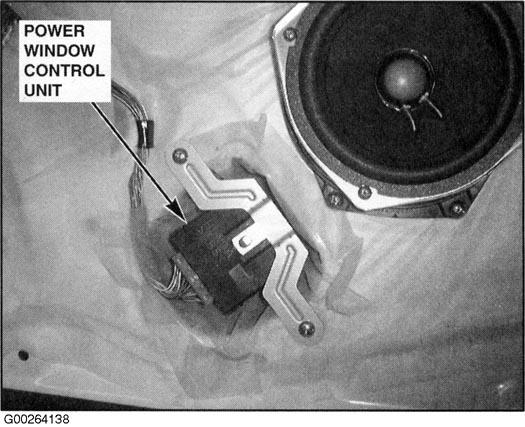

| Power Window Control Unit | On driver's door. See Figure . |

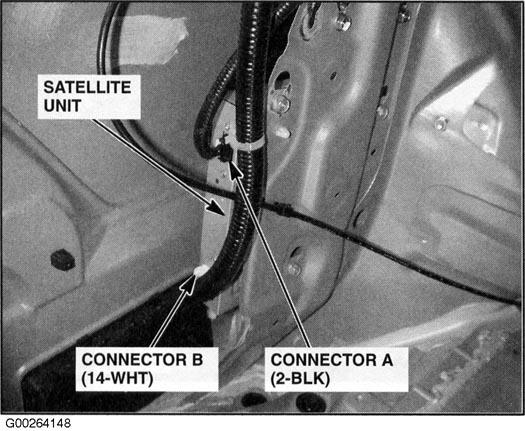

| Satellite Unit | At left side of trunk. See Figure . |

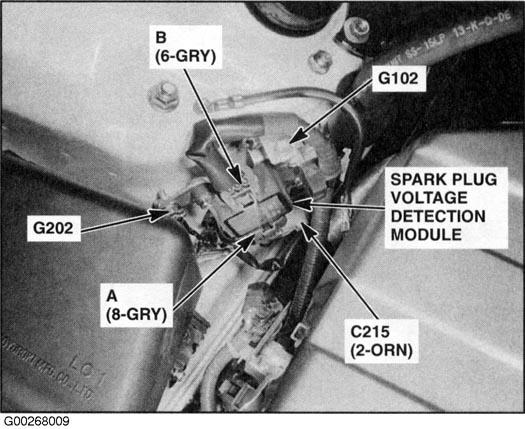

| Spark Plug Voltage Detection Module | On right rear of engine compartment. See Figure . |

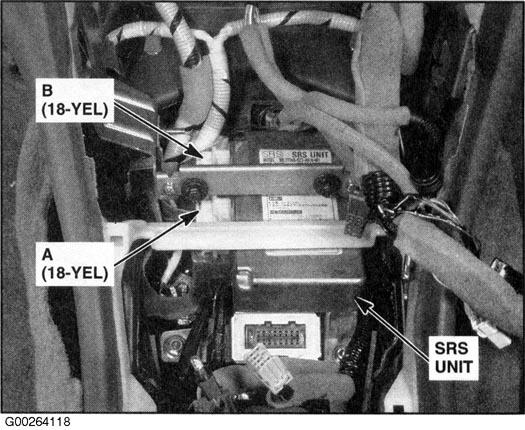

| SRS Unit | Behind center of dash, below radio. See Figure . |
| Steering Column Control Unit | Behind dash, right of steering column. See Figure . |

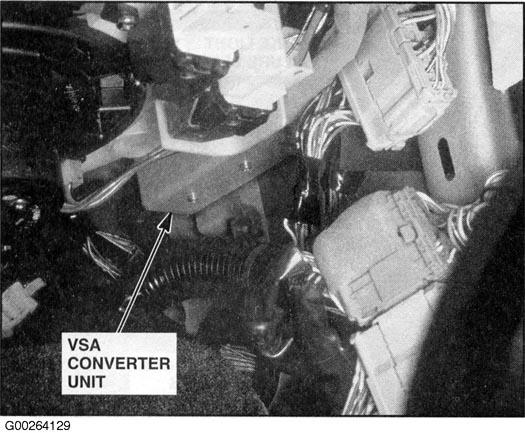

| VSA Converter Unit | At right kick panel. See Figure . |

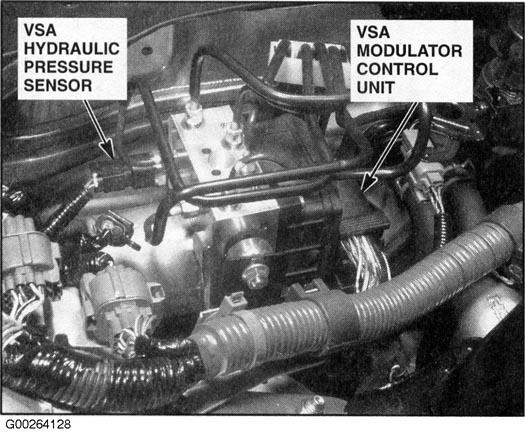

| VSA Modulator/Control Unit | In right rear of engine compartment. See Figure . |
