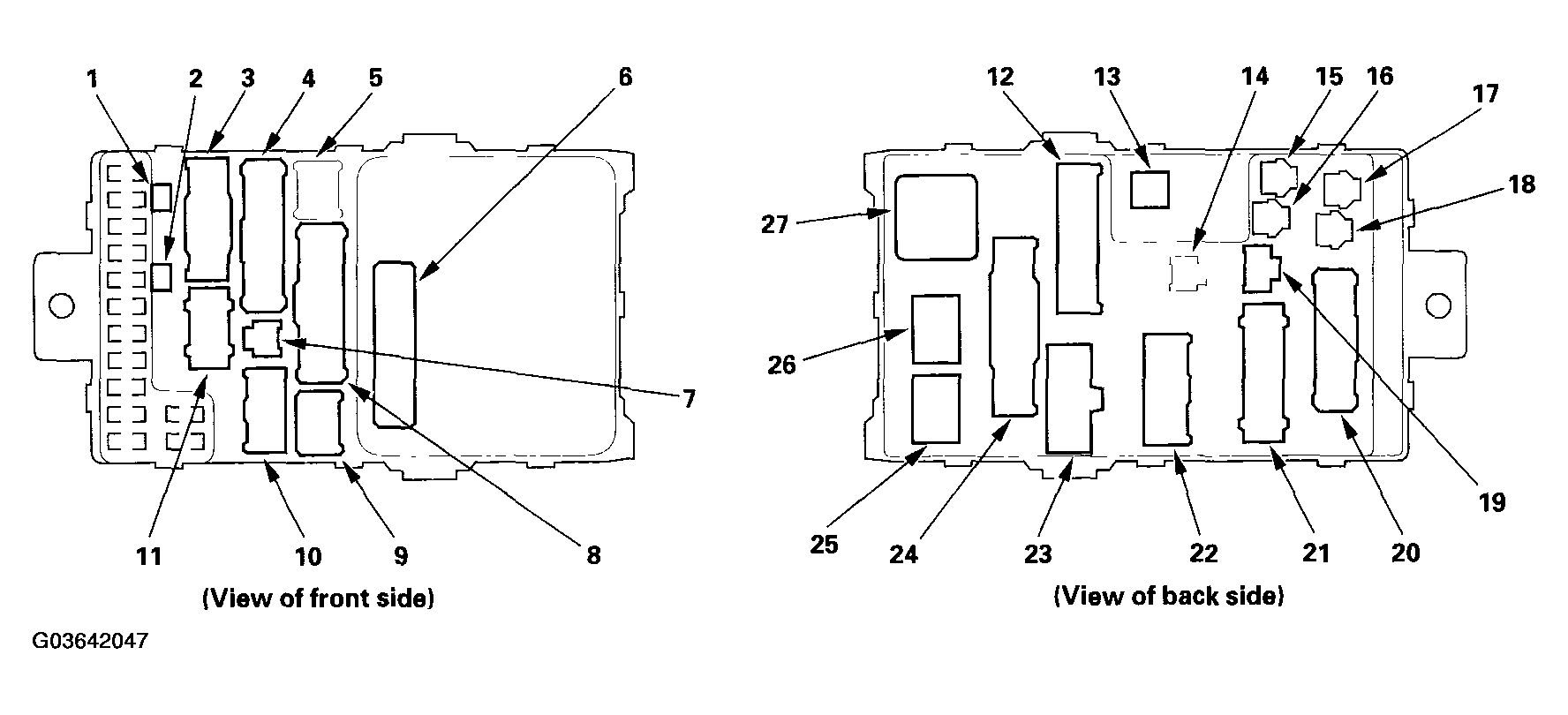

Driver's Under-dash Fuse/Relay Box
FUSE/RELAY DESCRIPTION
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 22 | 6 | Ignition switch lead (see IGNITION SWITCH LEAD ) |
| B | 13 | 2 | SRS main harness (see SRS MAIN HARNESS ) |
| C | 10 | 5 | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS ) |
| D | 4 | 20 | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS ) |
| Diode | 1 | - | Driver's door courtesy light |
| Diode | 2 | - | Left rear door courtesy light |
| E | 11 | 10 | Left side wire harness (see LEFT SIDE WIRE HARNESS ) |
| F | 3 | 14 | Left side wire harness (see LEFT SIDE WIRE HARNESS ) |
| G | 5 | 6 | Not used |
| H | 8 | 18 | Driver's door wire harness (see DRIVER'S DOOR WIRE HARNESS ) |
| J | 20 | 18 | Dashboard wire harness A
|
| K | 21 | 18 | Dashboard wire harness A
|
| L | 24 | 22 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (LEFT BRANCH) ) |
| M | 12 | 20 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (LEFT BRANCH) ) |
| Driver's multiplex control unit connector A | 6 | 24 | (Plugs directly into the fuse box) |
| N | 23 | 7 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (LEFT BRANCH) ) |
| P | 19 | 3 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (LEFT BRANCH) ) |
| R | 18 | 1 | Optional connector |
| Reverse relay | 26 | 4 | |
| S | 17 | 1 | Optional connector |
| Starter cut relay | 25 | 4 | |
| T | 16 | 1 | Optional connector |
| Turn signal/hazard relay | 27 | 4 | |
| U | 15 | 1 | Optional connector |
| V | 14 | - | Not used |
| W | 7 | - | Memory erase signal (MES) connector |
| X | 9 | 6 | Driver's door wire harness (see DRIVER'S DOOR WIRE HARNESS ) |
