Stall Speed Test
- Make sure the transmission fluid is filled to the upper level (see ATF LEVEL CHECK ).
- Apply the parking brake, and block all four wheels.

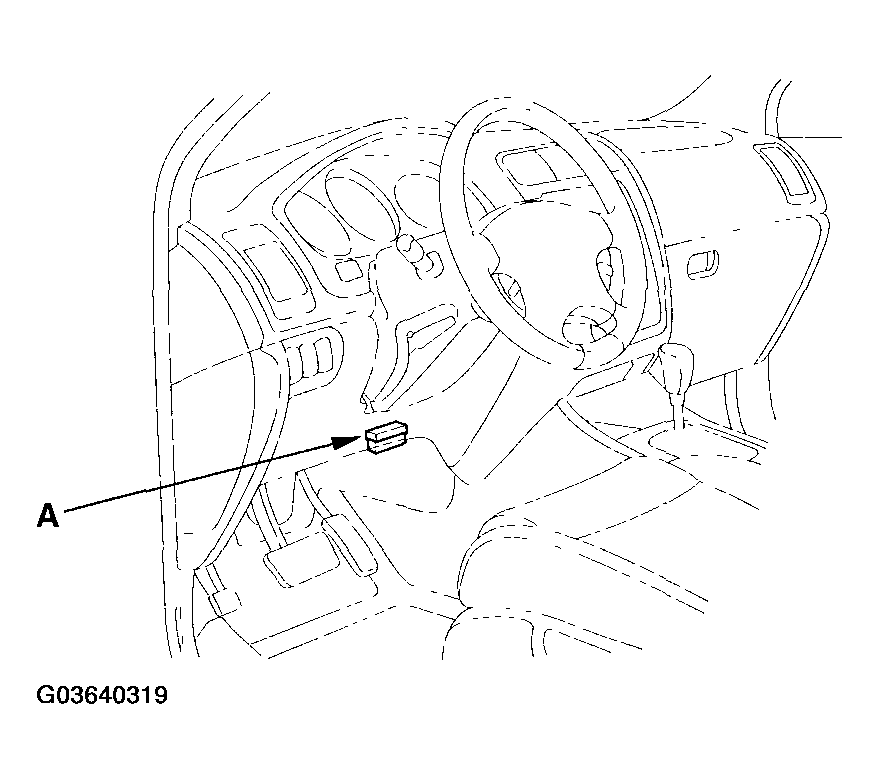

- Connect the HAS to the DLC (A), and go to the A/T data list.
- Make sure the A/C switch is OFF.
- After the engine has warmed up to normal operating temperature (the radiator fan comes on), shift to the 2 position.
- Fully press the brake pedal and accelerator pedal for 6 to 8 seconds, and note engine speed. Do not move the shift lever while raising engine speed.
- Allow 2 minutes for cooling, then repeat the test in the D5, 1, and R positions.NOTE:
- Do not test stall speed for more than 10 seconds at a time.
- Stall speed tests should be used for diagnostic purposes only.
- Stall speed should be the same in D5, 2, 1, and R positions.
- Do not test stall speed with the A/T pressure gauges installed.
Stall Speed RPM:
Specification: 1,950 RPM
Service Limit: 1,800-2,100 RPM
- If the measurements are out of the service limit, problems and probable causes are listed in the table.SERVICE LIMIT PROBLEMS AND PROBABLE CAUSES
Problem Probable causes Stall speed RPM high in the D5, 2, 1, and R positions - ATF pump output low
- Clogged ATF strainer
- Regulator valve stuck
- Slipping clutch
Stall speed RPM high in the 1 position Slippage of 1st clutch or 1st gear one-way clutch Stall speed RPM high in the 2 position Slippage of 2nd clutch Stall speed RPM high in the R position Slippage of 5th clutch Stall speed RPM low in the D5, 2, 1, and R positions - Engine output low
- Engine throttle valve closed
- Torque converter one-way clutch slipping
