Driver's Power Seat Motor Test

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the connector from each power seat motor.
NOTE: All connectors are terminal side of male terminals.

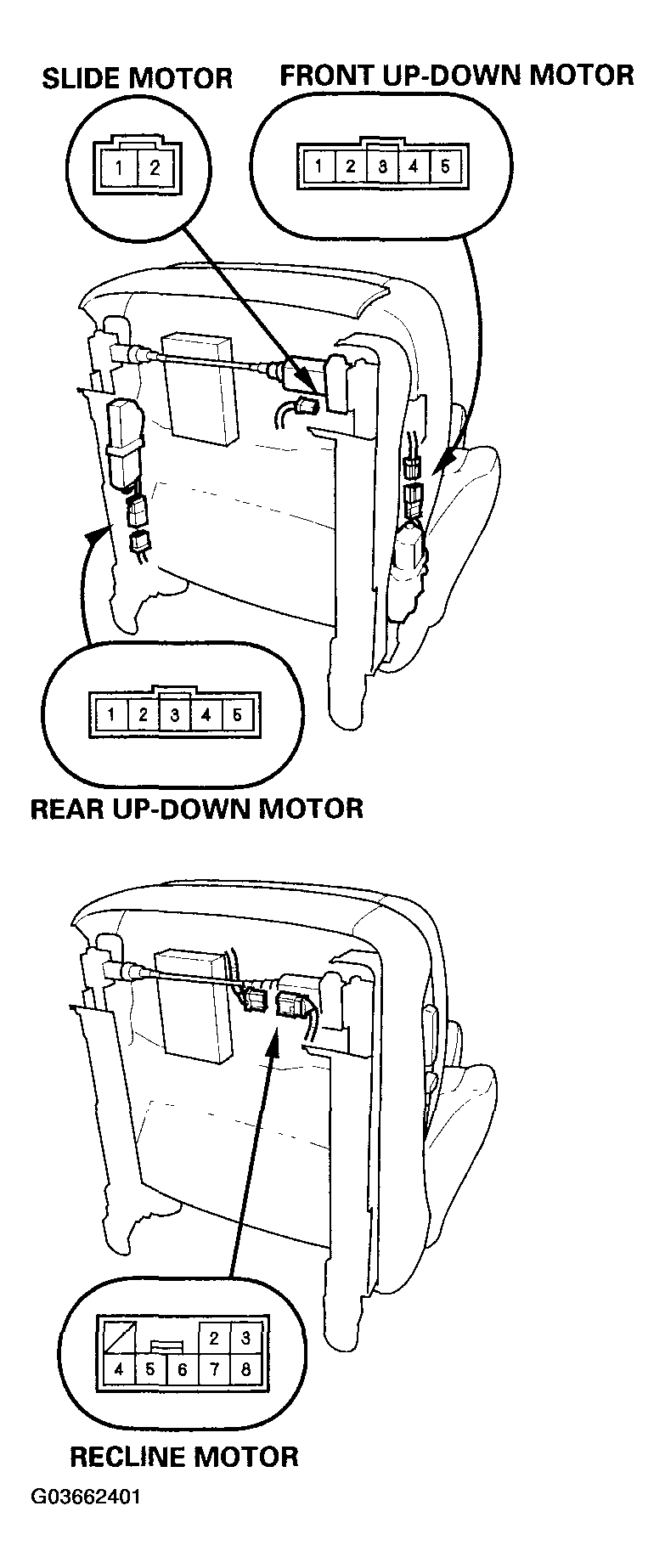

Fig 1: Disconnecting Connector From Each Power Seat Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

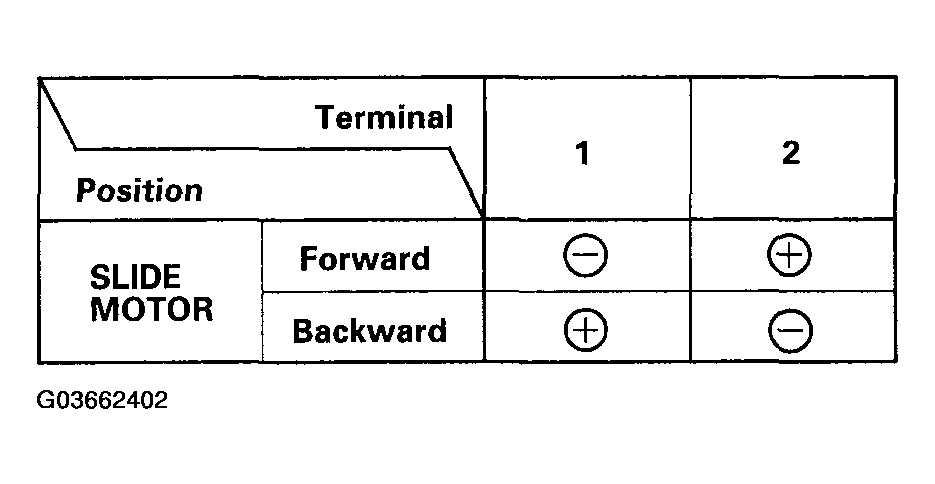

Fig 2: Terminals & Battery Power Specification Table (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

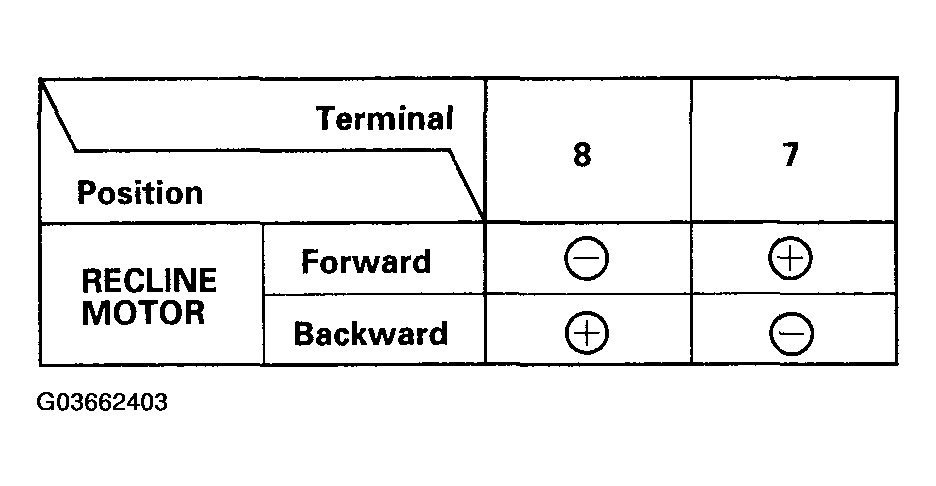

Fig 3: Terminals & Battery Power Specification Table (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

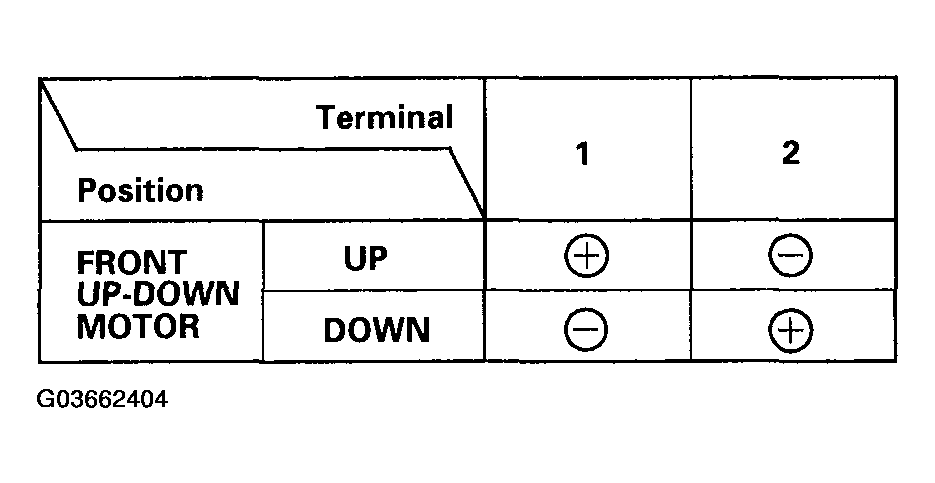

Fig 4: Terminals & Battery Power Specification Table (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

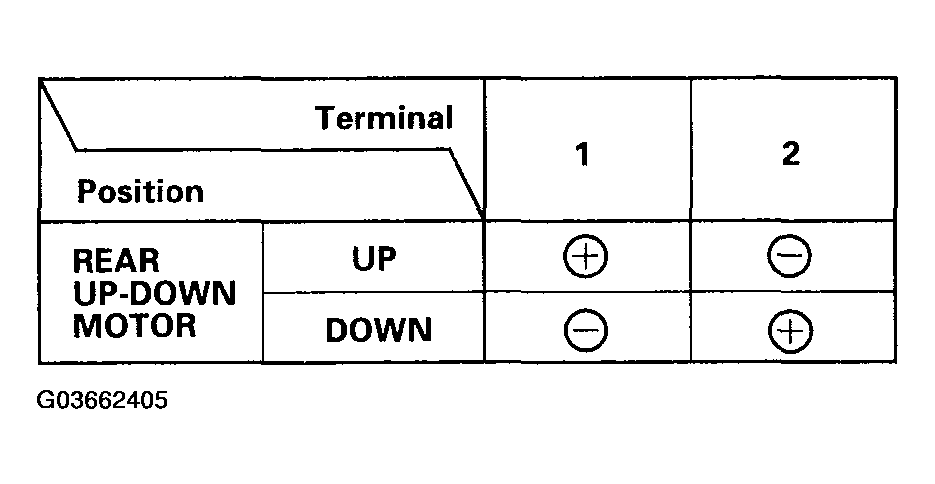

Fig 5: Terminals & Battery Power Specification Table (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace:
- Slide motor
  - (see '04 MODEL )
  - (see '05-06 MODELS )
- Recline motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT )
- Front up-down motor
  - (see '04 MODEL )
  - (see '05-06 MODELS )
- Rear up-down motor
  - (see '04 MODEL )
  - (see '05-06 MODELS )
