Master Switch Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Remove the screw and disconnect the connectors (A) from the master switch (B), then remove the switch assembly from the door panel.

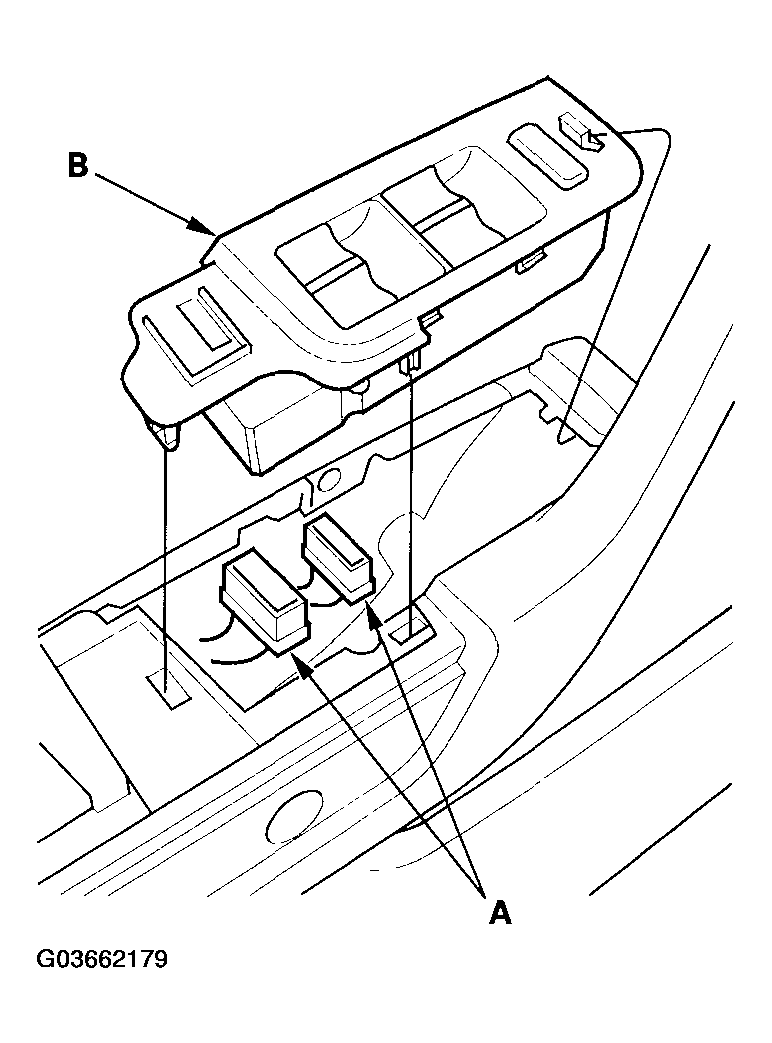

Fig 1: Identifying Connectors (A) And Master Switch (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four mounting screws, then remove the master switch from the switch panel.

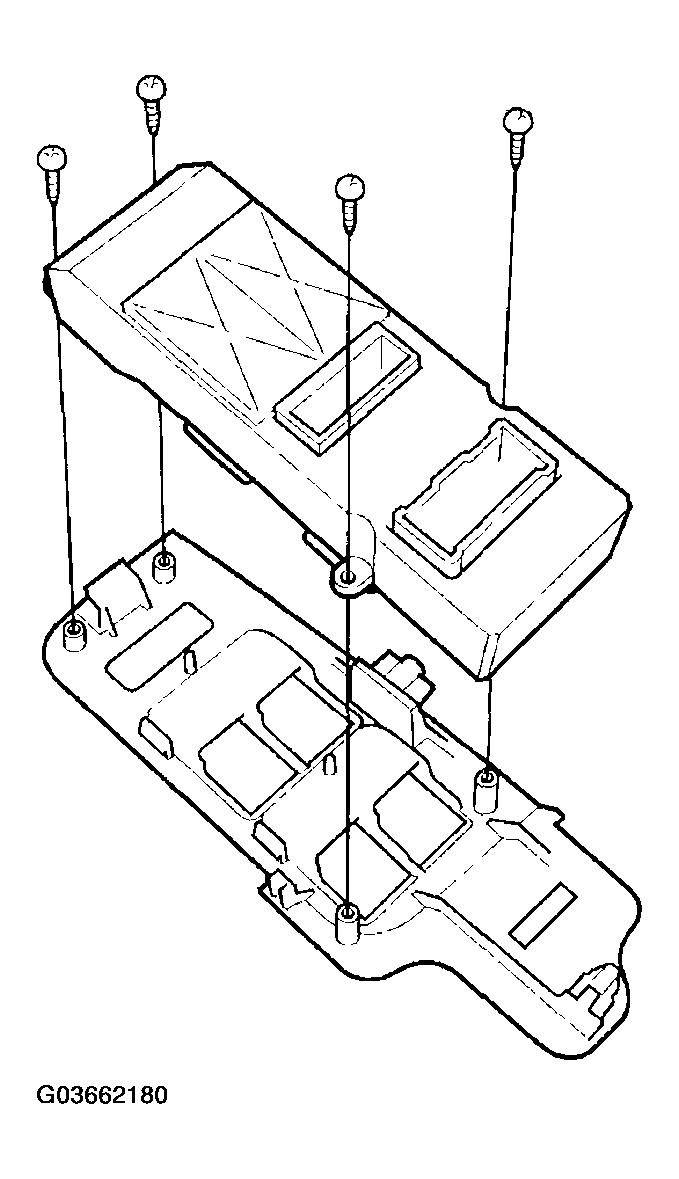

Fig 2: Removing Mounting Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
