Front Passenger's

NOTE: To test the front passenger's power window switch, refer to the input test (see FRONT PASSENGER'S POWER WINDOW SWITCH INPUT TEST ).
  1. Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the screw and disconnect the connector (A) from the power window switch (B), then remove the switch assembly from the door panel.

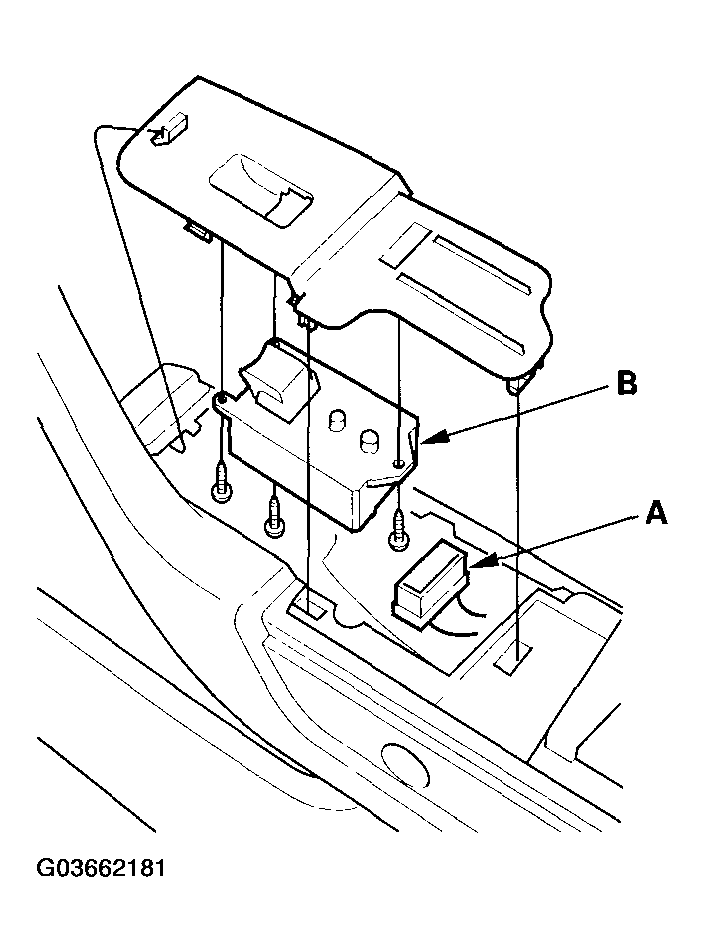

    Fig 1: Identifying Screw, Connector (A) And Power Window Switch (B)
    G03662181Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the three mounting screws, then remove the power window switch from the switch panel.
  4. Install in the reverse order of removal.
  5. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
