Passenger's Window Switch Test/Replacement: Rear
- Remove the rear door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION
).

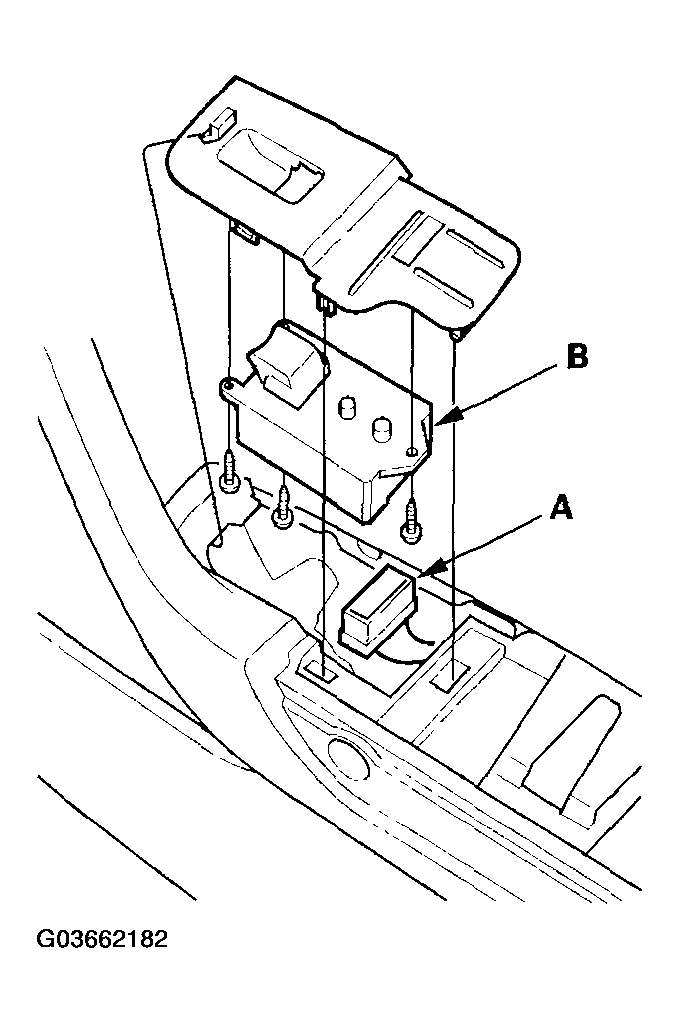

- Remove the screw and disconnect the connector (A) from the power window switch (B), then remove the switch assembly from the door panel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the three mounting screws, then remove the power window switch from the switch panel.
- Swap the rear power window switch with another known-good switch and test. If the original window switch is faulty; replace it.
- Install in the reverse order of removal.
