Under-hood Fuse/Relay Box

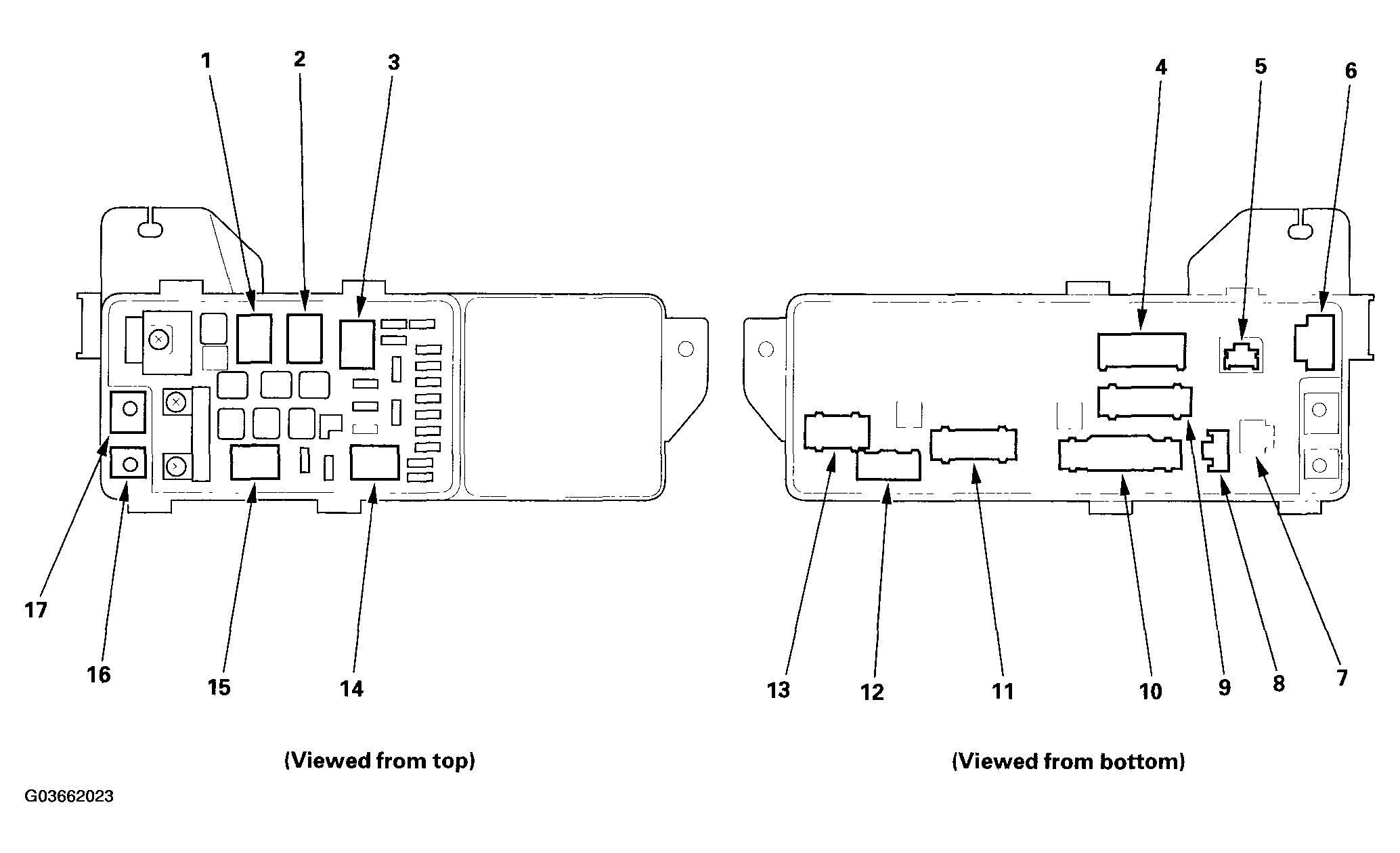

UNDER-HOOD FUSE/RELAY BOX INDEX
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A/C compressor clutch relay | 2 | 4 | |
| A/C condenser fan relay | 15 | 4 | |
| A (ELD unit) | 5 | 3 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| B | 7 | Not used | |
| Blower motor relay | 1 | 4 | |
| C | 8 | 2 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| D | 4 | 9 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| E | 9 | 16 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| F | 10 | 20 | Front engine compartment wire harness (see FRONT ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| G | 6 | 2 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| H | 11 | 14 | Front engine compartment wire harness (see FRONT ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| J | 12 | 5 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| K | 13 | 10 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| Radiator fan relay | 14 | 4 | |
| Rear window defogger relay | 3 | 4 | |
| T101 | 17 | Starter cable (see STARTER CABLE ) | |
| T102 | 16 | Engine wire harness (see ENGINE WIRE HARNESS (M/T) ) |
