Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

G00288466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00288467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

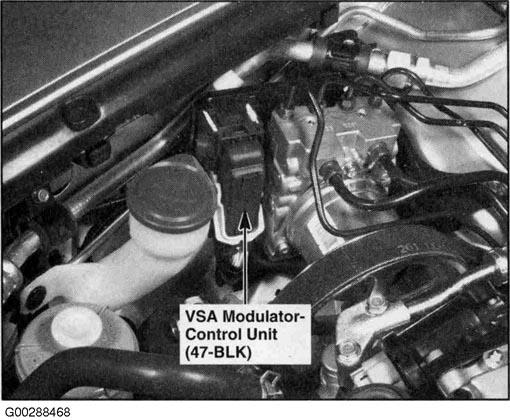

Fig 3: Right Side Of Engine Compartment

G00288468

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine Compartment

G00288469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Right Side Of Engine Compartment

G00288470

Courtesy of AMERICAN HONDA MOTOR CO., INC.

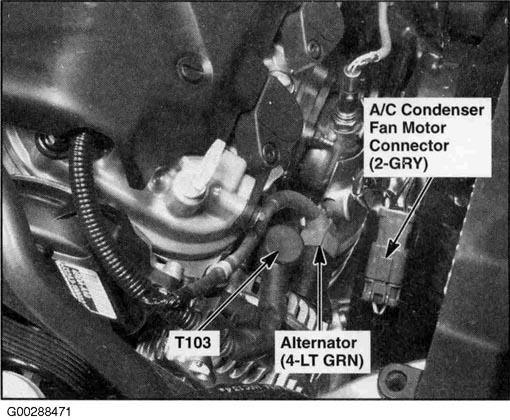

Fig 6: Right Side Of Engine Compartment

G00288471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Right Side Of Engine

G00288472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

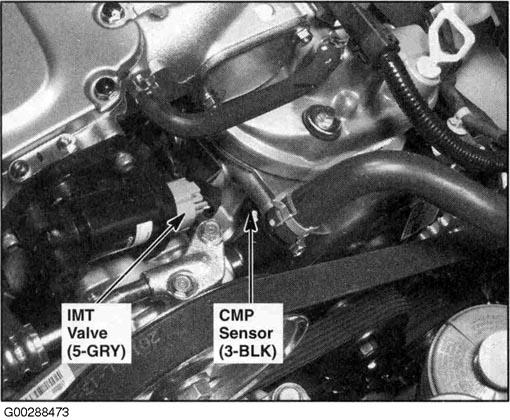

Fig 8: Right Side Of Engine

G00288473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

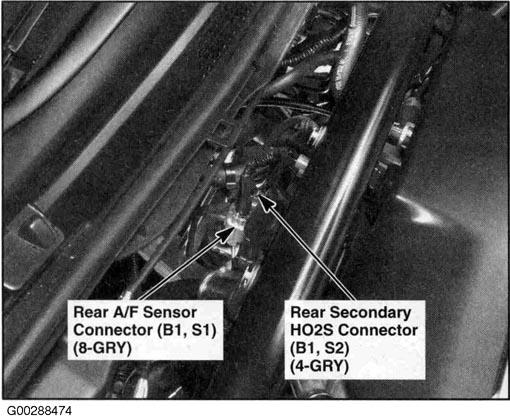

Fig 9: Middle Of Engine

G00288474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

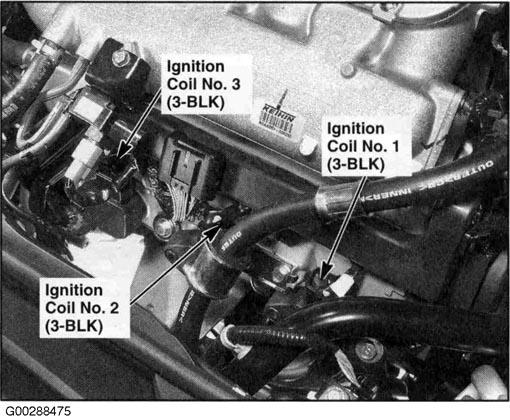

Fig 10: Middle Of Engine

G00288475

Courtesy of AMERICAN HONDA MOTOR CO., INC.

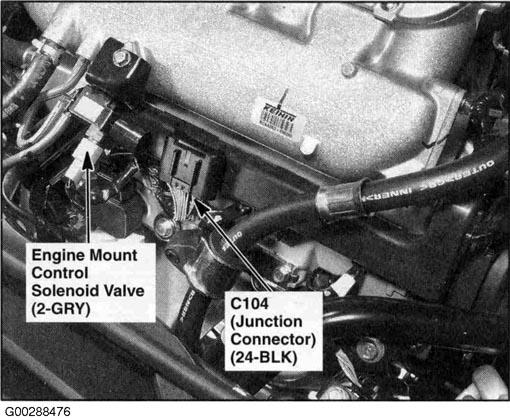

Fig 11: Middle Of Engine

G00288476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

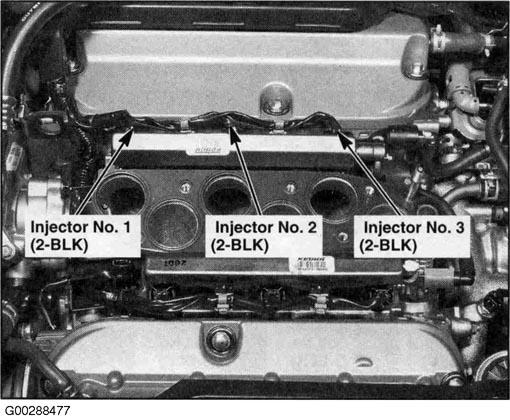

Fig 12: Middle Of Engine

G00288477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

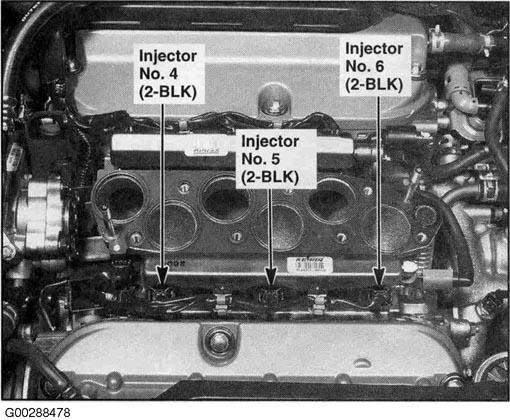

Fig 13: Middle Of Engine

G00288478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

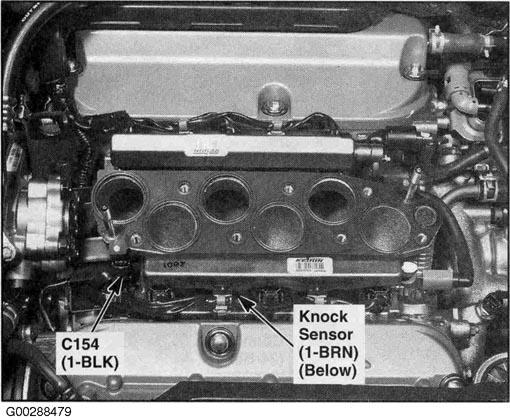

Fig 14: Middle Of Engine

G00288479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

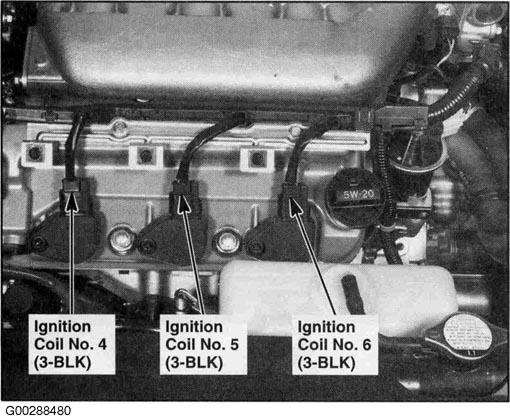

Fig 15: Middle Of Engine

G00288480

Courtesy of AMERICAN HONDA MOTOR CO., INC.

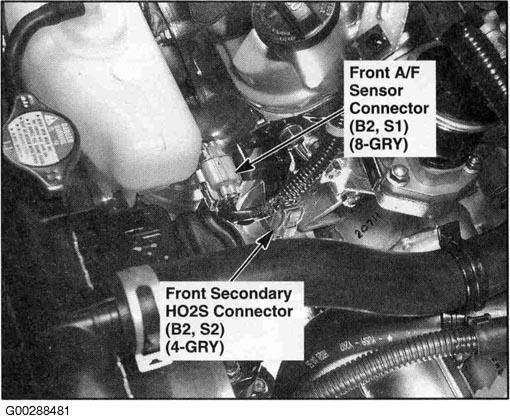

Fig 16: Middle Of Engine

G00288481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

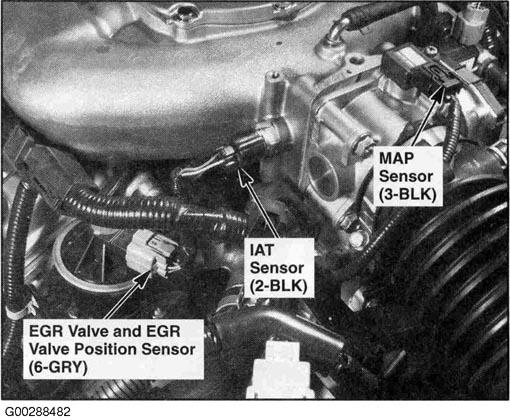

Fig 17: Left Side Of Engine

G00288482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

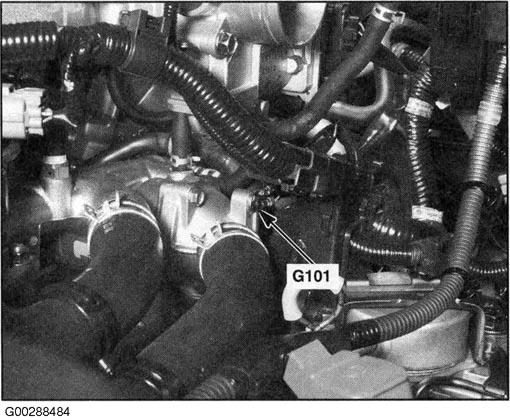

Fig 18: Left Side Of Engine (A/T)

G00288484

Courtesy of AMERICAN HONDA MOTOR CO., INC.

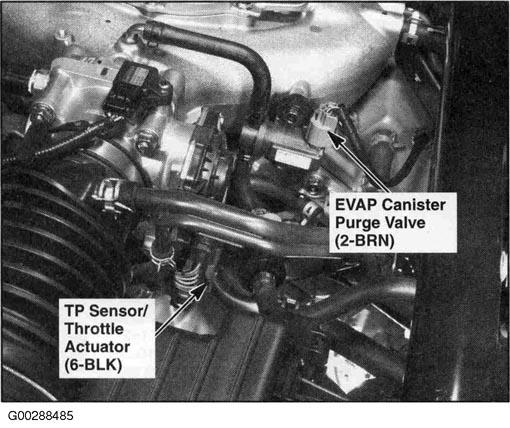

Fig 19: Left Side Of Engine

G00288485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

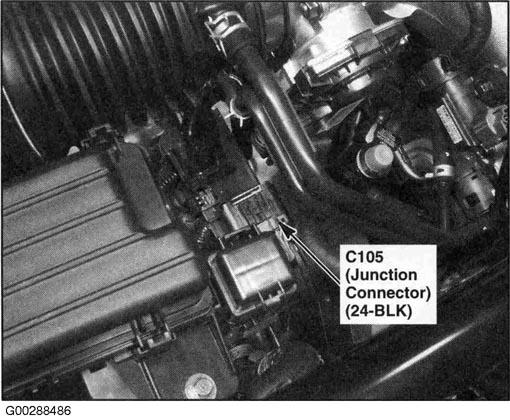

Fig 20: Left Side Of Engine

G00288486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

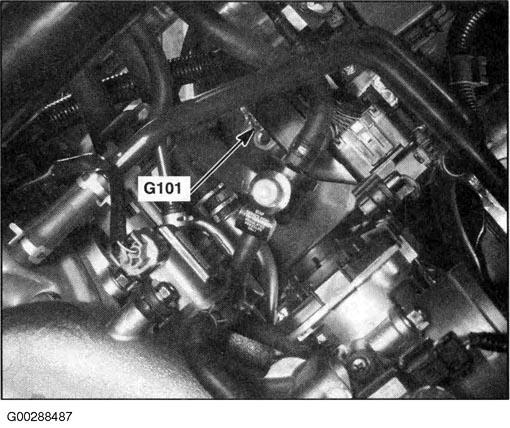

Fig 21: Left Side Of Engine (M/T)

G00288487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

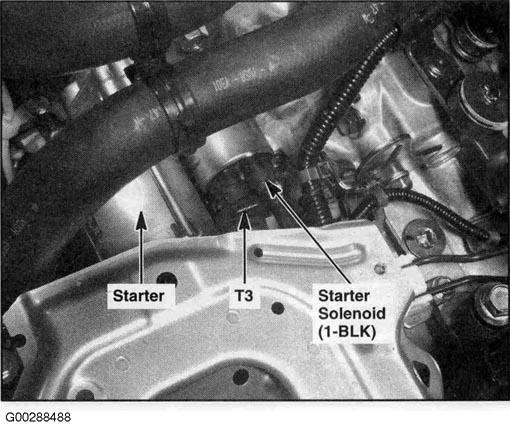

Fig 22: Transmission Housing

G00288488

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Transmission Housing (M/T)

G00288489

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Transmission Housing (M/T)

G00288490

Courtesy of AMERICAN HONDA MOTOR CO., INC.

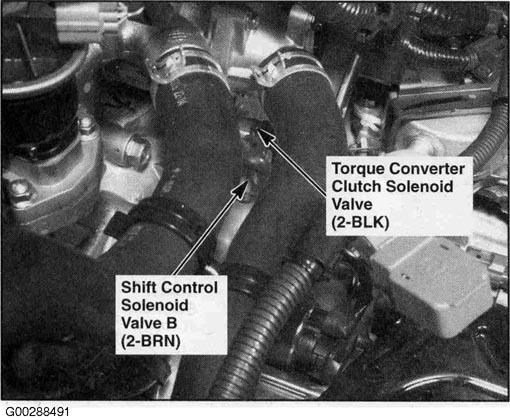

Fig 25: Transmission Housing (A/T)

G00288491

Courtesy of AMERICAN HONDA MOTOR CO., INC.

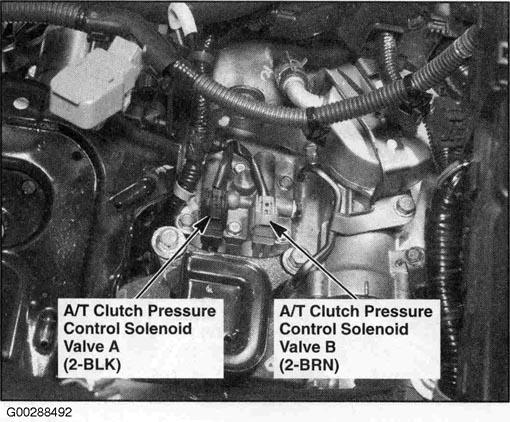

Fig 26: Transmission Housing (A/T)

G00288492

Courtesy of AMERICAN HONDA MOTOR CO., INC.

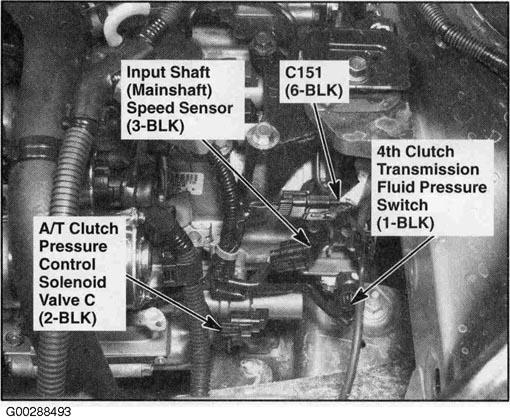

Fig 27: Transmission Housing (A/T)

G00288493

Courtesy of AMERICAN HONDA MOTOR CO., INC.

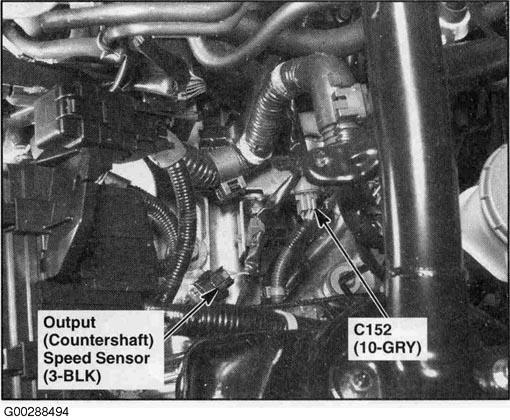

Fig 28: Transmission Housing (A/T)

G00288494

Courtesy of AMERICAN HONDA MOTOR CO., INC.

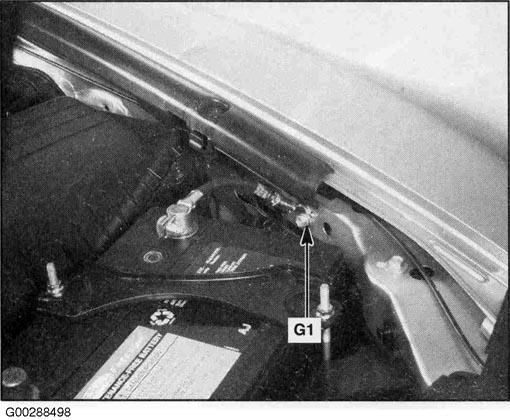

Fig 29: Left Side Of Engine Compartment

G00288498

Courtesy of AMERICAN HONDA MOTOR CO., INC.

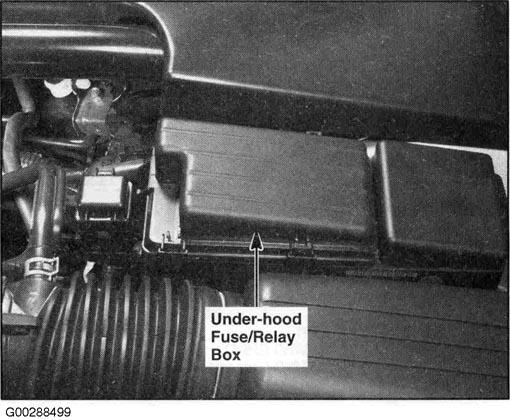

Fig 30: Left Side Of Engine Compartment

G00288499

Courtesy of AMERICAN HONDA MOTOR CO., INC.

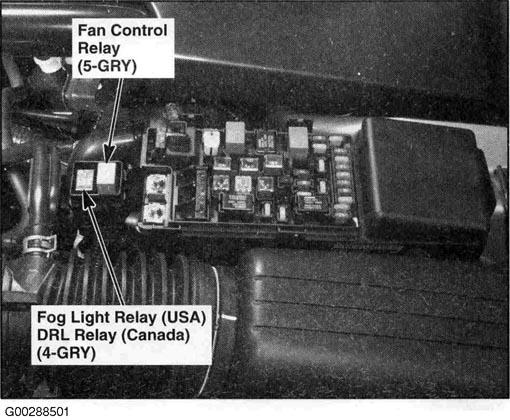

Fig 31: Left Side Of Engine Compartment

G00288501

Courtesy of AMERICAN HONDA MOTOR CO., INC.

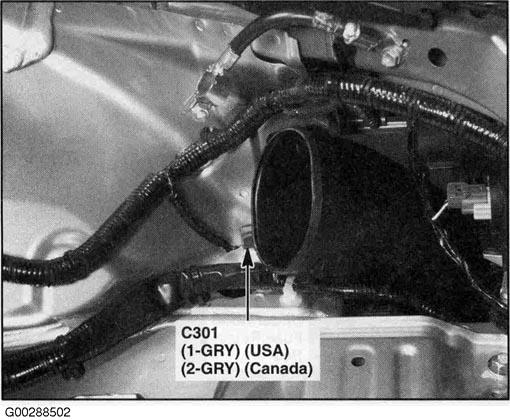

Fig 32: Left Side Of Engine Compartment

G00288502

Courtesy of AMERICAN HONDA MOTOR CO., INC.

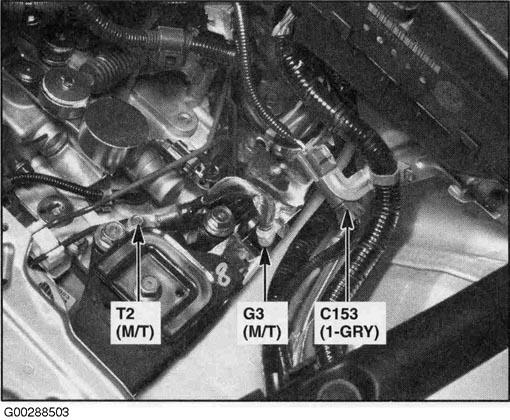

Fig 33: Left Side Of Engine Compartment

G00288503

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Left Side Of Engine Compartment

G00288504

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Left Side Of Engine Compartment

G00288505

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Left Side Of Engine Compartment

G00288506

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Under Left Side Of Cowl Cover

G00288507

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Left Side Of Dash

G00288514

Courtesy of AMERICAN HONDA MOTOR CO., INC.

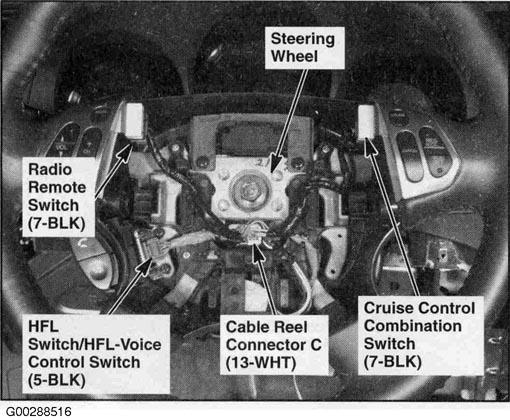

Fig 39: Steering Wheel (Airbag Inflators Removed)

G00288516

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: In Steering Column Cover

G00288517

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: In Steering Column Cover

G00288518

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: In Steering Column Cover

G00288519

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash

G00288522

Courtesy of AMERICAN HONDA MOTOR CO., INC.

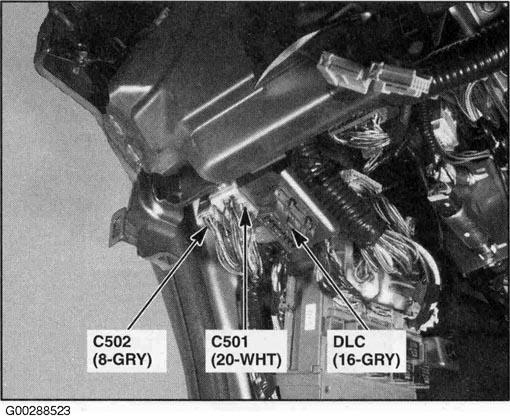

Fig 44: Under Left Side Of Dash

G00288523

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Under Left Side Of Dash

G00288524

Courtesy of AMERICAN HONDA MOTOR CO., INC.

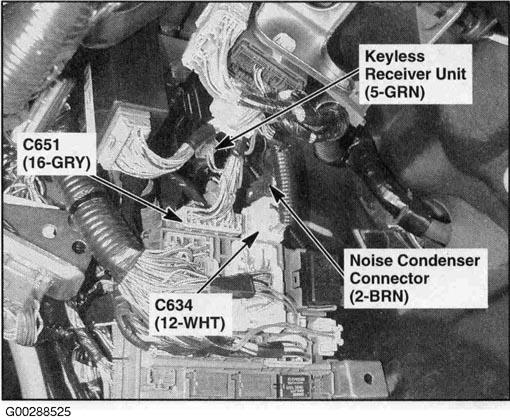

Fig 46: Under Left Side Of Dash

G00288525

Courtesy of AMERICAN HONDA MOTOR CO., INC.

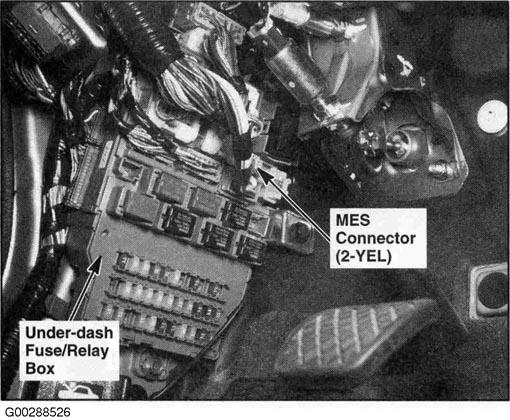

Fig 47: Behind Left Kick Panel

G00288526

Courtesy of AMERICAN HONDA MOTOR CO., INC.

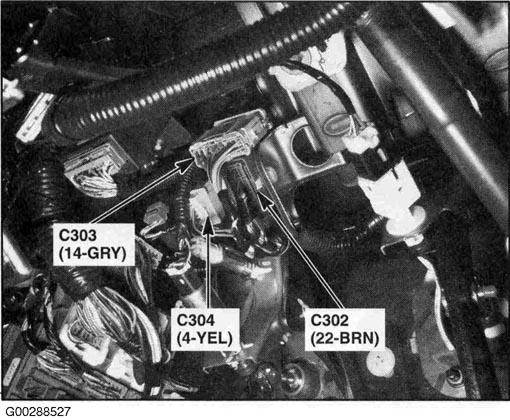

Fig 48: Under Left Side Of Dash

G00288527

Courtesy of AMERICAN HONDA MOTOR CO., INC.

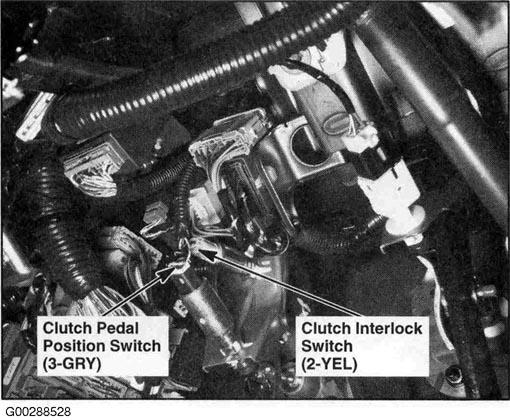

Fig 49: Under Left Side Of Dash (M/T)

G00288528

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Under Left Side Of Dash

G00288529

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Under Left Side Of Dash

G00288530

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Under Left Side Of Dash

G00288531

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Left Side Of Dash

G00288532

Courtesy of AMERICAN HONDA MOTOR CO., INC.

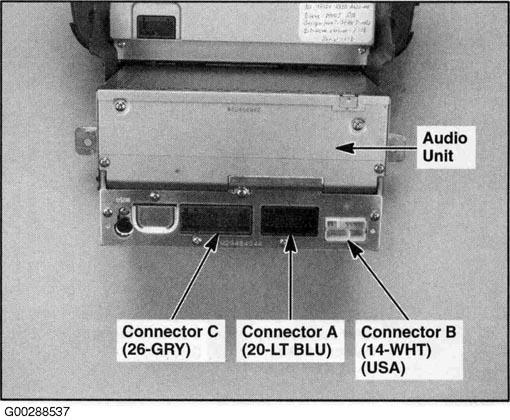

Fig 54: Behind Audio Unit

G00288537

Courtesy of AMERICAN HONDA MOTOR CO., INC.

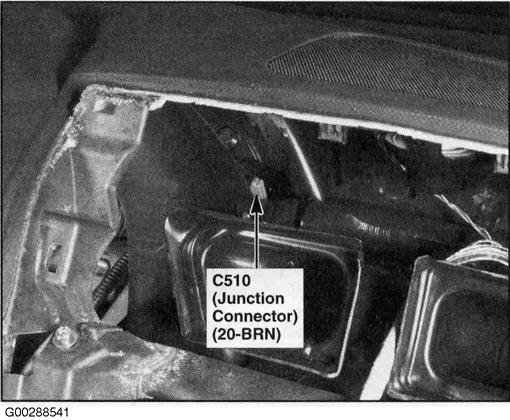

Fig 55: Under Middle Of Dash

G00288541

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Under Middle Of Dash

G00288542

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Under Middle Of Dash

G00288543

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Middle Of Dash

G00288544

Courtesy of AMERICAN HONDA MOTOR CO., INC.

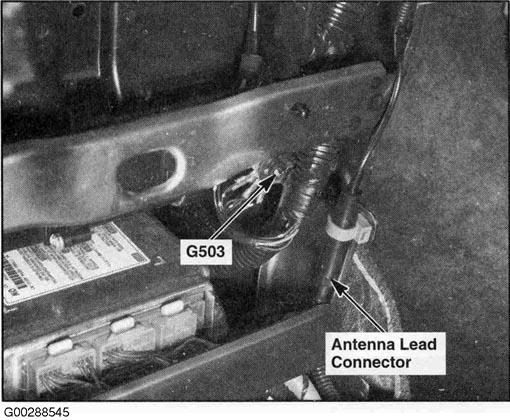

Fig 59: Under Middle Of Dash

G00288545

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Under Center Console

G00288546

Courtesy of AMERICAN HONDA MOTOR CO., INC.

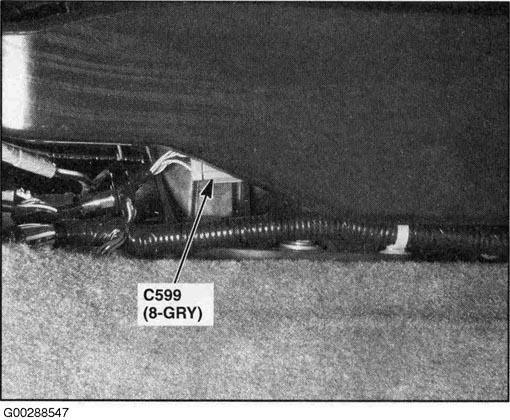

Fig 61: Under Center Console (A/T)

G00288547

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Under Center Console

G00288548

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Under Center Console (A/T)

G00288549

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Under Center Console

G00288550

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Right Side Of Dash

G00288551

Courtesy of AMERICAN HONDA MOTOR CO., INC.

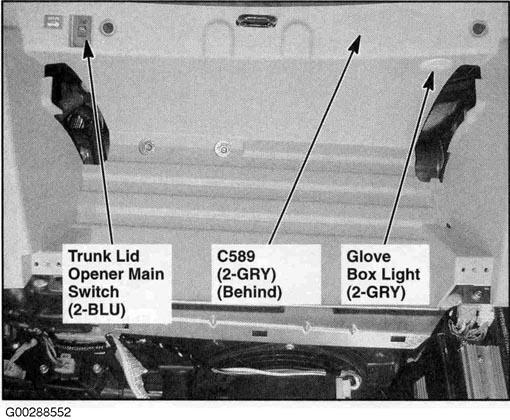

Fig 66: Behind Glove Box

G00288552

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Behind Glove Box

G00288553

Courtesy of AMERICAN HONDA MOTOR CO., INC.

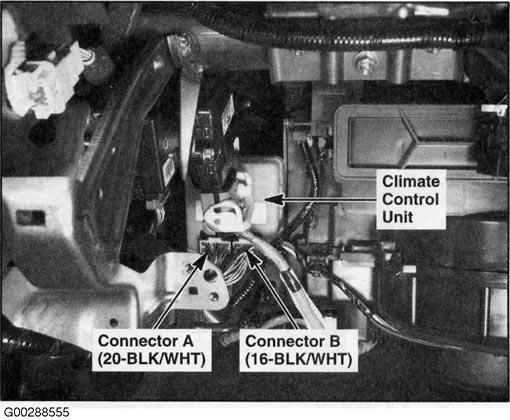

Fig 68: Behind Glove Box

G00288555

Courtesy of AMERICAN HONDA MOTOR CO., INC.

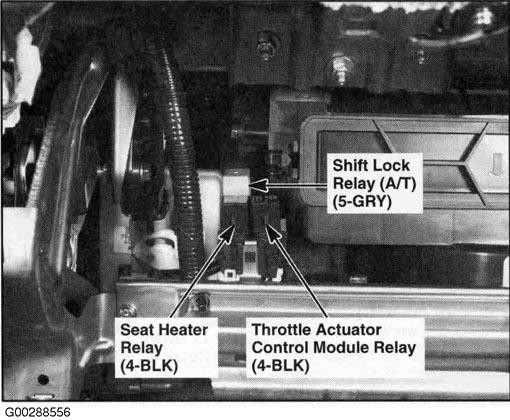

Fig 69: Behind Glove Box

G00288556

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Behind Glove Box

G00288557

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Behind Glove Box

G00288554

Courtesy of AMERICAN HONDA MOTOR CO., INC.

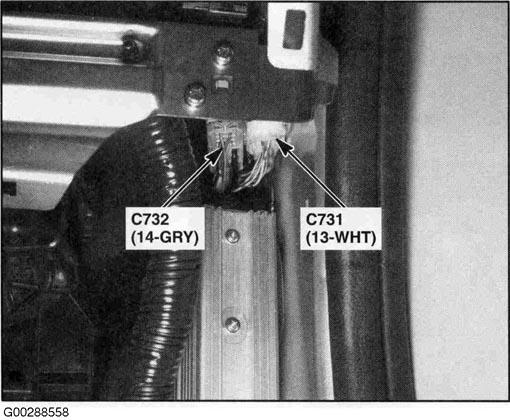

Fig 72: Behind Glove Box

G00288558

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Under Middle Of Dash

G00288559

Courtesy of AMERICAN HONDA MOTOR CO., INC.

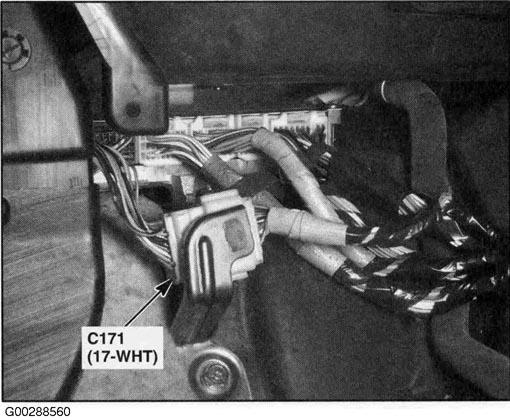

Fig 74: Under Middle Of Dash

G00288560

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Under Right Side Of Dash

G00288561

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Under Right Side Of Dash

G00288562

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Under Right Side Of Dash

G00288563

Courtesy of AMERICAN HONDA MOTOR CO., INC.

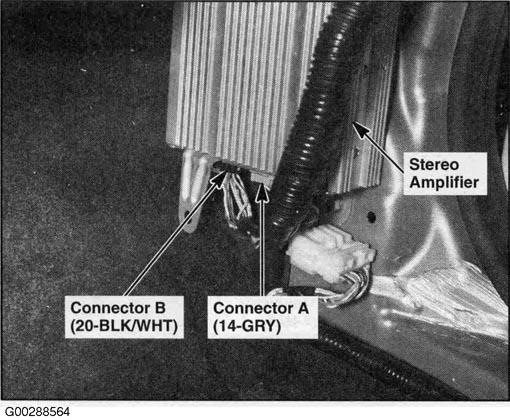

Fig 78: Behind Right Kick Panel

G00288564

Courtesy of AMERICAN HONDA MOTOR CO., INC.

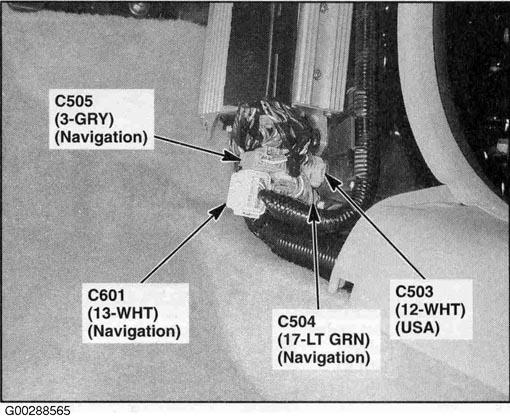

Fig 79: Behind Right Kick Panel

G00288565

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Left Side Of Driver's Seat

G00288567

Courtesy of AMERICAN HONDA MOTOR CO., INC.

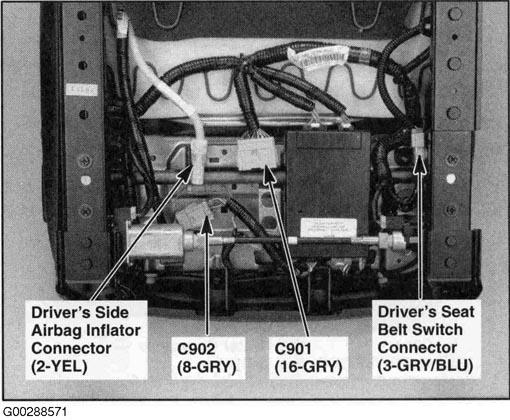

Fig 81: Under Driver's Seat

G00288571

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Under Driver's Seat

G00288572

Courtesy of AMERICAN HONDA MOTOR CO., INC.

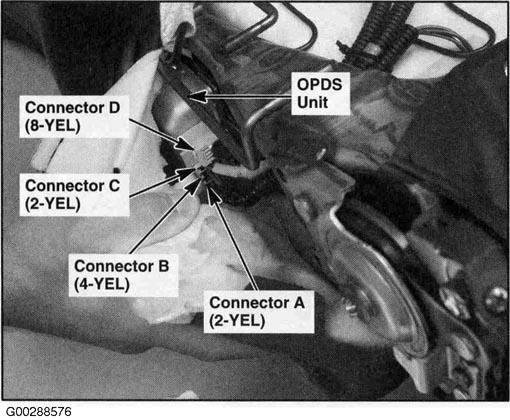

Fig 83: In Front Passenger's Seat

G00288576

Courtesy of AMERICAN HONDA MOTOR CO., INC.

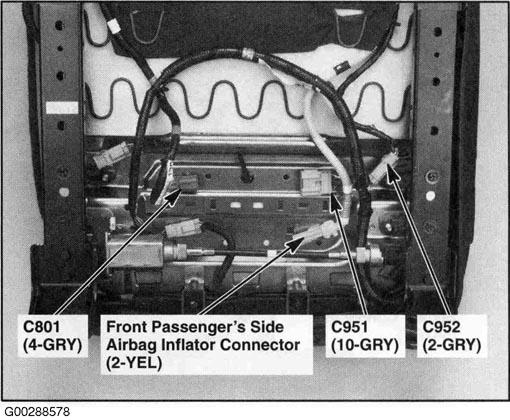

Fig 84: Under Front Passenger's Seat

G00288578

Courtesy of AMERICAN HONDA MOTOR CO., INC.

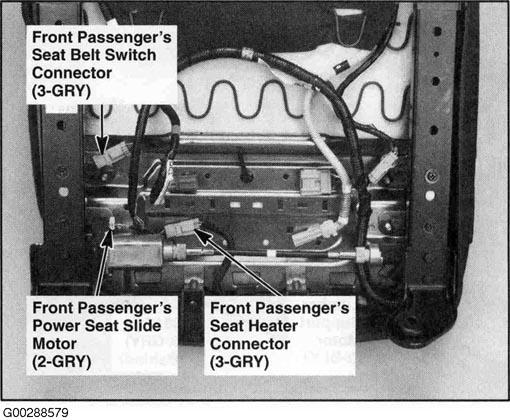

Fig 85: Under Front Passenger's Seat

G00288579

Courtesy of AMERICAN HONDA MOTOR CO., INC.

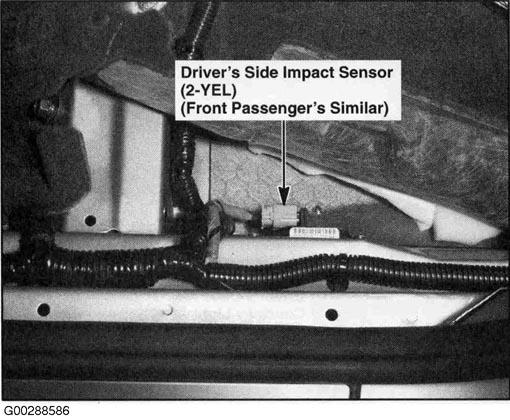

Fig 86: Left Side Of Floor (Right Similar)

G00288586

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Left Side Of Floor

G00288587

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Right Side Of Floor

G00288588

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Left "B" Pillar (Right Similar)

G00288589

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Left "B" Pillar (Right Similar)

G00288591

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Driver's Door (Front Passenger's Similar)

G00288596

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Driver's Door

G00288598

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Driver's Door (Front Passenger's Similar)

G00288601

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Driver's Door

G00288603

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Left Rear Door (Right Similar)

G00288607

Courtesy of AMERICAN HONDA MOTOR CO., INC.

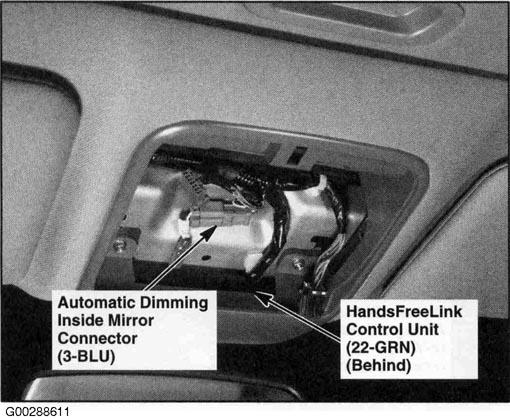

Fig 96: Front Roof

G00288611

Courtesy of AMERICAN HONDA MOTOR CO., INC.

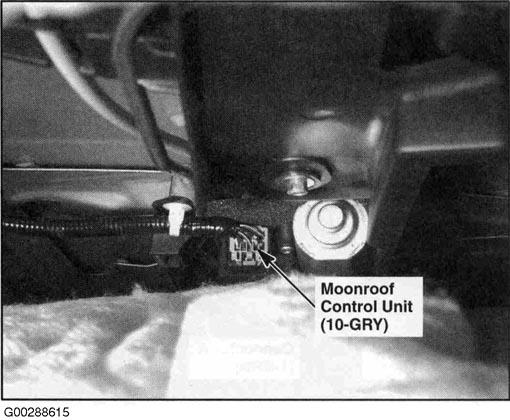

Fig 97: Rear Of Roof

G00288615

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Right "C" Pillar

G00288616

Courtesy of AMERICAN HONDA MOTOR CO., INC.

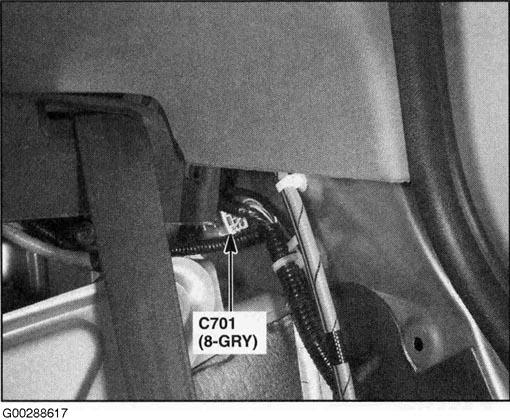

Fig 99: Left "C" Pillar

G00288617

Courtesy of AMERICAN HONDA MOTOR CO., INC.

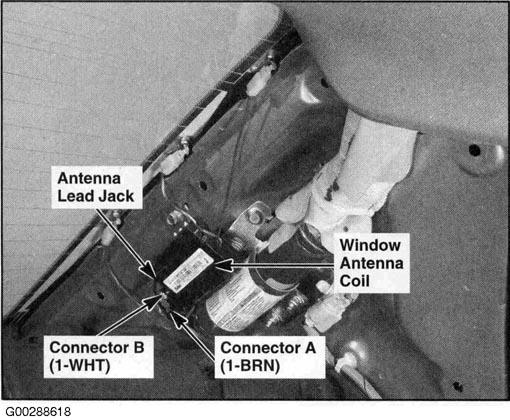

Fig 100: Left "C" Pillar

G00288618

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Left "C" Pillar

G00288619

Courtesy of AMERICAN HONDA MOTOR CO., INC.

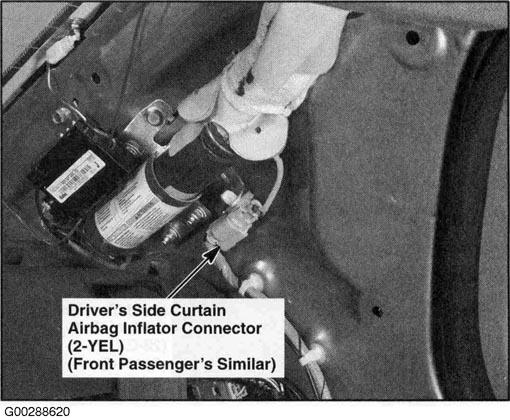

Fig 102: Left "C" Pillar (Right Similar)

G00288620

Courtesy of AMERICAN HONDA MOTOR CO., INC.

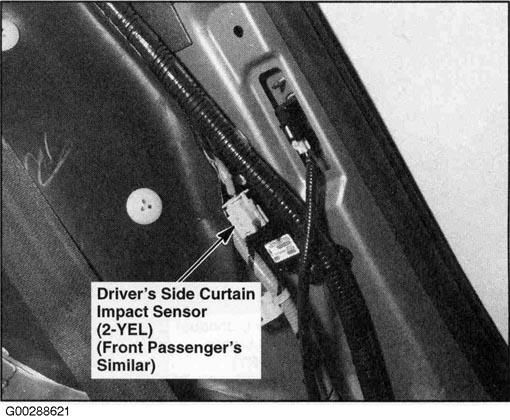

Fig 103: Left "C" Pillar (Right Similar)

G00288621

Courtesy of AMERICAN HONDA MOTOR CO., INC.

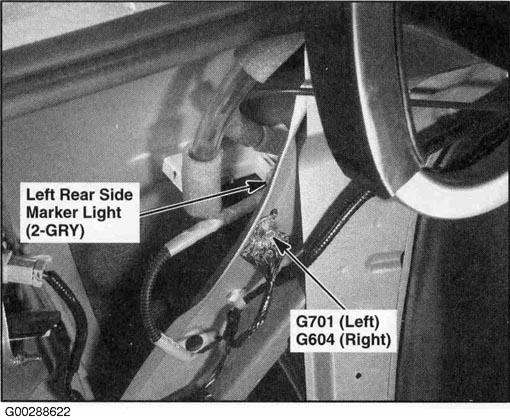

Fig 104: Left Side Of Trunk (Right Similar)

G00288622

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Middle Front Of Trunk

G00288627

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: Middle Front Of Trunk

G00288628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

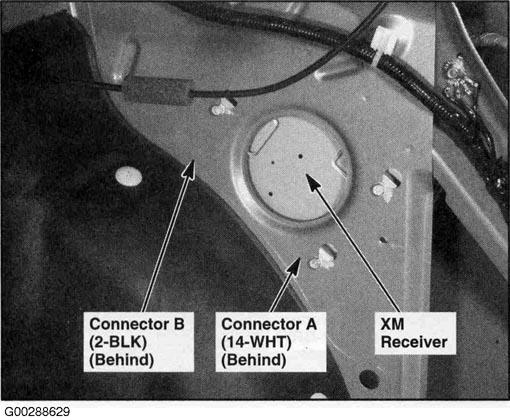

Fig 107: Right Side Of Trunk (USA)

G00288629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

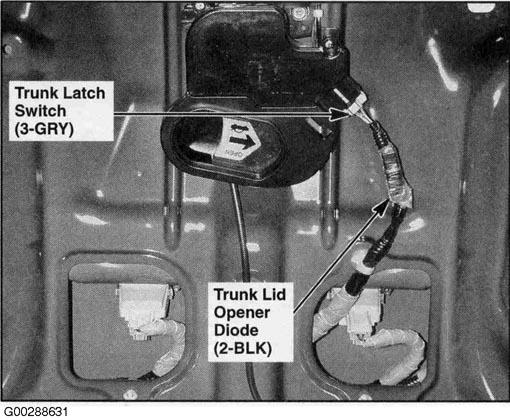

Fig 108: Middle Of Trunk Lid

G00288631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

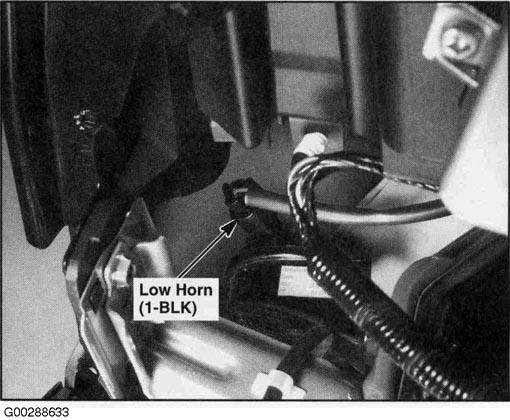

Fig 109: Behind Right Side Of Front Bumper

G00288633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: Behind Right Side Of Front Bumper

G00288634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

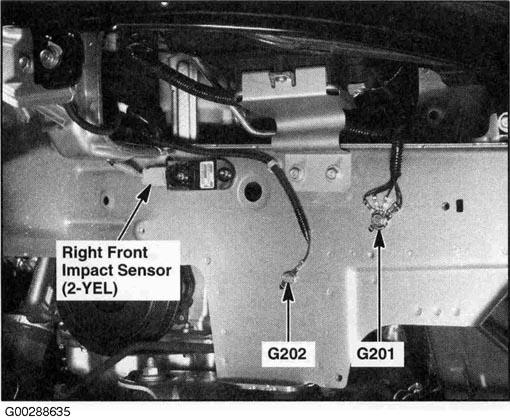

Fig 111: Behind Right Side Of Front Bumper

G00288635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Behind Right Side Of Front Bumper

G00288636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

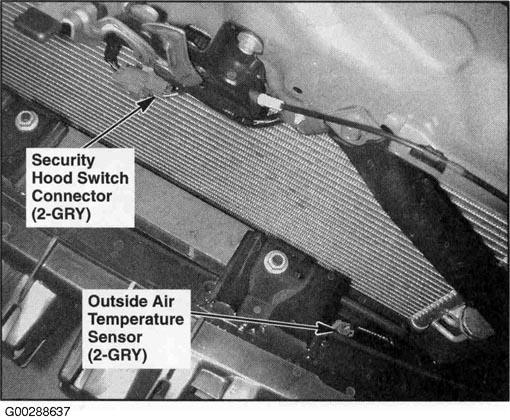

Fig 113: Behind Middle Of Front Bumper

G00288637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

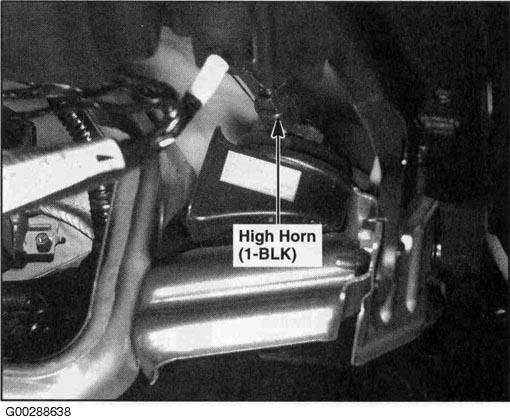

Fig 114: Behind Left Side Of Front Bumper

G00288638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

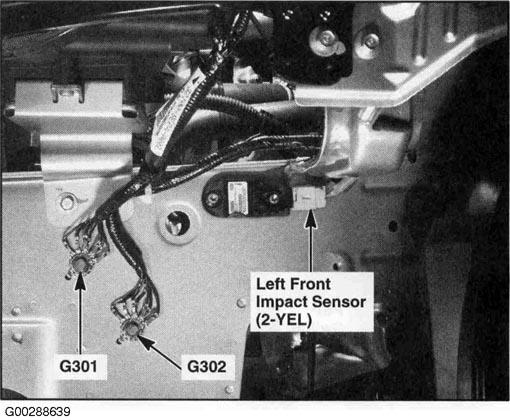

Fig 115: Behind Left Side Of Front Bumper

G00288639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

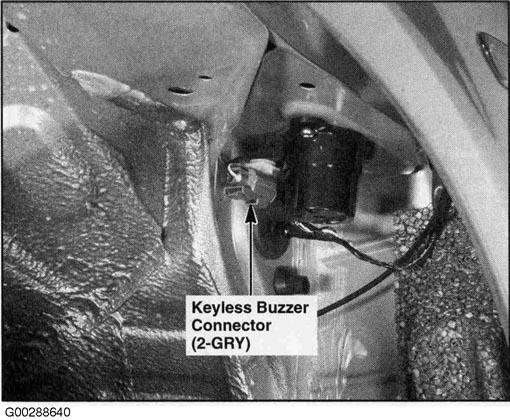

Fig 116: Behind Left Front Fender

G00288640

Courtesy of AMERICAN HONDA MOTOR CO., INC.

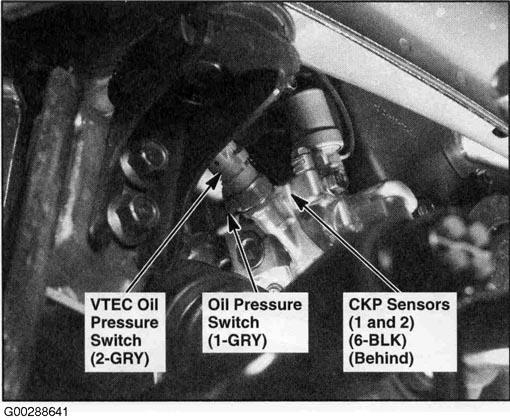

Fig 117: Right Side Of Engine

G00288641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

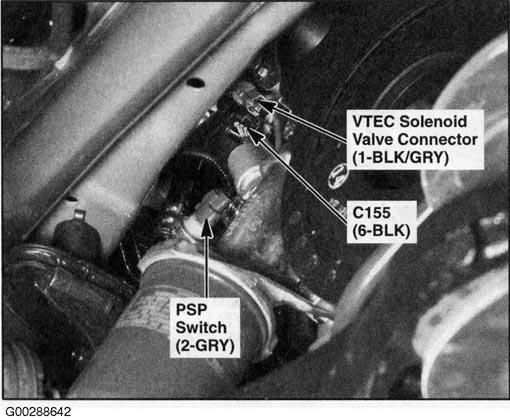

Fig 118: Right Side Of Engine

G00288642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 119: Right Side Of Engine Compartment

G00288643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

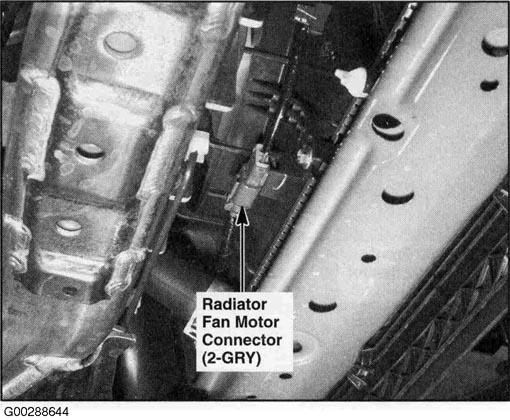

Fig 120: Left Side Of Engine Compartment

G00288644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

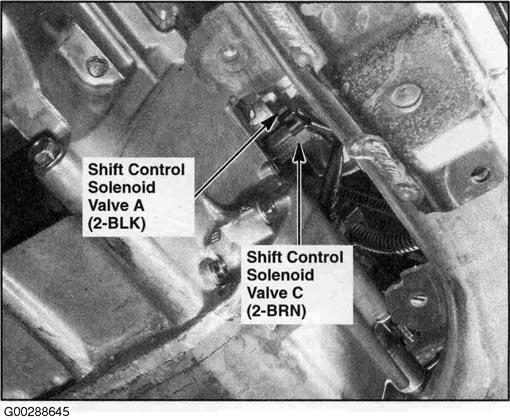

Fig 121: Transmission Housing (A/T)

G00288645

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Transmission Housing (M/T)

G00288646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

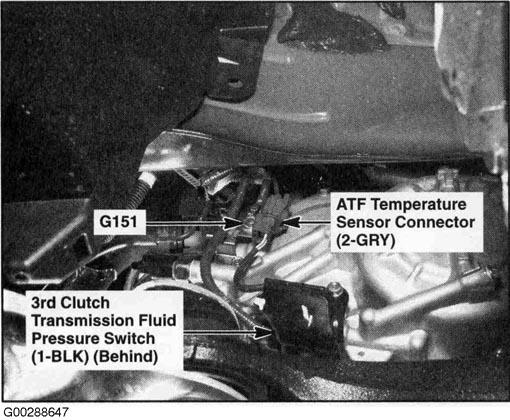

Fig 123: Transmission Housing (A/T)

G00288647

Courtesy of AMERICAN HONDA MOTOR CO., INC.

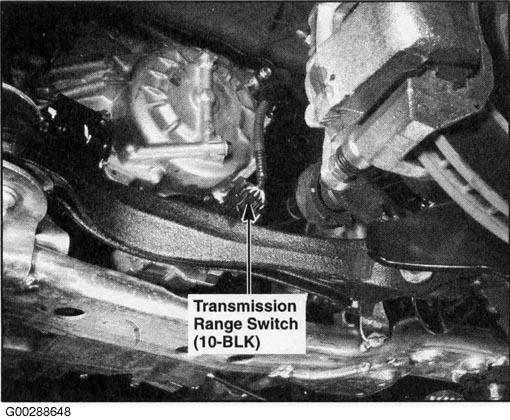

Fig 124: Transmission Housing (A/T)

G00288648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Under Left Rear Of Vehicle (Right Similar)

G00288649

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Under Left Rear Of Vehicle

G00288650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

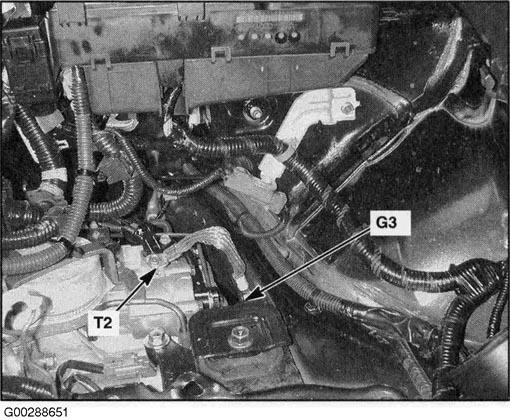

Fig 127: Left Side Of Engine Compartment (A/T)

G00288651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

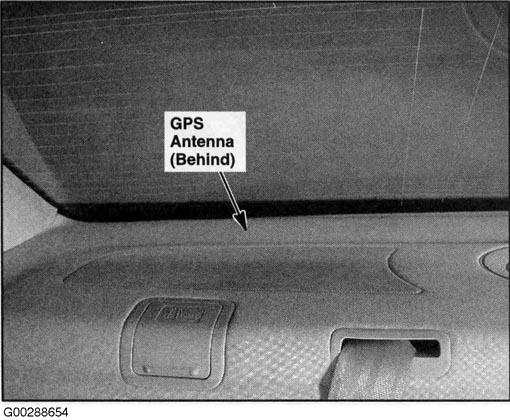

Fig 128: Right Side Of Rear Shelf (Navigation)

G00288654

Courtesy of AMERICAN HONDA MOTOR CO., INC.

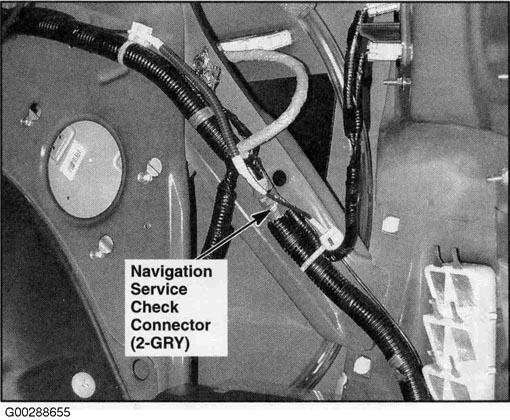

Fig 129: Right Side Of Trunk (Navigation)

G00288655

Courtesy of AMERICAN HONDA MOTOR CO., INC.

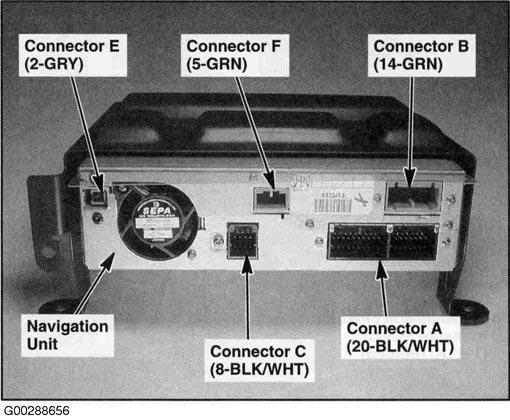

Fig 130: Behind Navigation Unit

G00288656

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Left Side Of Rear Shelf

G00288657

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Left Side Of Trunk Lid

G00288658

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 133: Behind Left Side Of Rear Bumper (Right Side Similar)

G00288659

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Rear Of Roof

G00288613

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Under-Dash Fuse/Relay Box

G00292061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

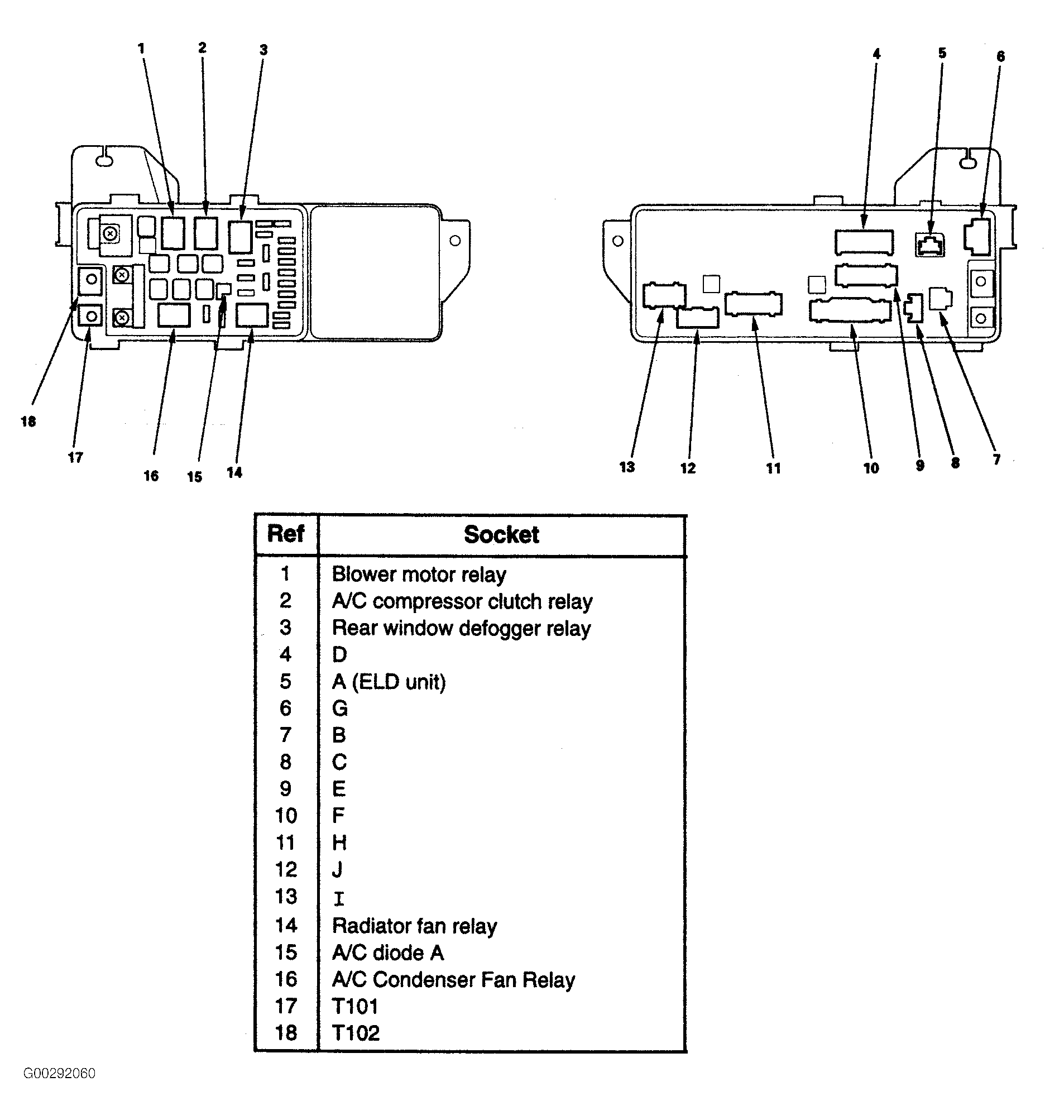

Fig 136: Under-Hood Fuse/Relay Box

G00292060

Courtesy of AMERICAN HONDA MOTOR CO., INC.
