Audio-HVAC Display Module Assembly Removal/Installation

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.

Make sure you have the anti-theft codes for the radio and navigation system, then write down the channels for the XM radio's presets.
Remove the center console rear section (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION ) and center console panel (see CENTER CONSOLE PANEL REMOVAL/ INSTALLATION ).
Remove the upper panel (see DRIVER'S DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
Remove the screws and bolts, then pull out the audio-HVAC display module assembly (A).

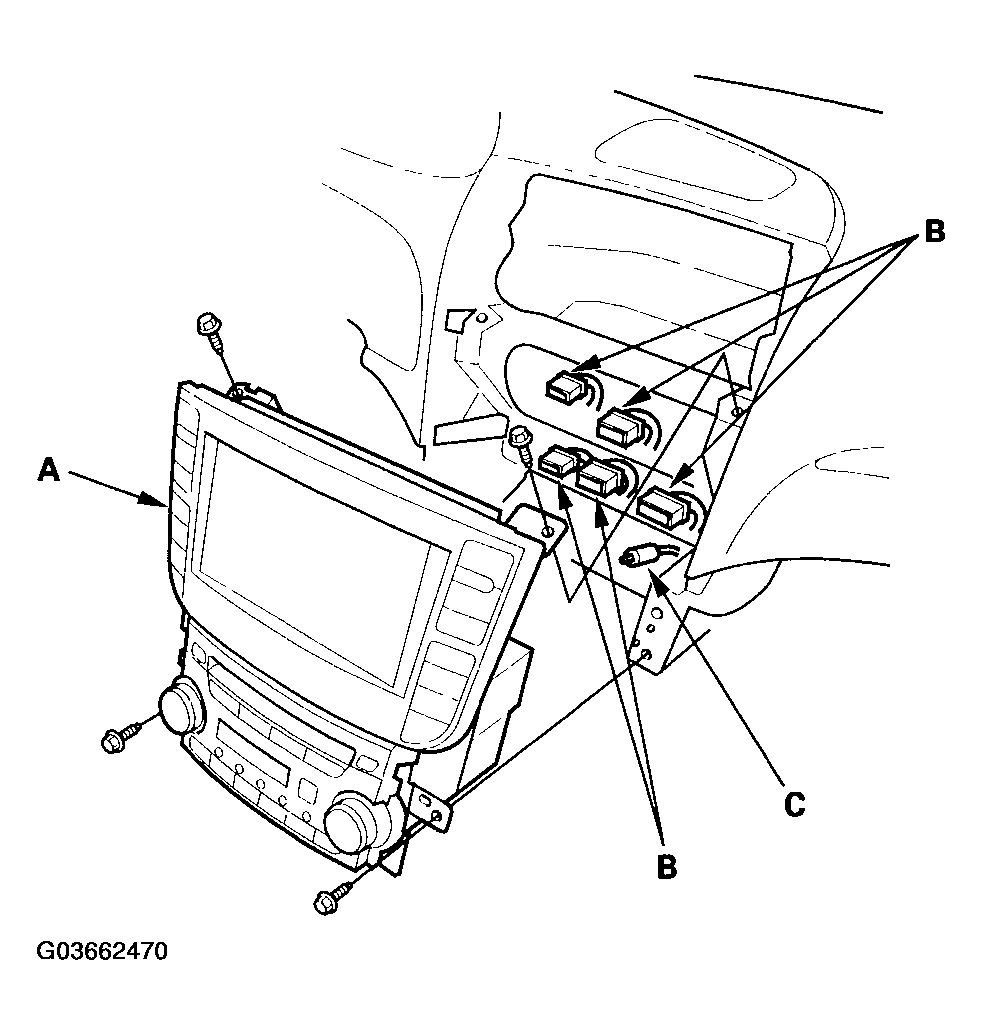

Fig 1: Identifying Audio-HVAC Display Module Assembly (A), Connectors (B) And Antenna Sublead (C)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (B) and antenna sublead (C), then remove the audio-HVAC display module assembly.
Install the audio-HVAC display module assembly in the reverse order of removal, and note these items:
- Make sure all connectors and antenna lead are secure.
- Enter the anti-theft code for the radio, then enter the customer's XM radio channel presets, and set the clock.
- If necessary, enter the navigation system anti-theft code.
