Display Panel Control Unit Removal/Installation

Remove the audio-HVAC display module assembly (see AUDIO-HVAC DISPLAY MODULE ASSEMBLY REMOVAL/INSTALLATION ).
Remove the screws and bolts, then separate the audio unit (A) and display panel control unit (B).
NOTE: To avoid the damage, remove the screws (C) first, then remove the bolts (D).

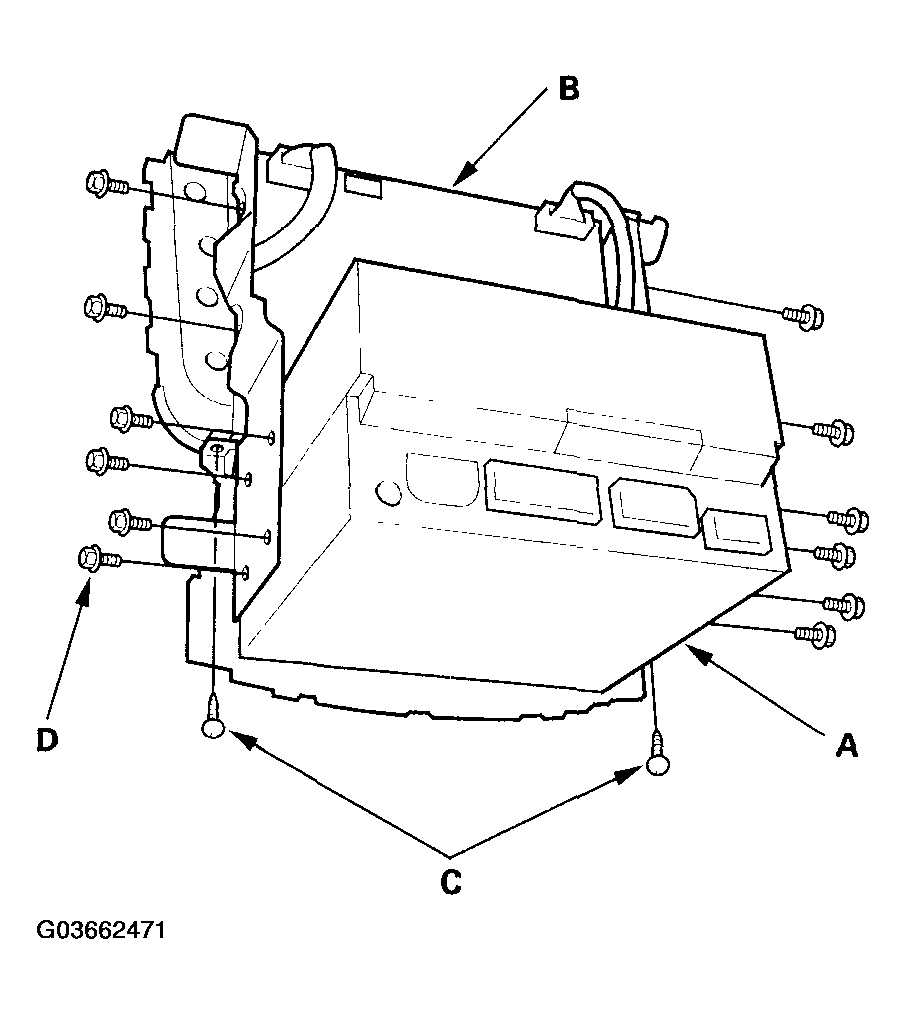

Fig 1: Identifying Audio Unit (A), Display Panel Control Unit (B), Screws (C) And Bolts (D)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio unit to the display panel control unit in the reverse order of removal.
