Starter Overhaul: Disassembly/Reassembly: Notes

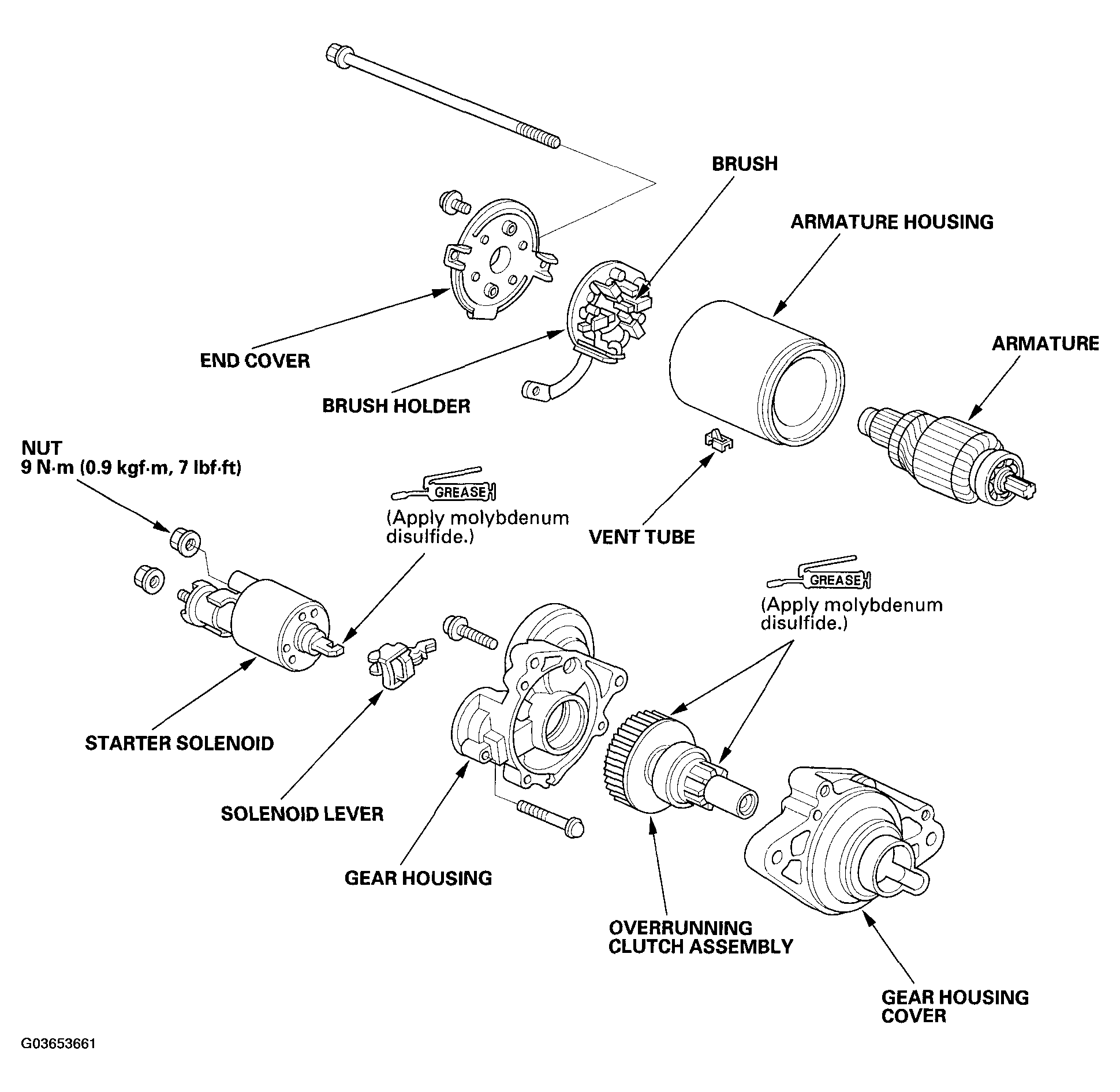

Fig 1: Starter Overhaul Replacement Components With Torque Specifications
G03653661Courtesy of AMERICAN HONDA MOTOR CO., INC.
