Ignition Coil Removal/Installation

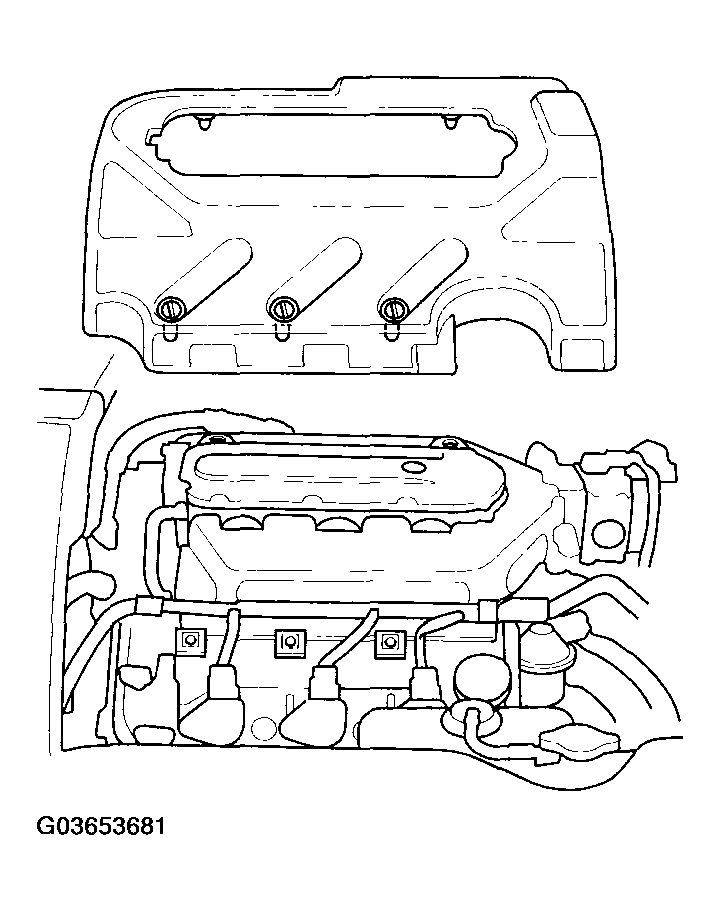

Remove the intake manifold cover.

Fig 1: Removing Intake Manifold Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

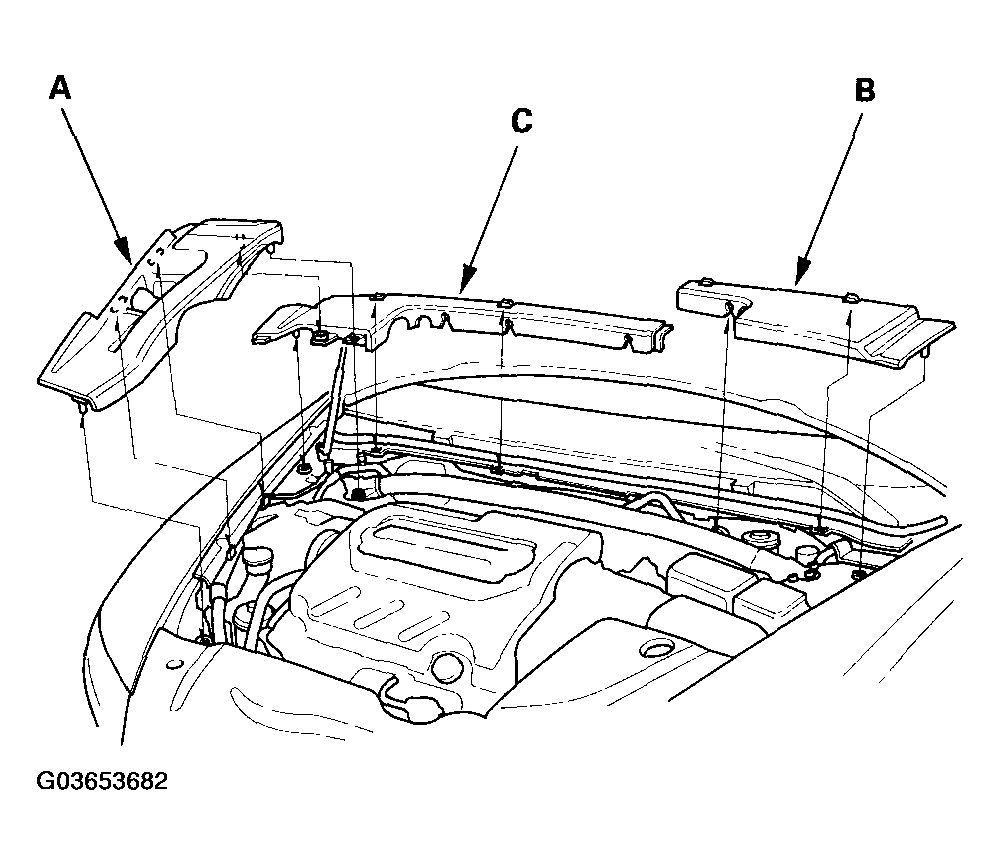

Remove the right side engine compartment cover (A), then remove the left rear engine compartment cover (B) and right rear engine compartment cover (C).

Fig 2: Removing Right Side Engine Compartment Cover And Left & Right Rear Engine Compartment Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When removing the No. 6 coil you must remove the reserve tank heat shield and reserve tank.

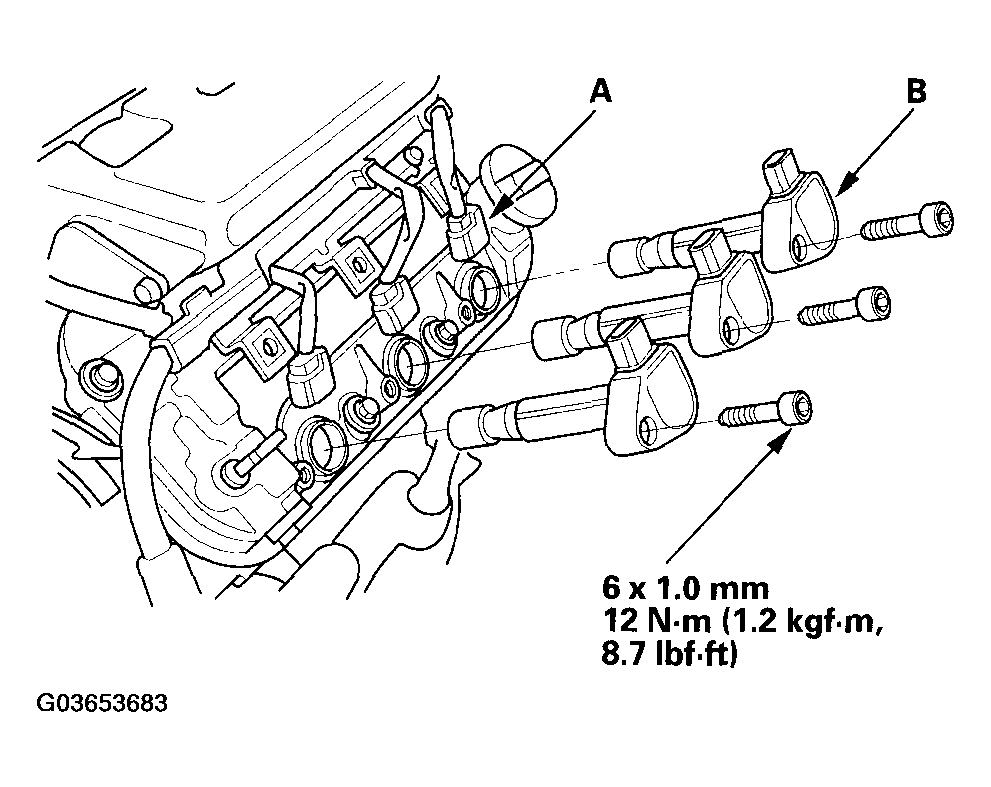

Disconnect the ignition coil connectors (A), then remove the ignition coils (B).

Fig 3: Removing Ignition Coils
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coils in the reverse order of removal.
