Throttle Actuator Control Module Replacement

  1. Remove the glove box and panel (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Disconnect the throttle actuator control module 16P connector (A).

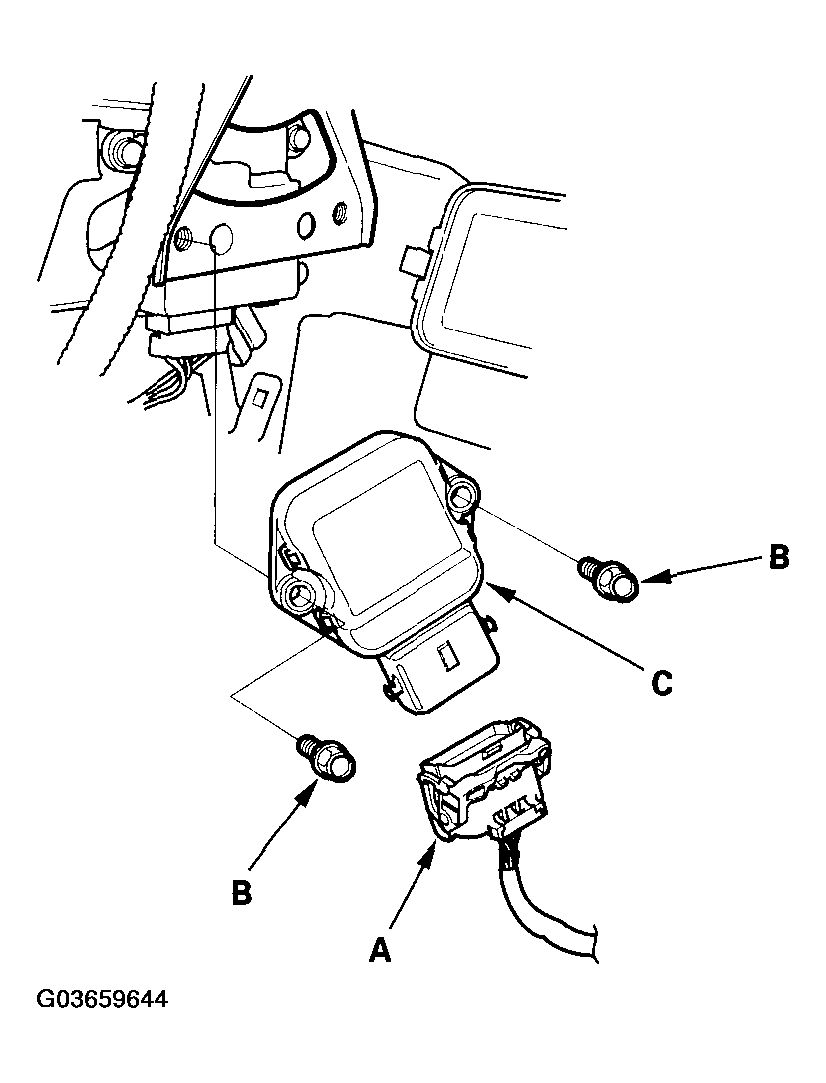

    Fig 1: Disconnecting Throttle Actuator Control Module 16P Connector
    G03659644Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B), and the throttle actuator control module (C).
  4. Install the control module in the reverse order of removal.
