Fuel Line Inspection

Check the fuel system lines and hoses, for damage, leaks, and deterioration. Replace any damaged parts.

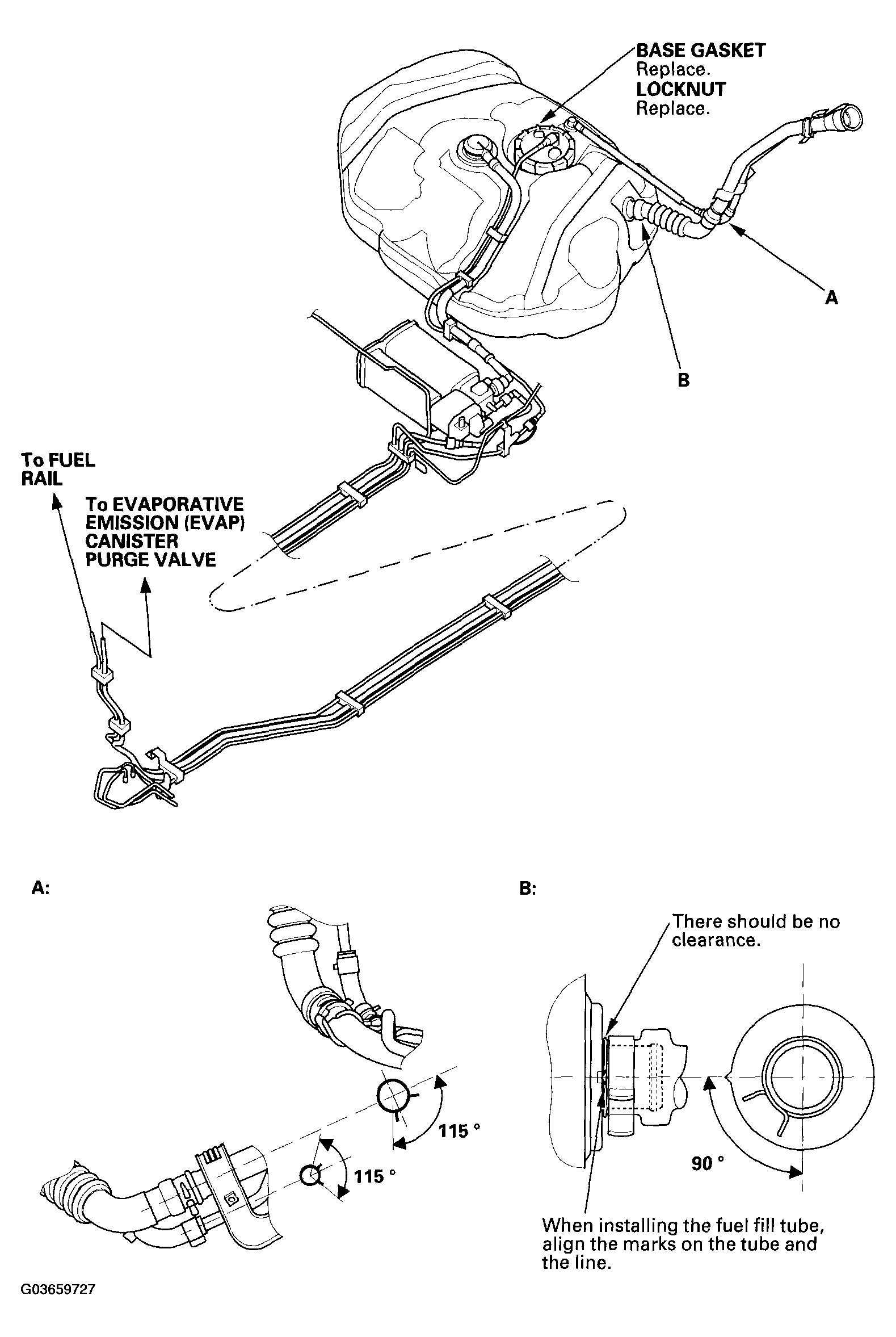

Fig 1: Locating Fuel Line

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps and retighten if necessary.

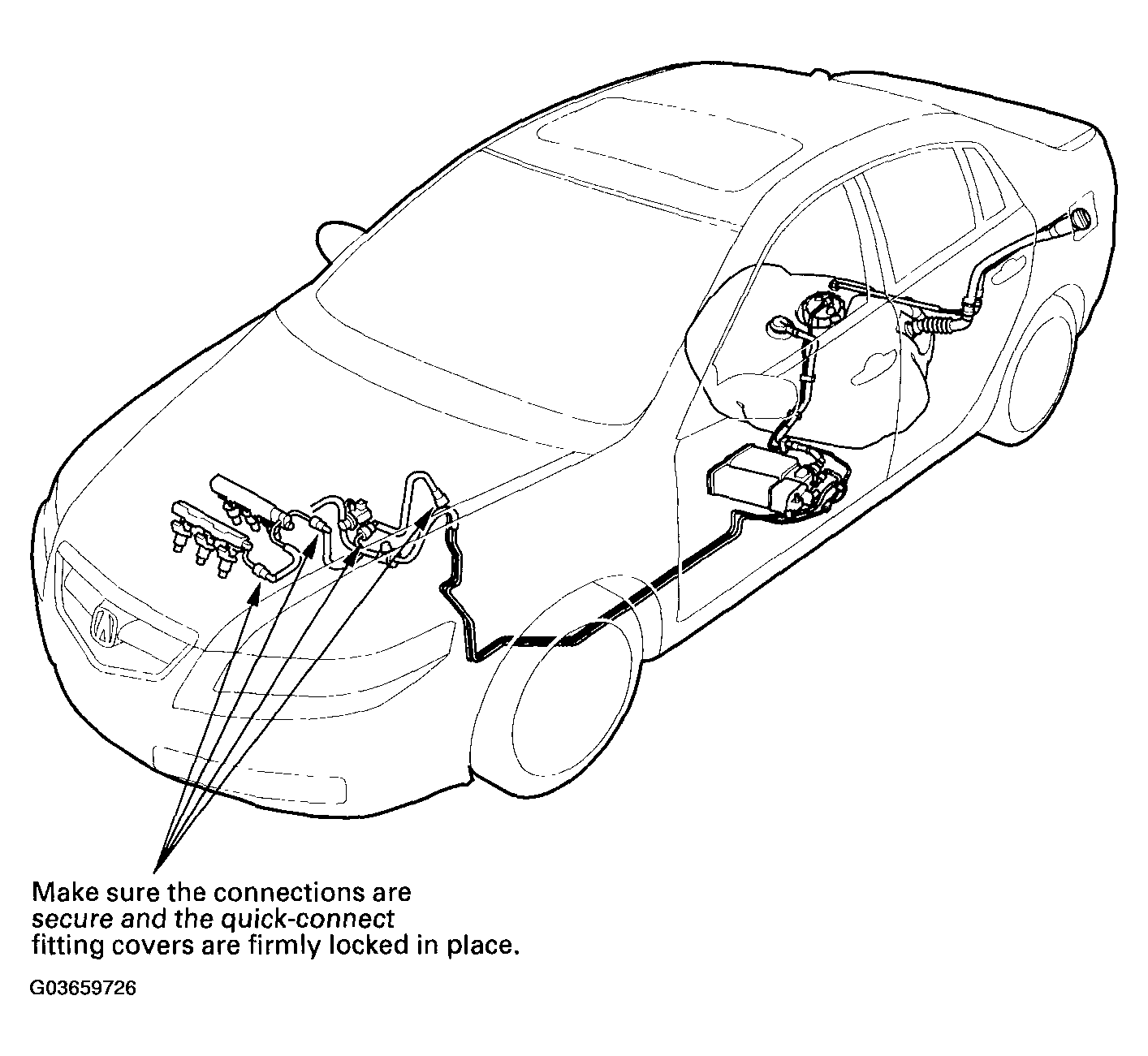

Fig 2: Identifying Fuel Line

Courtesy of AMERICAN HONDA MOTOR CO., INC.
