Fuel Tank Replacement: Installation

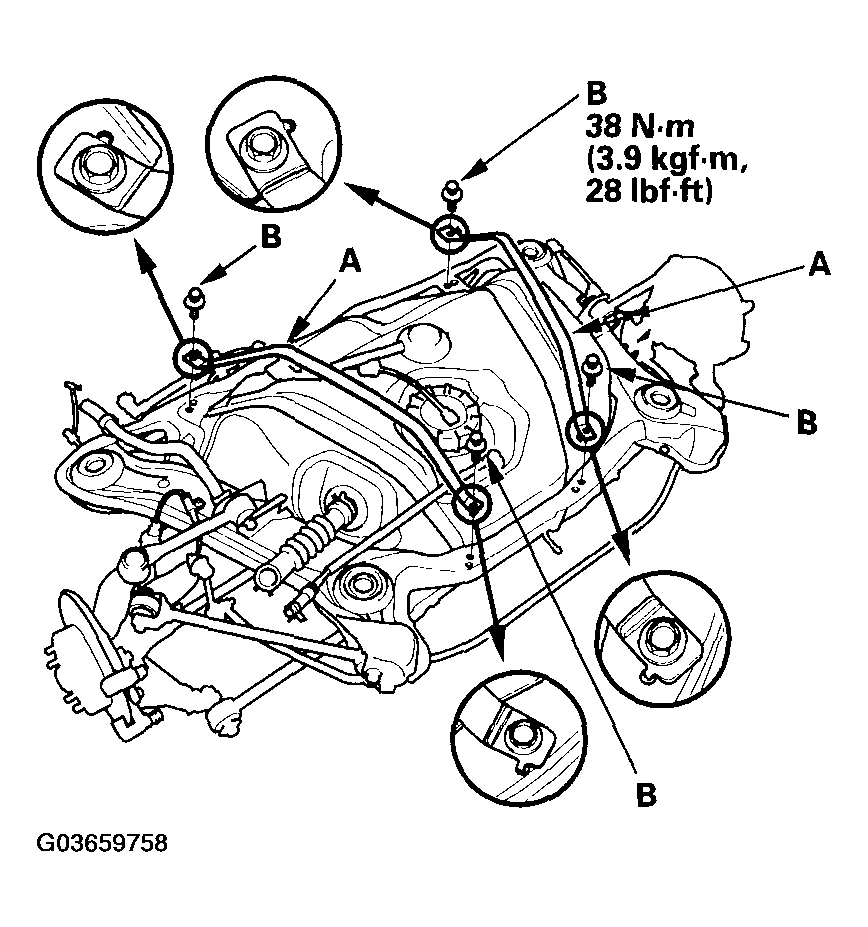

  1. Install the tank straps (A), and tighten the bolts (B).
    Fig 1: Installing Tank Straps
    G03659758Courtesy of AMERICAN HONDA MOTOR CO., INC.

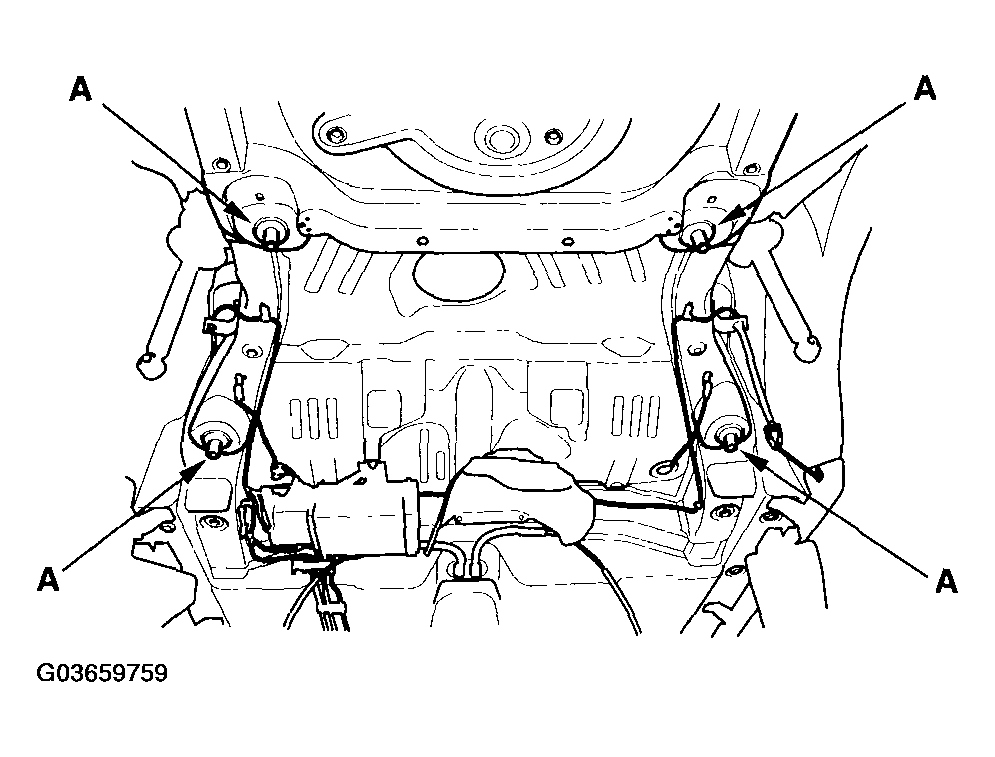

  2. Place a jack or support under the rear suspension subframe. Install the rear suspension subframe, aligning the pins (A) with the holes in the subframe.
    Fig 2: Aligning Pins With Holes In Subframe
    G03659759Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the remaining parts in the reverse order of removal.
  4. After installation, do a wheel alignment (see WHEEL ALIGNMENT ).
