PCV Valve Replacement

  1. Remove the intake manifold cover (see step 1 on REMOVAL ).
  2. Remove the bolt (A).
    NOTE: Take care not to spill oil on the hot exhaust manifold.
  3. Remove the PCV valve (B).
  4. Install the valve in the reverse order of removal
    NOTE:
    • When installing a new PCV valve, make sure the O-rings (C) are in place.
    • When installing a used PCV valve, use new O-rings (C).

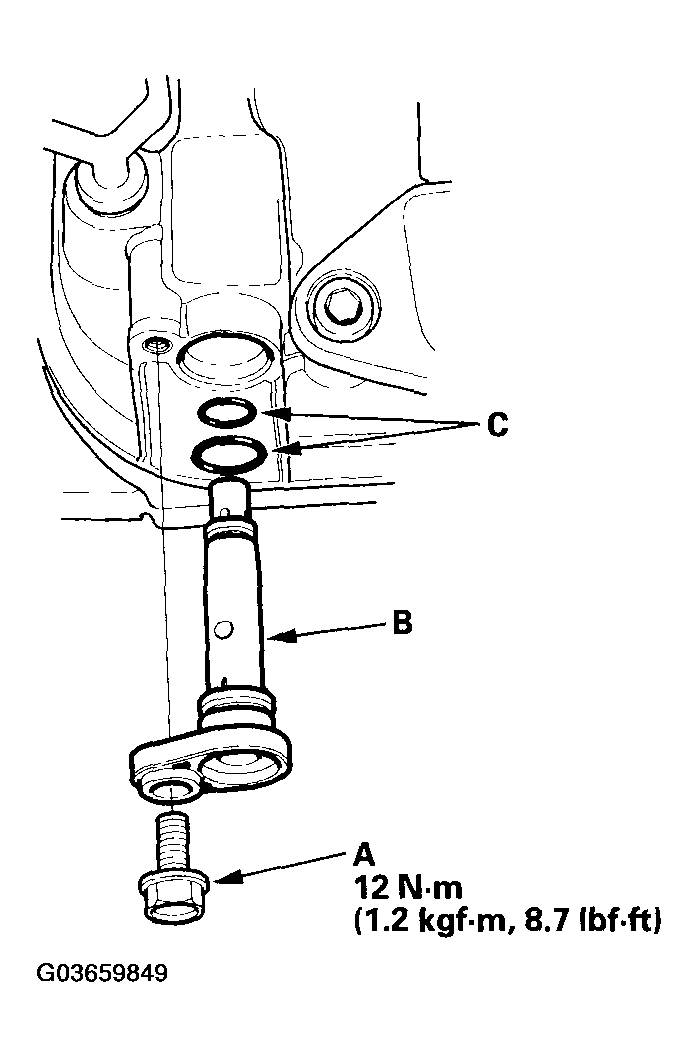

      • Fig 1: Removing Bolt, PCV Valve & Making Sure O-Rings (C) Are In Place
      G03659849Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the intake manifold cover (see step 9 on INSTALLATION ).
