MAP Sensor Replacement

  1. Remove the intake manifold cover (see step 1 on REMOVAL ).
  2. Disconnect the MAP sensor 3P connector (A).

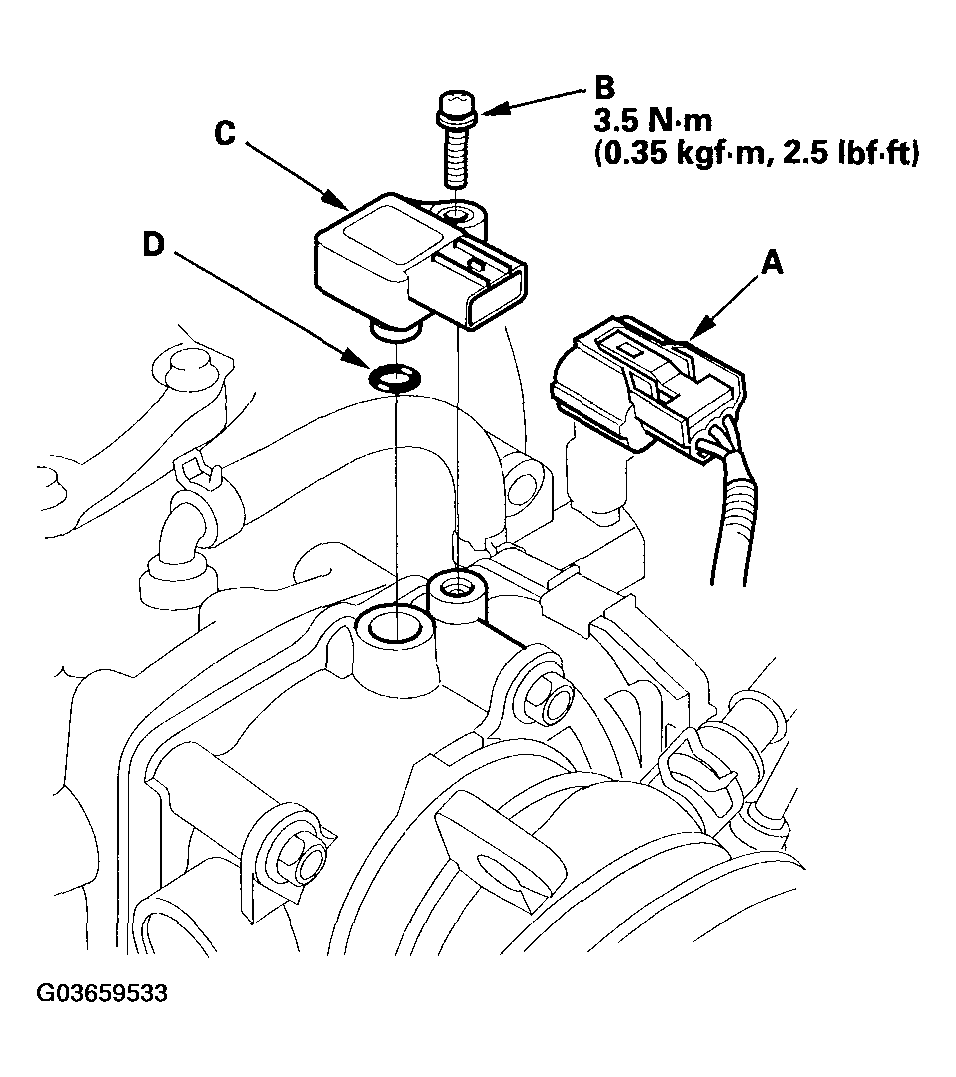

    Fig 1: Disconnecting MAP Sensor 3P Connector
    G03659533Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the sensor in the reverse order of removal with a new O-ring (D).
