Output Shaft (Countershaft) Speed Sensor Replacement

  1. Disconnect the output shaft (countershaft) speed sensor 3P connector (A).

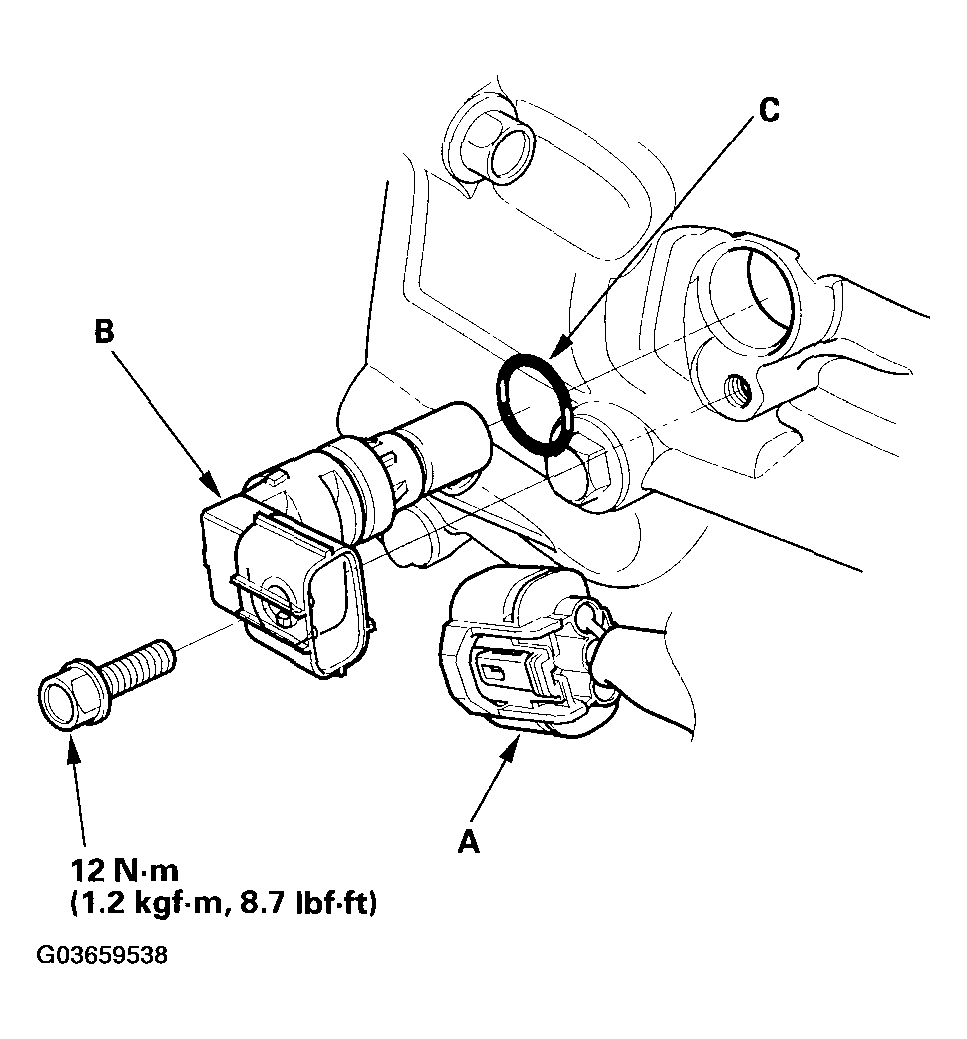

    Fig 1: Disconnecting Output Shaft Speed Sensor 3P Connector
    G03659538Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the output shaft (countershaft) speed sensor (B).
  3. Install the sensor in the reverse order of removal with a new O-ring (C).
