Park Pin Switch Replacement
- Remove the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION
).

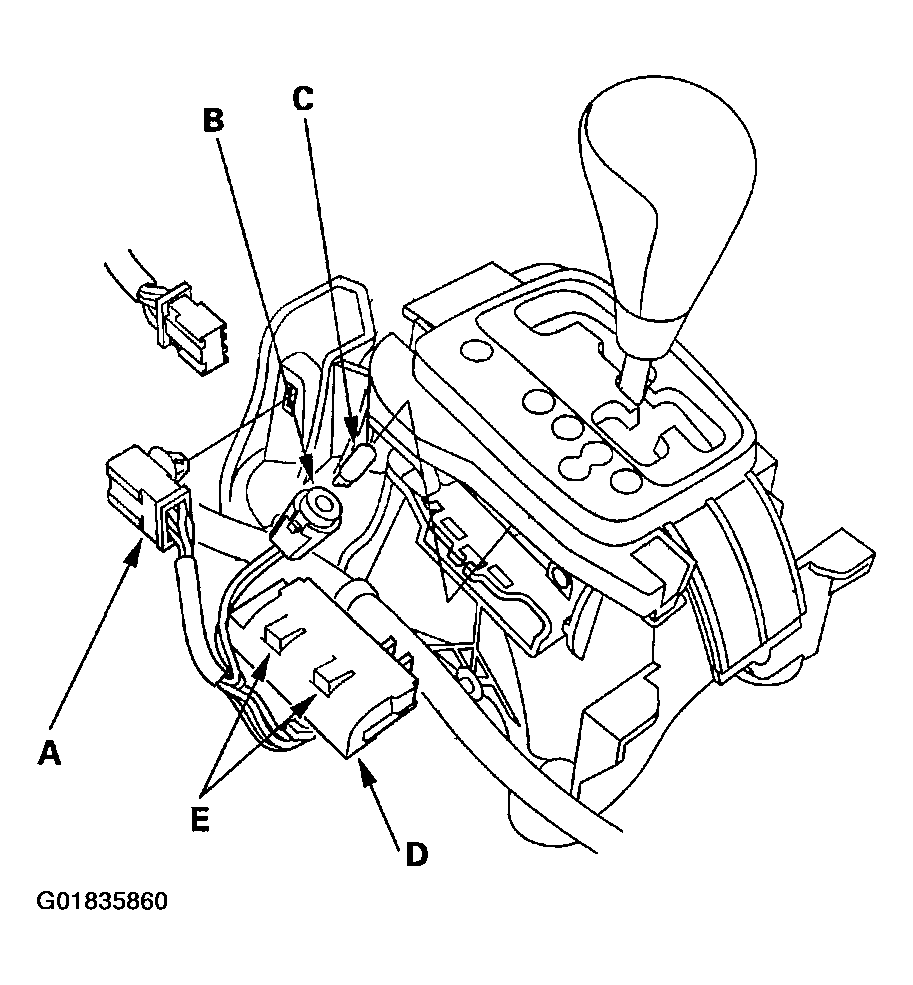

- Disconnect transmission gear selection switch/park pin switch connector (A), then remove the connector from the shift lever bracket base.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the A/T gear position indicator panel light bulb socket (B), then remove the bulb (C) from the socket.
- Remove the transmission gear selection switch/park pin switch (D) by releasing the lock tabs (E).
- Install the new switch assembly in the shift lever bracket base.
- Install the bulb in the socket, then install the socket in the bracket base.
- Install the switch connector on the bracket base, then connect the connector.
- Install the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION
).
