Shift Lock Solenoid Replacement
- Remove the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION
).

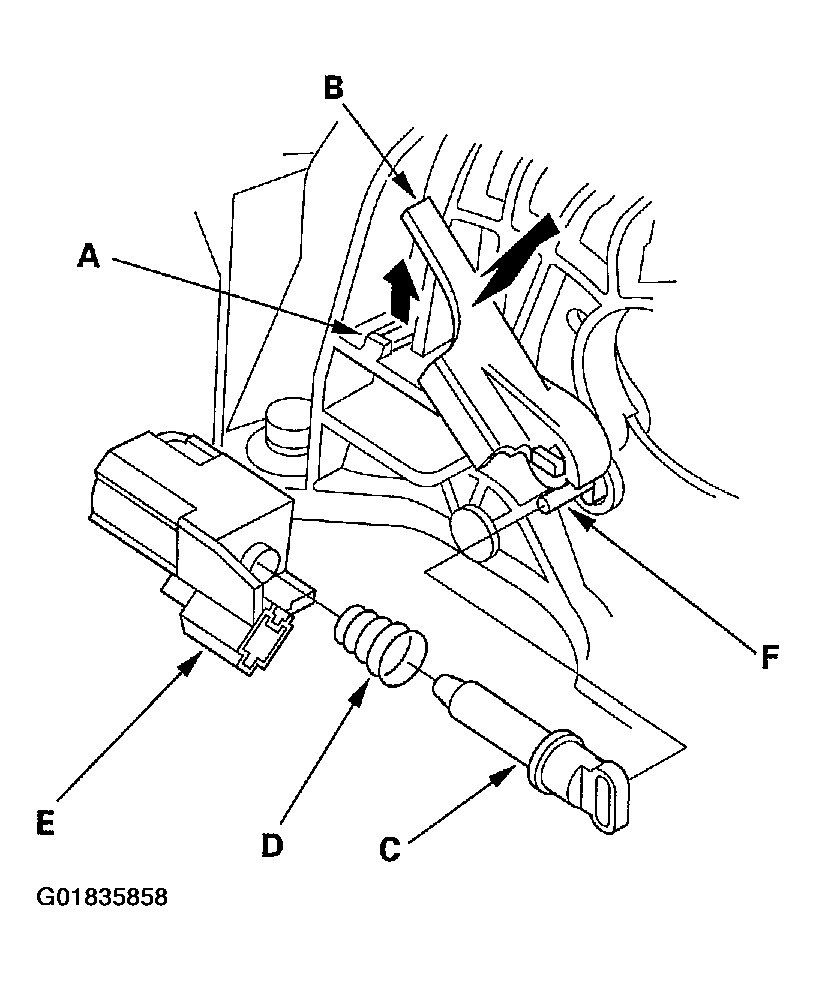

- Release the tab (A) retaining the shift lock solenoid.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Raise the shift lock solenoid bushing (B) just enough to slide the shift lock solenoid out.
- Install the shift lock solenoid plunger (C) and plunger spring (D) in the new shift lock solenoid (E).
- Apply silicon grease to joint of the shift lock solenoid plunger, if necessary.
- Install the new shift lock solenoid by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop (F).
- Install the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION
).
