Backlash Inspection

Install both axles, and place the differential assembly on V-blocks (A).

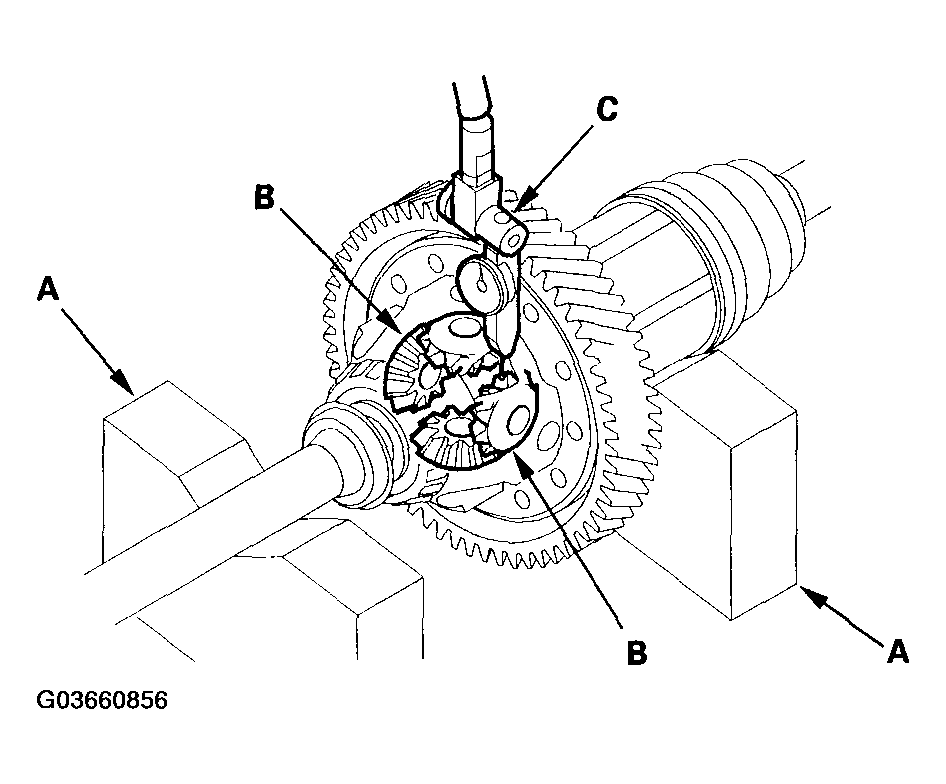

Fig 1: Identifying V-Blocks (A), Pinion Gears (B) And Dial Indicator (C)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the backlash of the pinion gears (B) with a dial indicator (C).
Standard: 0.05-0.15 mm (0.002-0.006 in.)
If the backlash is out of standard, replace the differential carrier.
