Transmission Range Switch Replacement

  1. Raise the vehicle, and make sure it is securely supported.
  2. Shift to the N position.
  3. Remove the transmission range switch cover.

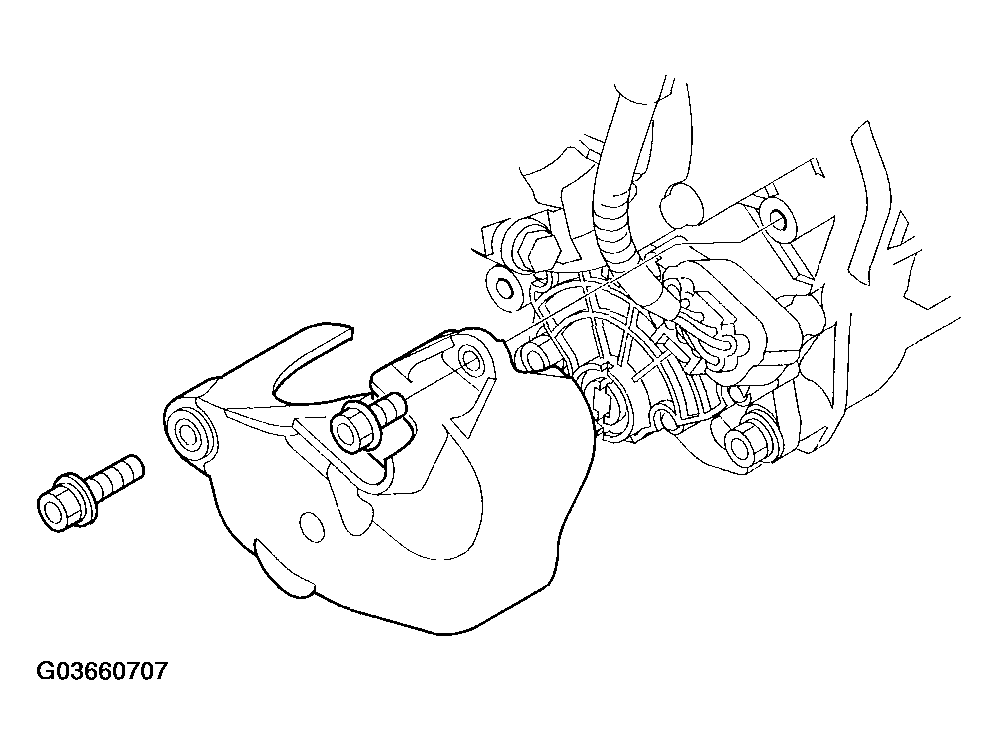

    Fig 1: Removing Transmission Range Switch Cover
    G03660707Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the transmission range switch connector.

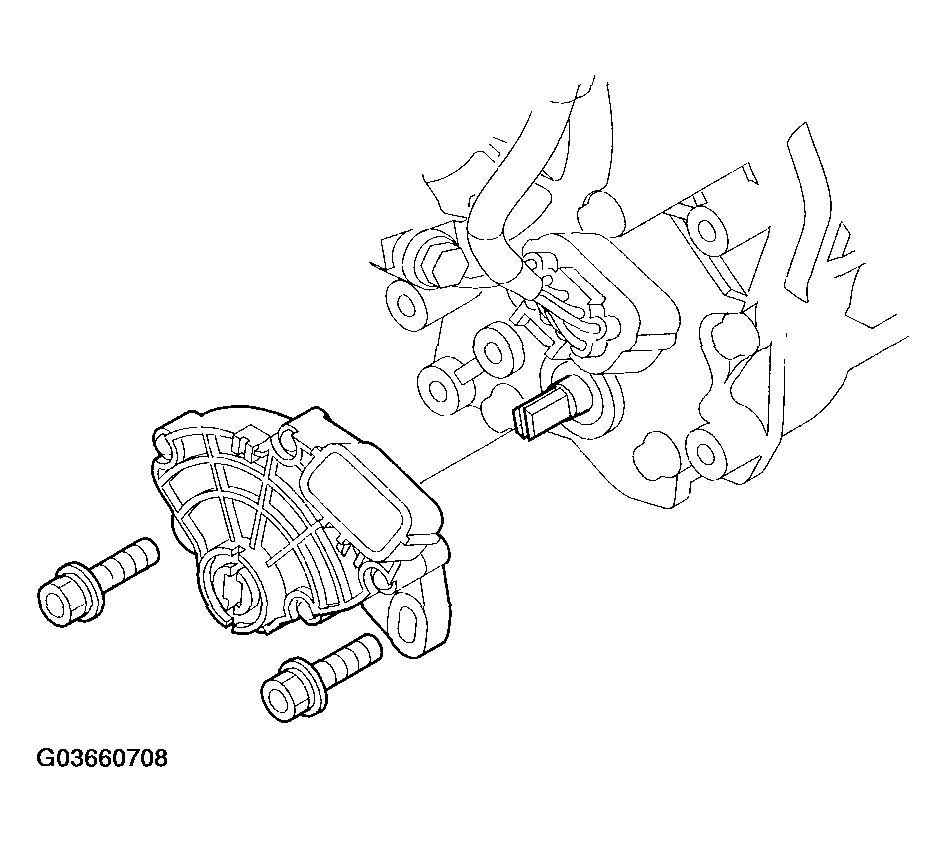

    Fig 2: Disconnecting Transmission Range Switch Connector
    G03660708Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the transmission range switch.
  6. Make sure the selector control shaft is in the N position. If necessary, move the shift lever to the N position.
    NOTE: Do not use the selector control shaft to adjust the shift position. If the selector control shaft tips are squeezed together it will cause a faulty signal or position due to play between the selector control shaft and the switch. The clearance (A) between selector control shaft tips is 2.0 mm (0.08 in.).

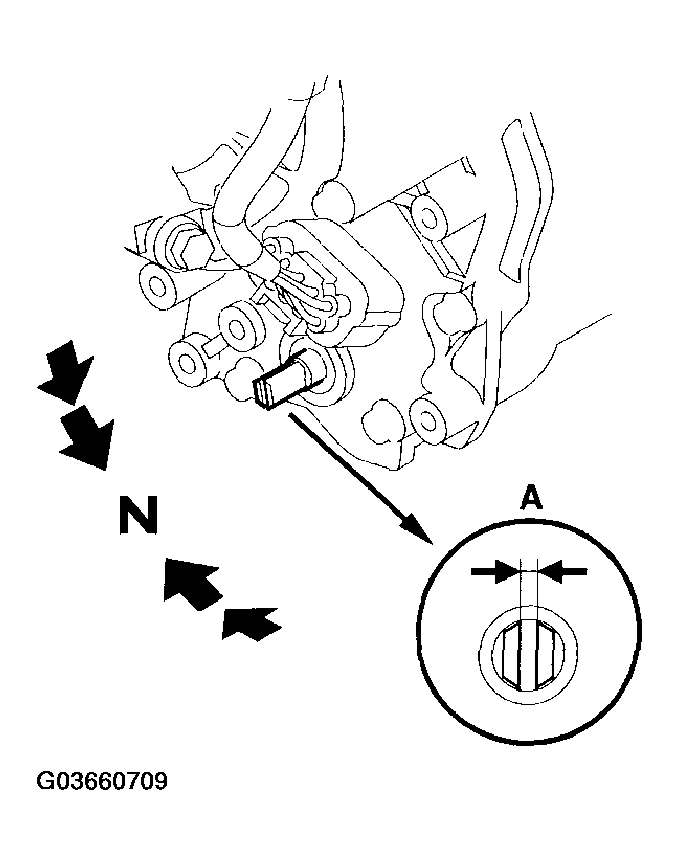

    Fig 3: Identifying Selector Control Shaft In N Position
    G03660709Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Align the cutouts (A) on the rotary-frame with the neutral positioning cutouts (B) on the transmission range switch (C), then put a 2.0 mm (0.08 in.) feeler gauge blade (D) in the cutouts to hold the switch in the N position.
    NOTE: Be sure to use a 2.0 mm (0.08 in.) blade or equivalent to hold the switch in the N position.

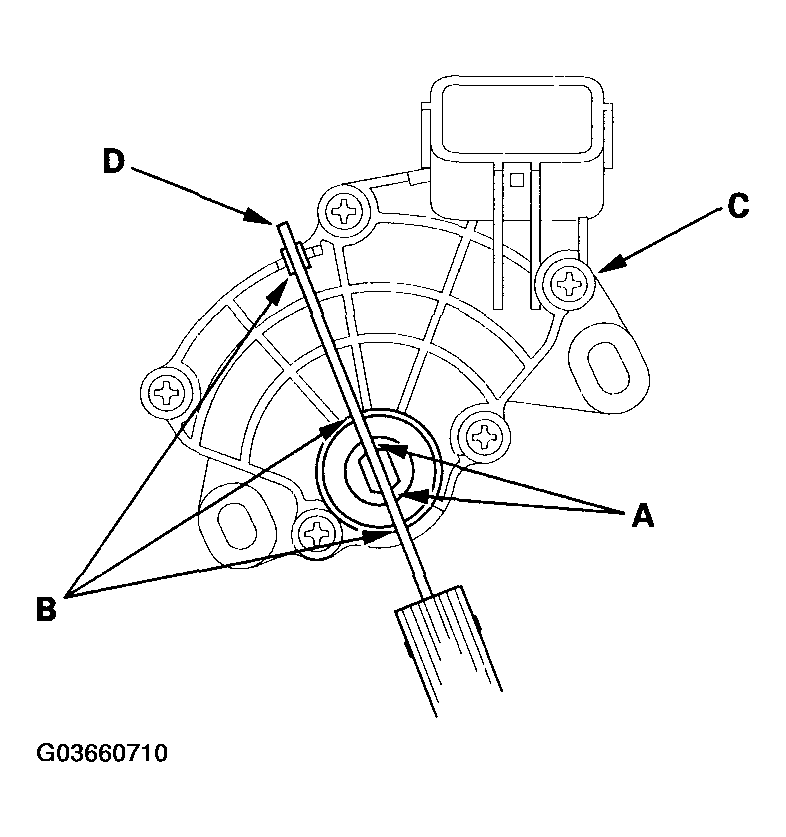

    Fig 4: Identifying Cutouts (A), Neutral Positioning Cutouts (B), Transmission Range Switch (C) And Feeler Gauge Blade (D)
    G03660710Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.08 in.) blade (C).

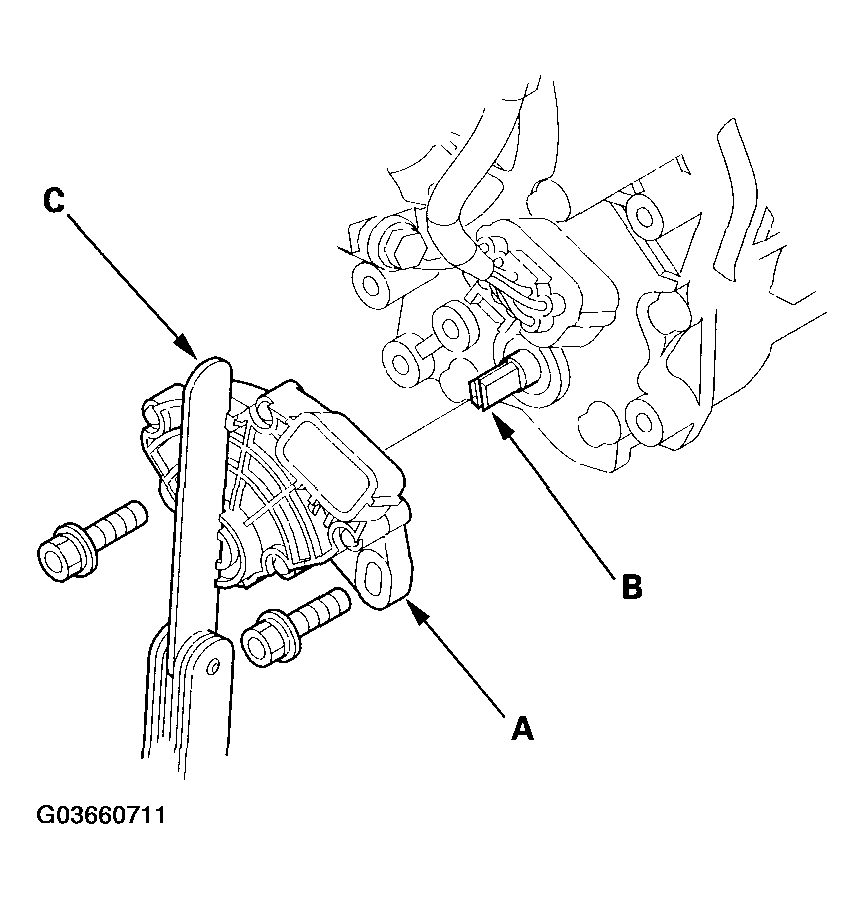

    Fig 5: Identifying Transmission Range Switch (A), Selector Control Shaft (B) And Blade (C)
    G03660711Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Tighten the bolts on the transmission range switch while you continue to hold the N position. Do not move the transmission range switch when tightening the bolts. Remove the feeler gauge.

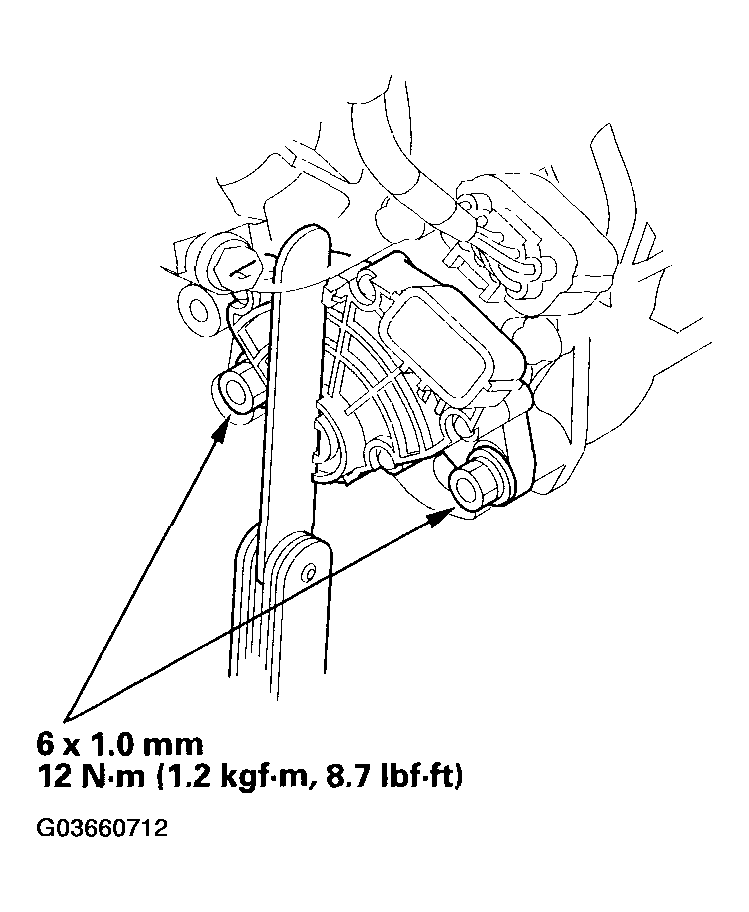

    Fig 6: Tightening Transmission Range Switch Bolts
    G03660712Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Connect the connector securely.
  11. Turn the ignition switch ON (II). Move the shift lever through all positions, and check the transmission range switch synchronization with the A/T gear position indicator.
  12. Check that the engine will start in the P and N positions, and will not start in any other shift lever position.
  13. Check that the back-up lights come on when the shift lever is in the R position.
  14. Allow the front wheels to rotate freely, then start the engine, and check the shift lever operation.
  15. Install the transmission range switch cover (A).

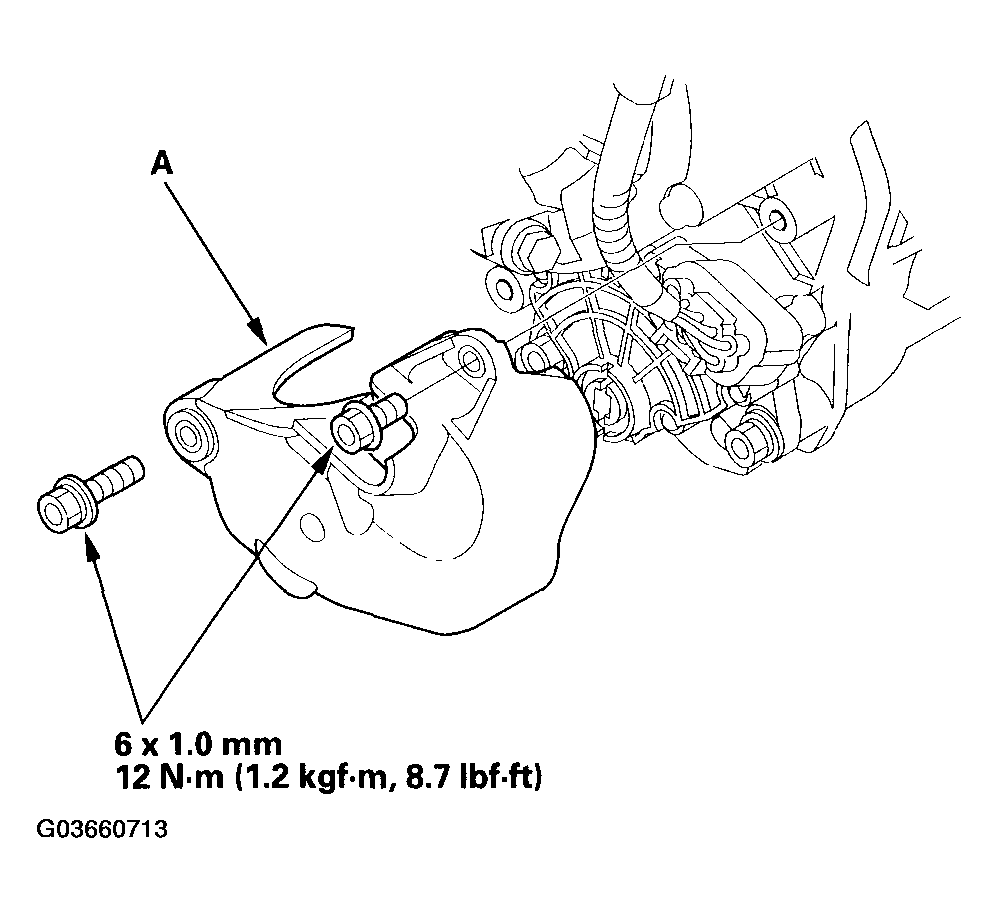

    Fig 7: Installing Transmission Range Switch Cover (A)
    G03660713Courtesy of AMERICAN HONDA MOTOR CO., INC.
