Electrical Control Locations

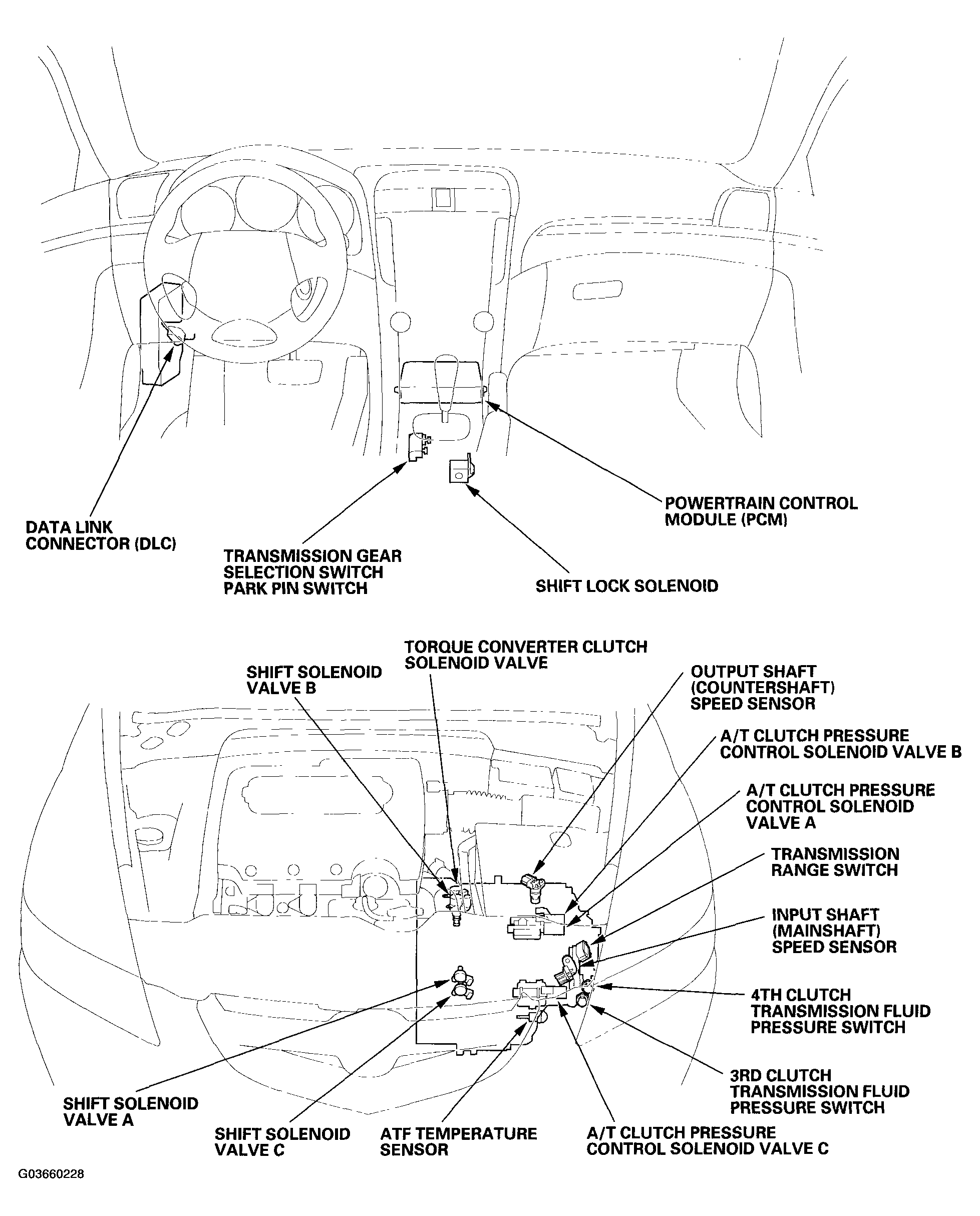

Fig 1: Identifying Electrical Control Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
