PCM Electrical Connections - 2006 Model

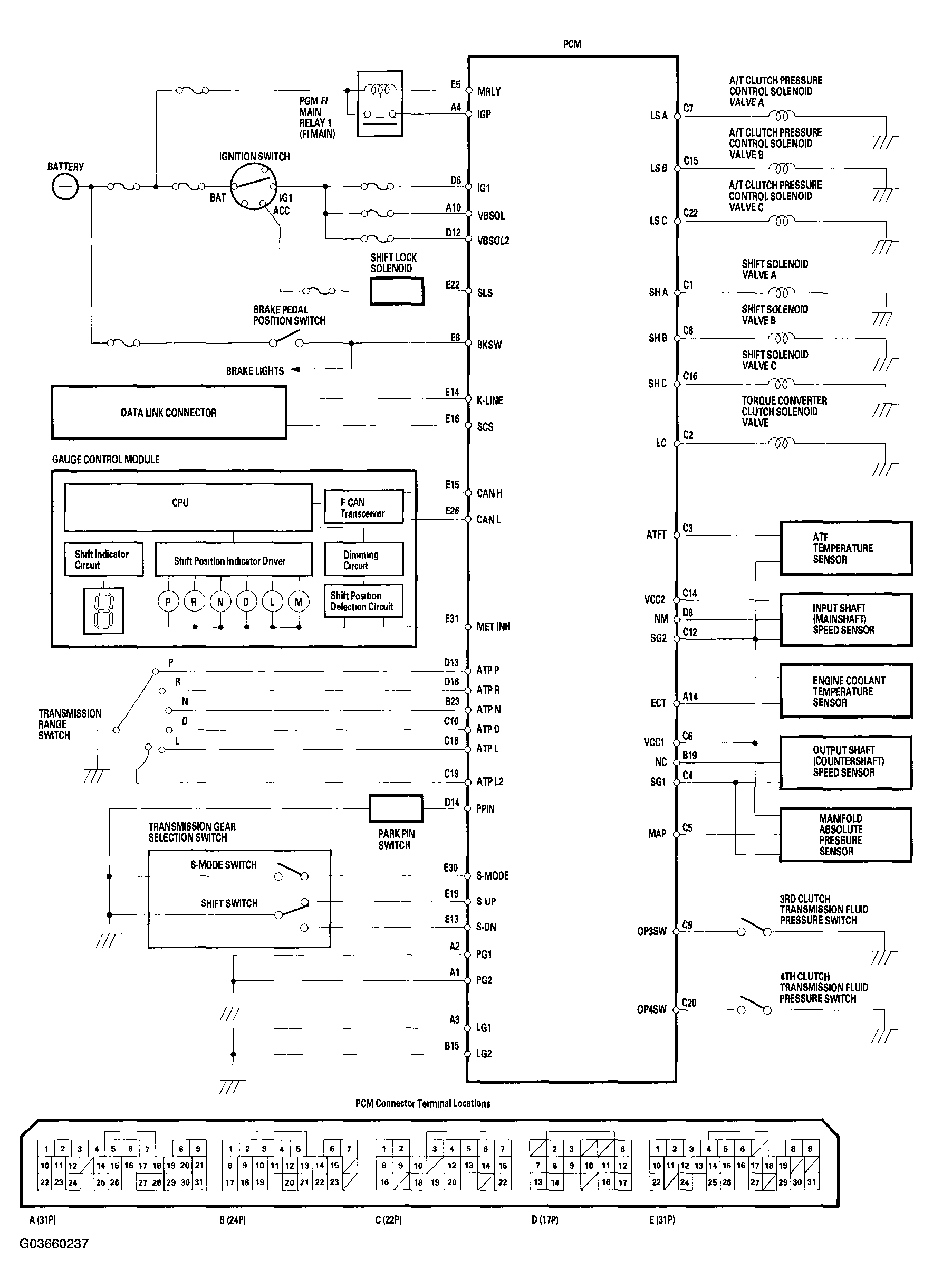

Fig 1: PCM Electrical Connections - 2006 Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
