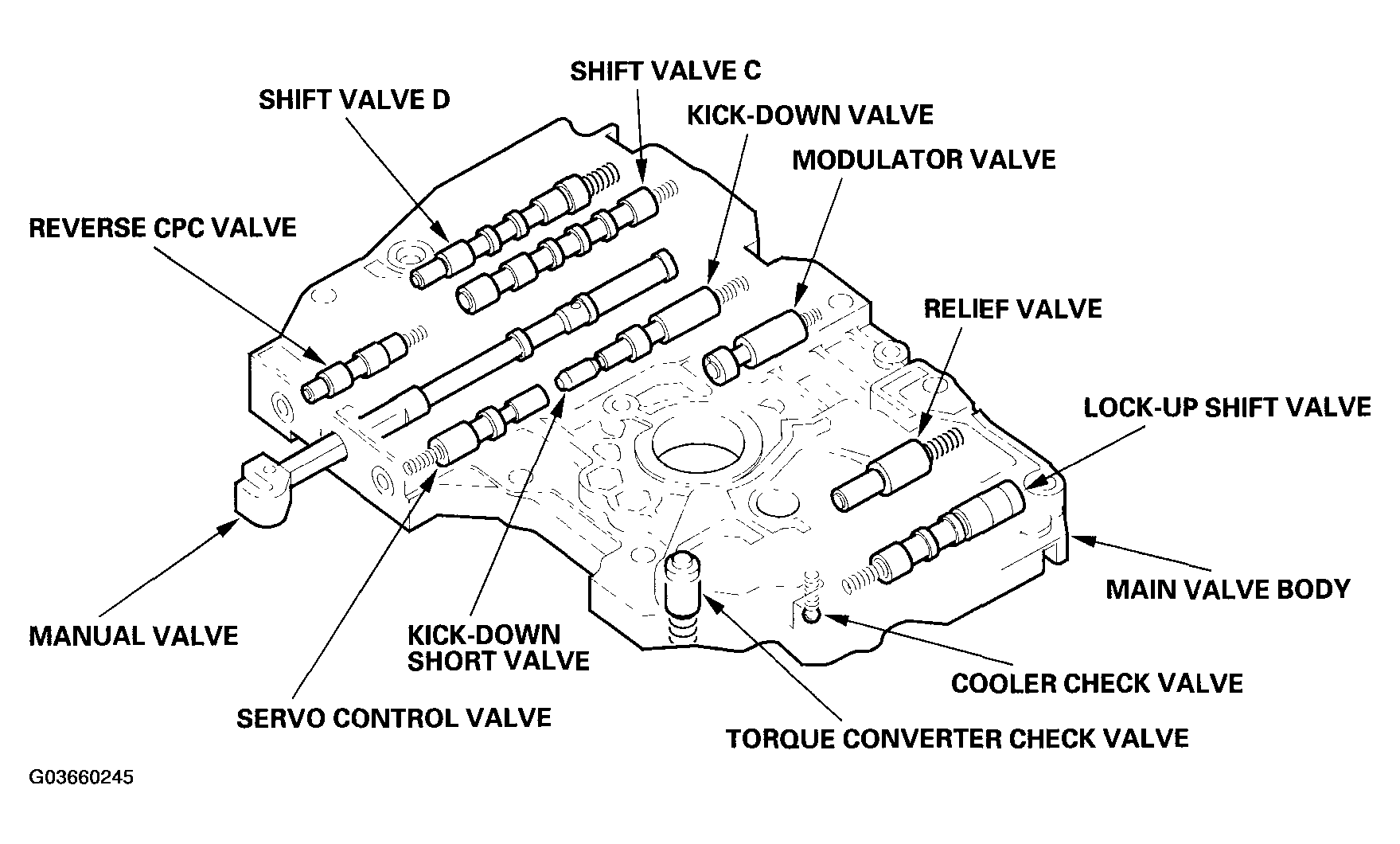

Main Valve Body
The main valve body contains the manual valve, the modulator valve, the shift valve C, the shift valve D, the servo control valve, the cooler check valve, the torque converter check valve, the reverse CPC valve, the lock-up shift valve, the relief valve, the kick-down valve, the kick-down short valve, and the ATF pump gears. The primary function of the main valve body is to switch fluid pressure on and off and to control hydraulic pressure going to the hydraulic control system.
