Regulator Valve Body

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the lock-up timing valve, and the lock-up control valve.

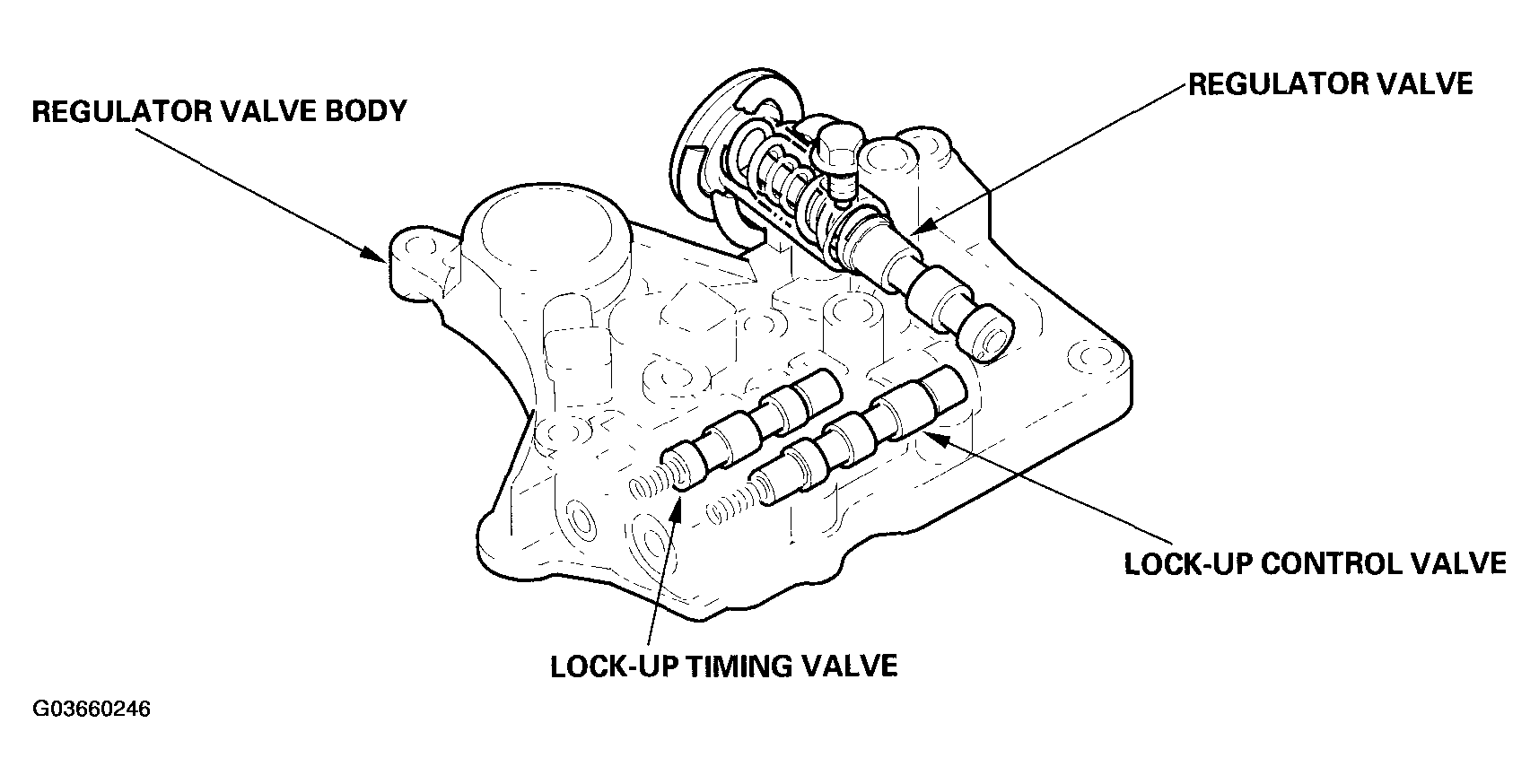

Fig 1: Identifying Regulator Valve Body Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
