N Position

Engine power transmitted from the countershaft drives the mainshaft 3rd gear, the countershaft 3rd gear, and the secondary shaft idler gear, but hydraulic pressure is not applied to the clutches. Power is not transmitted to the countershaft. In this position, the position of the reverse selector differs according to whether the shift lever shifted from the D or R position:

• When shifted from the D position, the reverse selector engages with the countershaft 5th gear and the reverse selector hub, and the 5th gear engages with the countershaft.
• When shifted from the R position, the reverse selector engages with the countershaft reverse gear and the reverse selector hub, and the reverse gear engages with the countershaft.

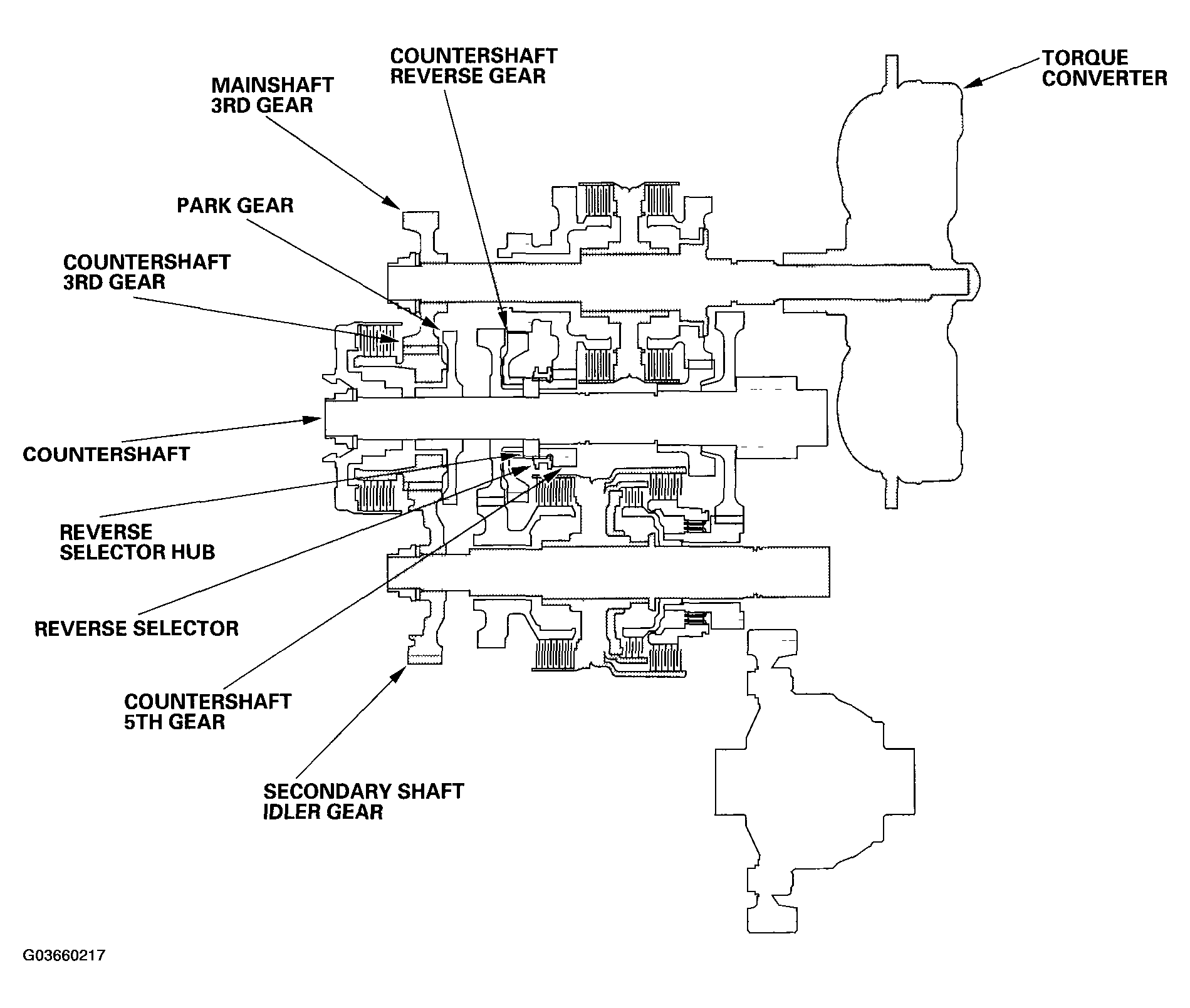

  Fig 1: Identifying Power Flow - N Position

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
