Drive Belt Inspection

Remove the right side engine compartment cover.

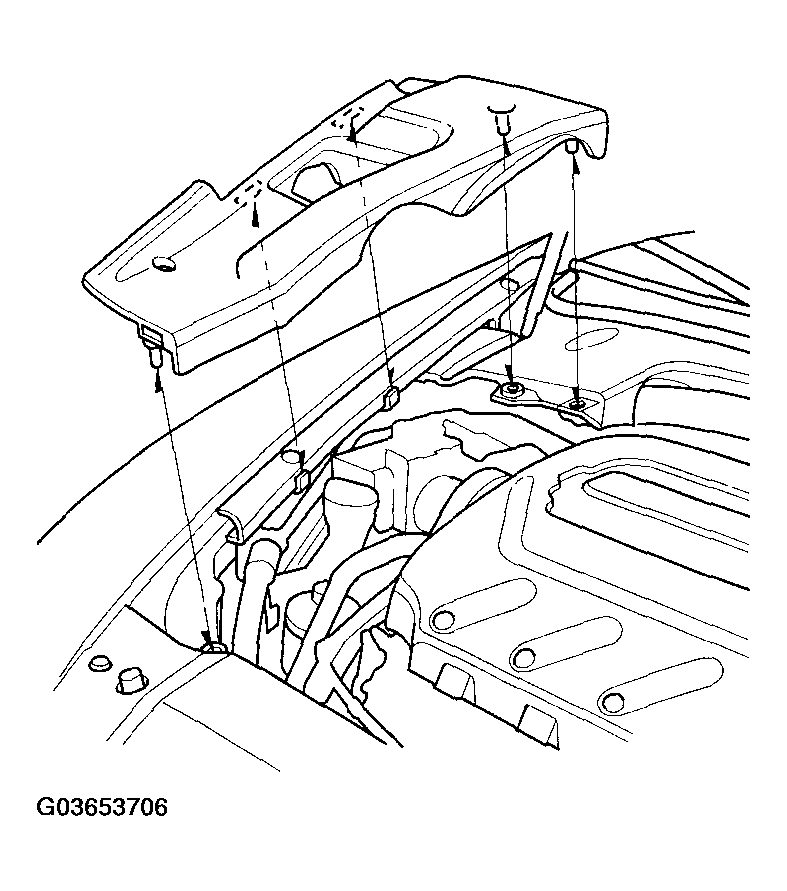

Fig 1: Removing Right Side Engine Compartment Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the belt for cracks or damage. If the belt is cracked or damaged, replace it.
Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT INSPECTION ).

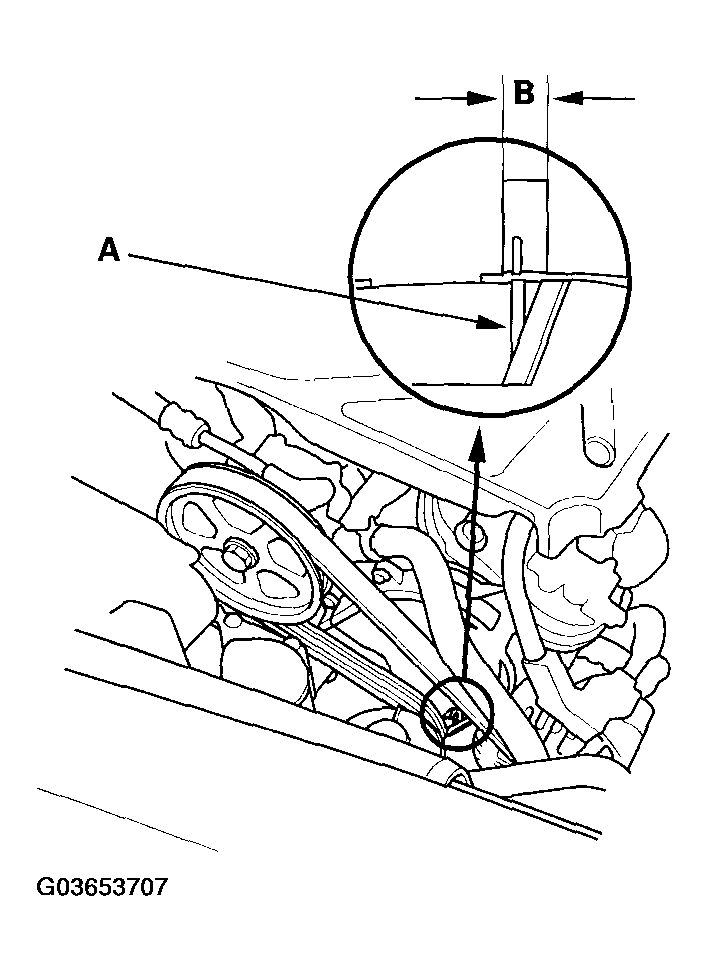

Fig 2: Checking Auto-Tensioner Indicator (A) Is Within Indicator Range (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
