Clutch Interlock Switch Test

Disconnect the clutch interlock switch 2P connector (A).

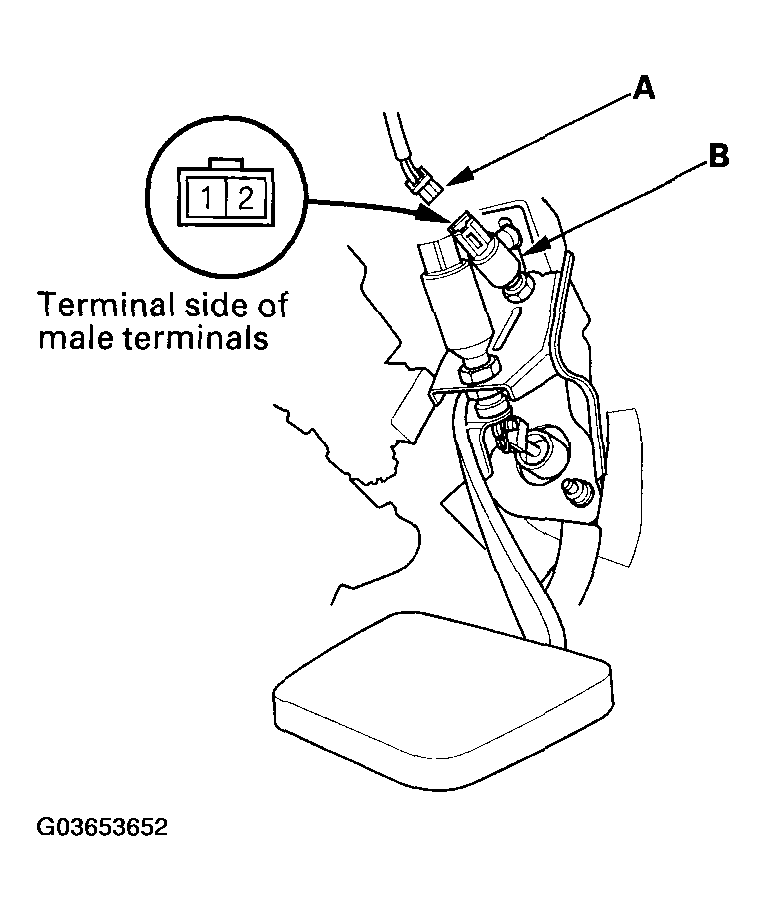

Fig 1: Disconnecting Clutch Interlock Switch 2P Connector (A)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clutch interlock switch (B).
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the clutch interlock switch.
- If OK, install the clutch interlock switch and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).

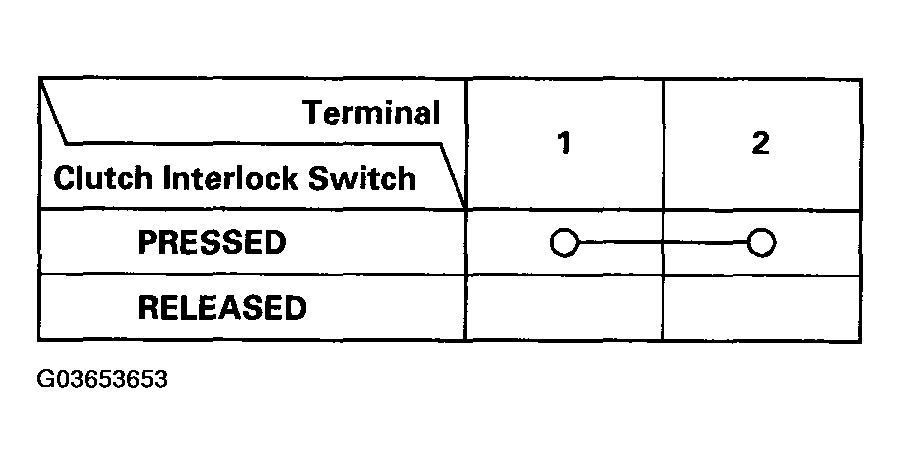

Fig 2: Clutch Interlock Switch Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
