Keyless Buzzer Test/Replacement

Keyless Buzzer Test/Replacement

1. Remove the left inner fender.

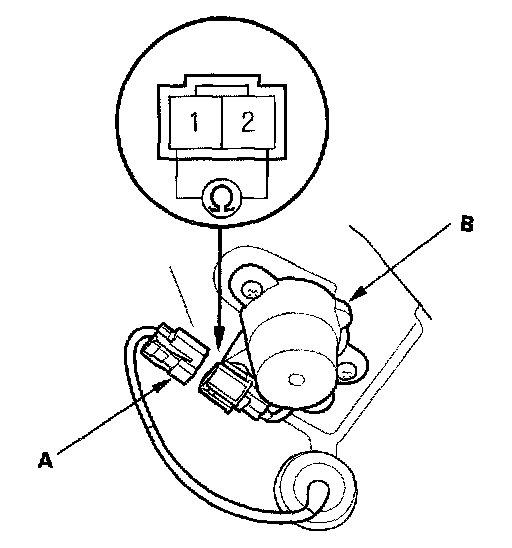

2. Disconnect the 2P connector (A) from the keyless buzzer (B).
3. Test the buzzer by check the resistance across the No. 1 and No. 2 terminals. There should be about 1.7 kOhms.

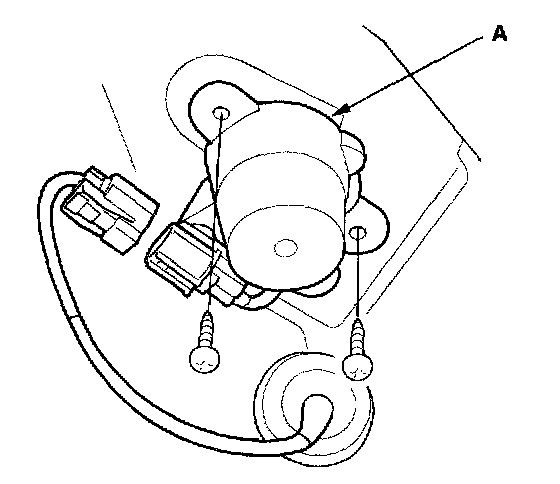

4. If the buzzer is not within the specification, remove the two mounting screws, then replace the buzzer (A).
