Cruise Control Combination Switch Test/Replacement

Cruise Control Combination Switch Test/Replacement

1. Remove the driver's airbag.




2. Remove the two screws, then disconnect the connector, and remove the switch.

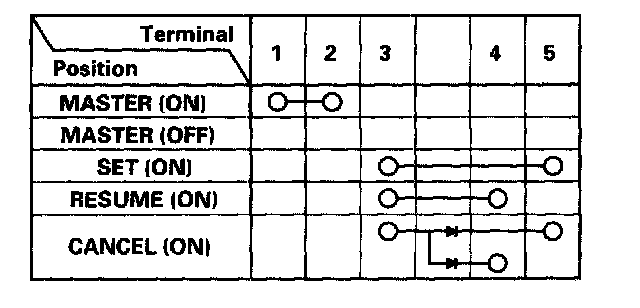

3. Check for continuity between the terminals in each switch position according to the table.
- If there is continuity, and it matches the table, but switch failure occurred on the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.
