Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Maintenance >> Filters >> Fuel Filter >> Locations
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Fuel Filter: Locations

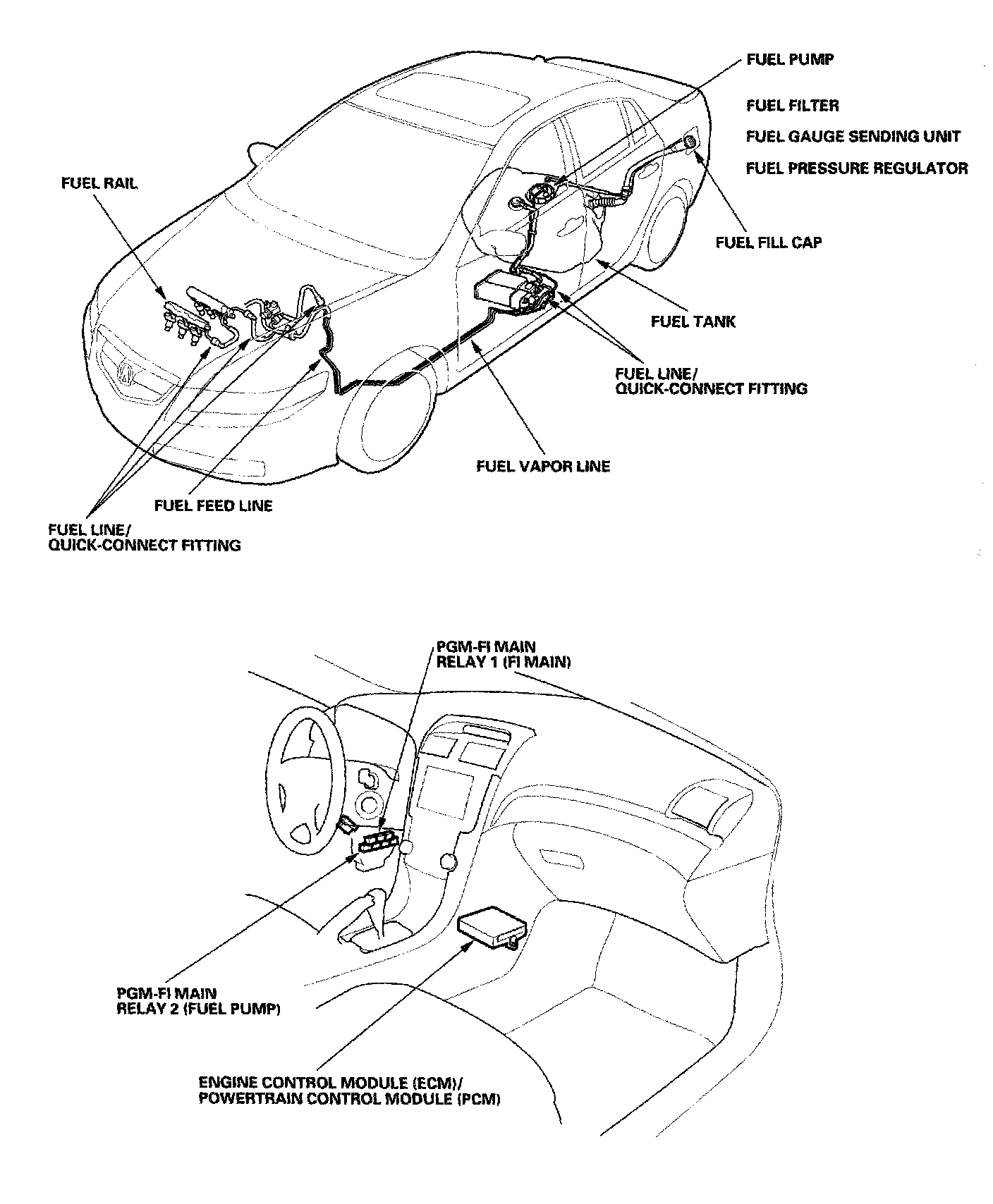

Fuel Supply System - Component Location Index:

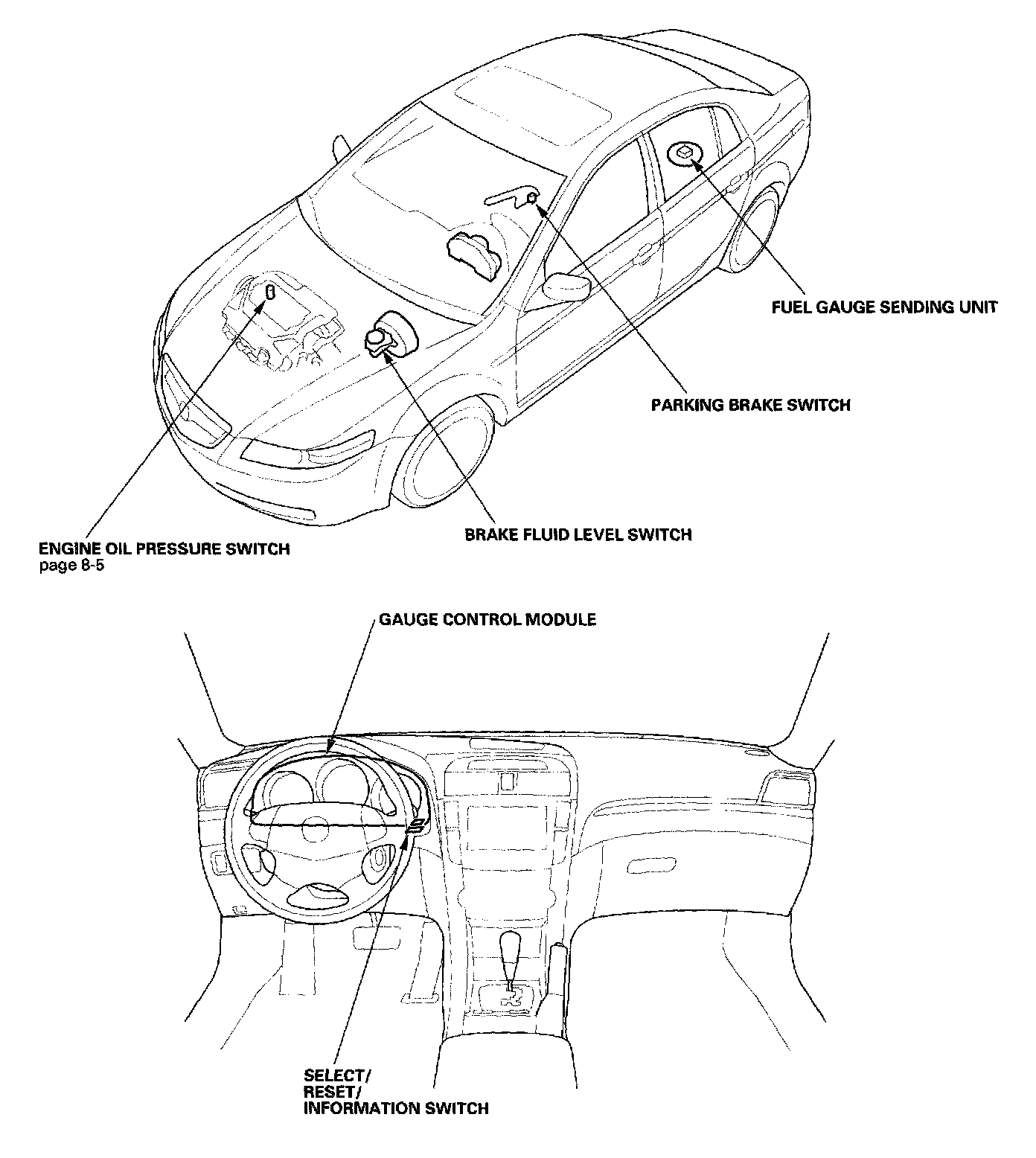

Gauges - Component Location Index:
