Coolant Temperature Sensor/Switch (For Computer): Service and Repair

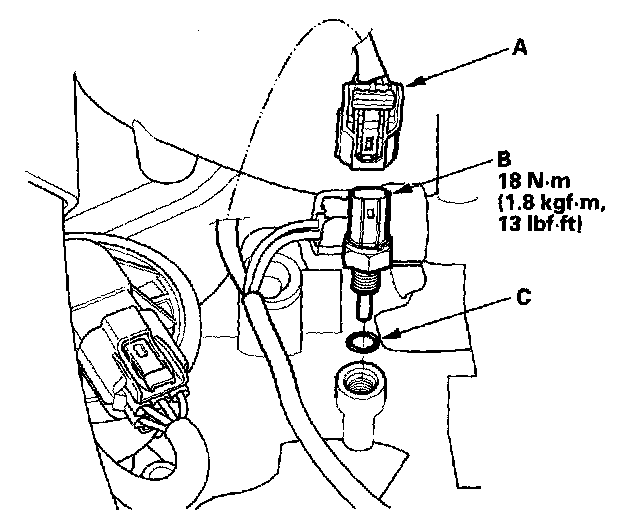

ECT Sensor Replacement

1. Remove the air cleaner.




2. Disconnect the ECT sensor connector (A).
3. Remove the ECT sensor (B).
4. Install the sensor in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant.
