Electronic Throttle Control Module: Service and Repair

Throttle Actuator Control Module Replacement

1. Remove the glove box and panel.

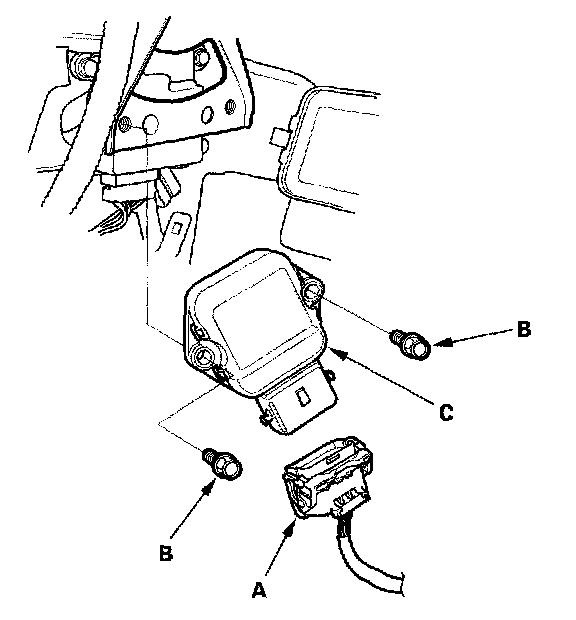

2. Disconnect the throttle actuator control module 16P connector (A).
3. Remove the bolts (B), and the throttle actuator control module (C).
4. Install the control module in the reverse order of removal.
