Transmission Gear Selection Switch Replacement
Transmission Gear Selection Switch Replacement1. Remove the center console.

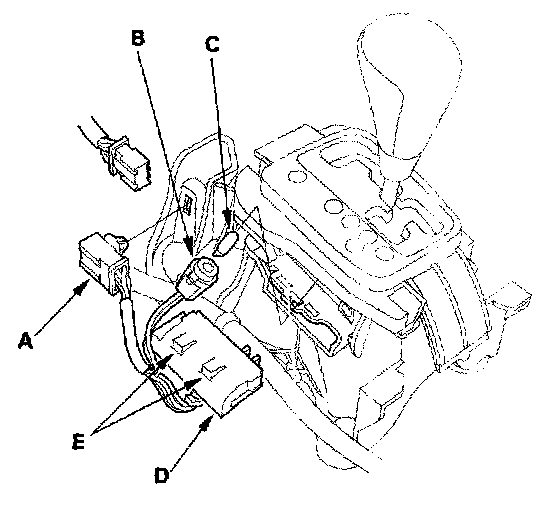

2. Disconnect transmission gear selection switch/park pin switch connects (A), then remove the connector from the, shift lever bracket base.
3. Remove the A/T gear position indicator panel light bulb socket (B), then remove the bulb (C) from the socket.
4. Remove the transmission gear selection switch/park pin switch (D) by releasing the lock tabs (E).
5. Install the new switch assembly in the shift lever bracket base.
6. Install the bulb in the socket, then install the socket in the bracket base.
7. Install the switch connector on the bracket base, then connect the connector.
8. Install the center console.
