Knock Sensor: Service and Repair

Knock Sensor Replacement

1. Remove the intake manifold.
2. Remove the fuel rails and the intake runner base.

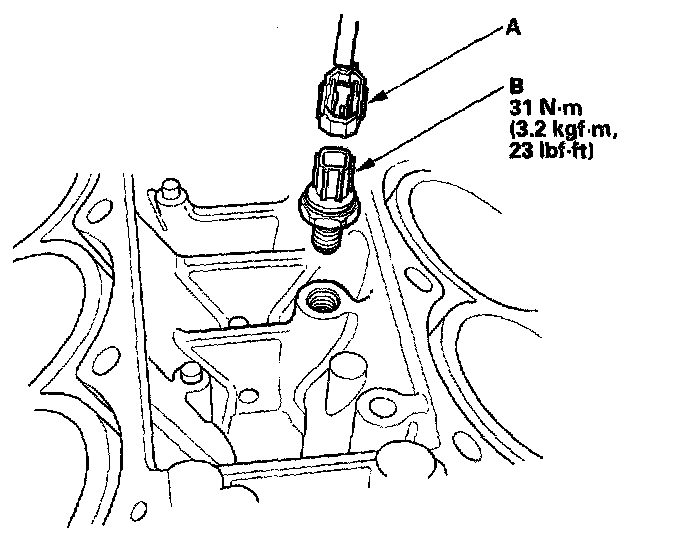

3. Disconnect the knock sensor connector (A), then remove the knock sensor (B).
4. Install the sensor in the reverse order of removal.
