Ignition System: Testing and Inspection
Ignition Coil Relay Circuit Troubleshooting1. Check the No. 2 (15 A)fuse in the under-dash fuse/relay box.
Is the fuse OK?
YES - Go to step 2.
NO - Replace the fuse.
2. Remove the ignition coil relay from the under-dash fuse/relay box and test it.
Is the relay OK?
YES - Go to step 3.
NO - Replace the ignition coil relay.

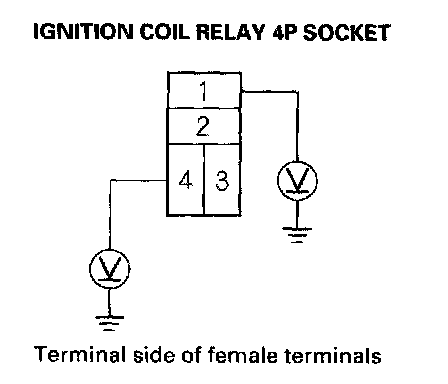

3. Measure the voltage between ignition coil relay 4P socket terminal No. 1 and body ground, then terminal No. 4 and body ground.
Is there battery voltage?
YES - Go to step 4.
NO - Replace the under-dash fuse/relay box.

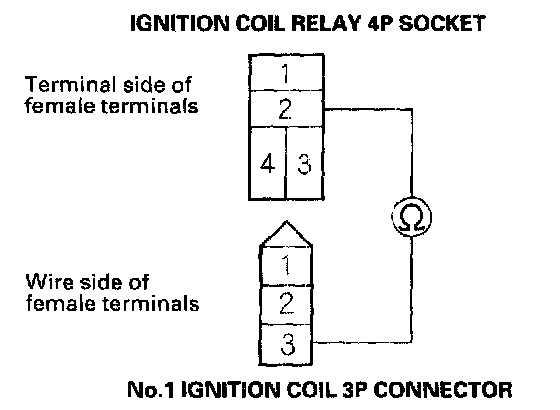

4. Check for continuity between ignition coil relay 4P socket terminal No. 2 and the No. 1 ignition coil 3P connector terminal No. 3.
Is there continuity?
YES - Go to step 5.
NO - Repair an open in the wire between ignition coil relay 4P socket terminal No. 2 and ignition coil 3P connector terminal No. 3.

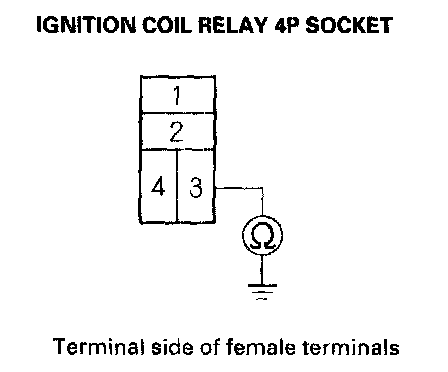

5. Check for continuity between ignition coil relay 4P socket terminal No. 3 and body ground.
Is there continuity?
YES - Repair a short in the wire between ignition coil relay 4P socket terminal No. 3 and ECM/PCM.
NO - Repair an open in the wire between ignition coil relay 4P socket terminal No. 3 and ECM/PCM.
