Display Panel Control Unit Removal/Installation

Display Panel Control Unit Removal/Installation

1. Remove the audio-HVAC display module assembly.

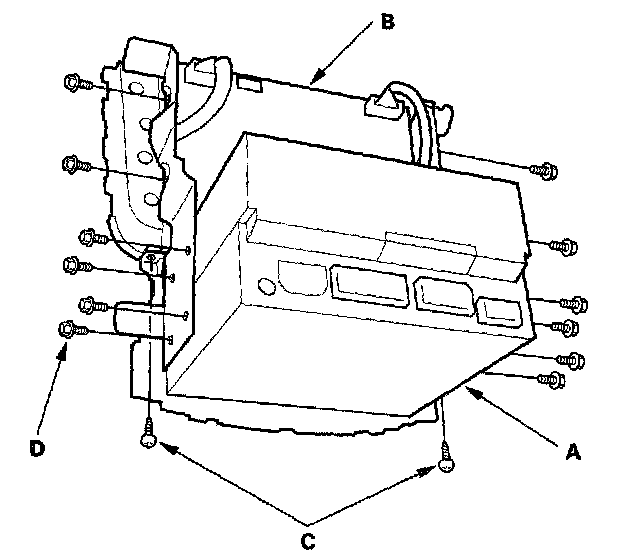

2. Remove the screws and bolts, then separate the audio unit (A) and display panel control unit (B).

NOTE: To avoid the damage, remove the screws (C) first, then remove the bolts (D).

3. Install the audio unit to the display panel control unit in the reverse order of removal.
