Intake Manifold

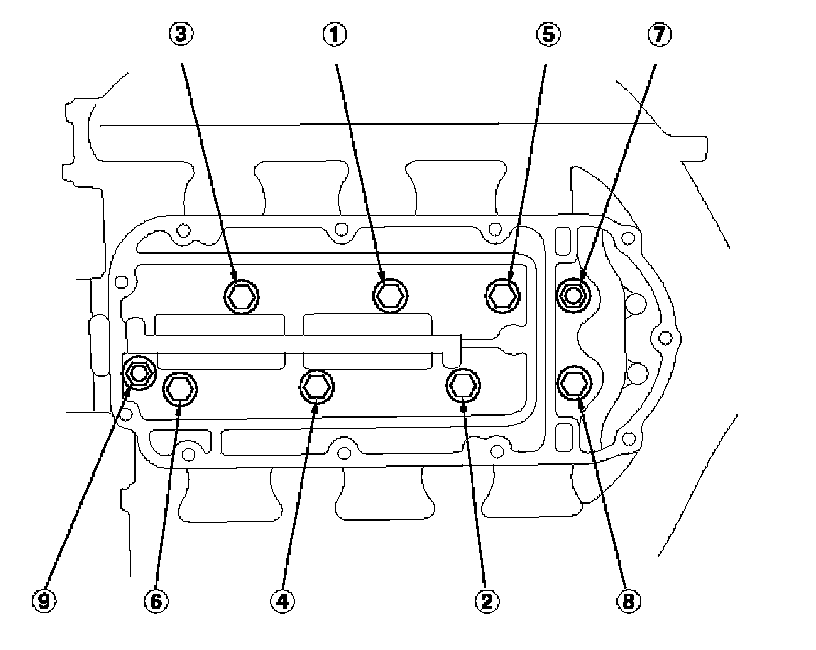

Intake Manifold





Tighten the bolts and nuts sequentially in two or three steps. Always use a new intake manifold gasket.

Specified torque: 8 x 1.25 mm 22 Nm (2.2 kgf.m, 16 lbf ft)

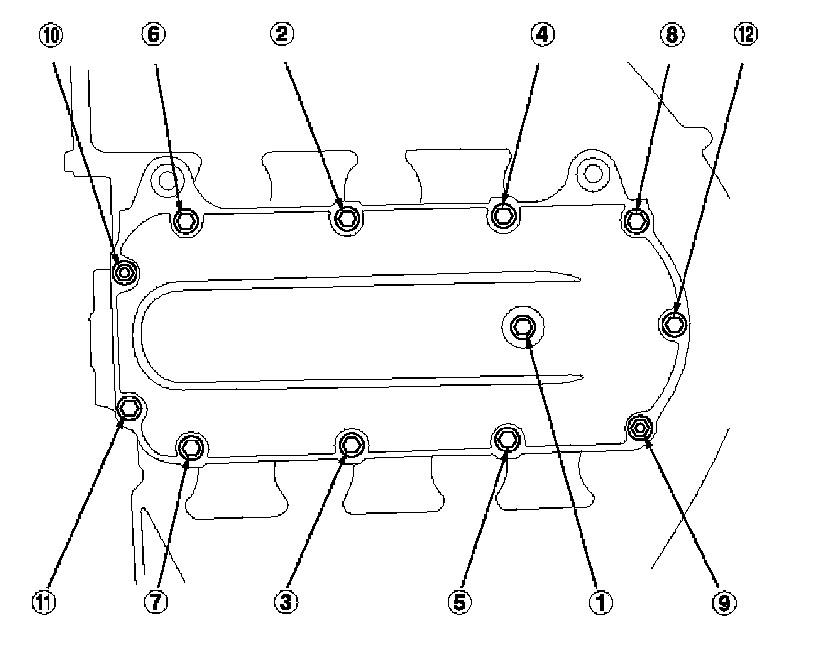

Intake Manifold Upper Cover





Tighten the bolts and nuts sequentially in two or three steps. Always use a new gasket.

Specified torque: 6 x 1.0 mm 12 Nm (1.2 kgf.m, 8.7 lbf ft)
