Oil Pan, Engine

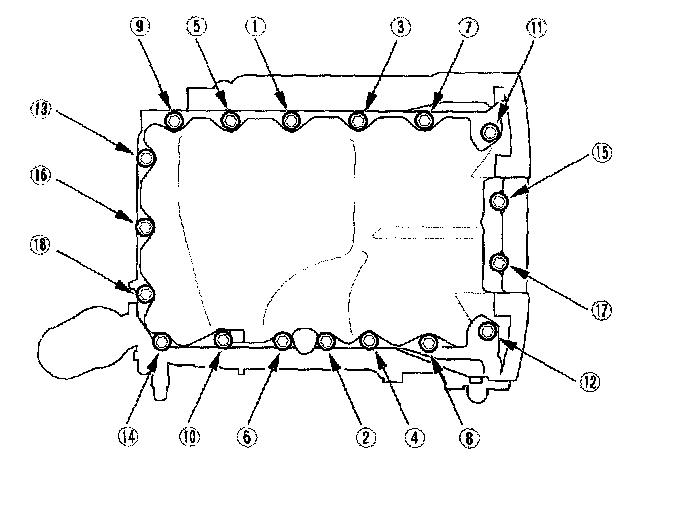

Oil pan





Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence, to 12 Nm (1.2 kgf-cm, 8.7 ft. lbs.)
