Exhaust Manifold

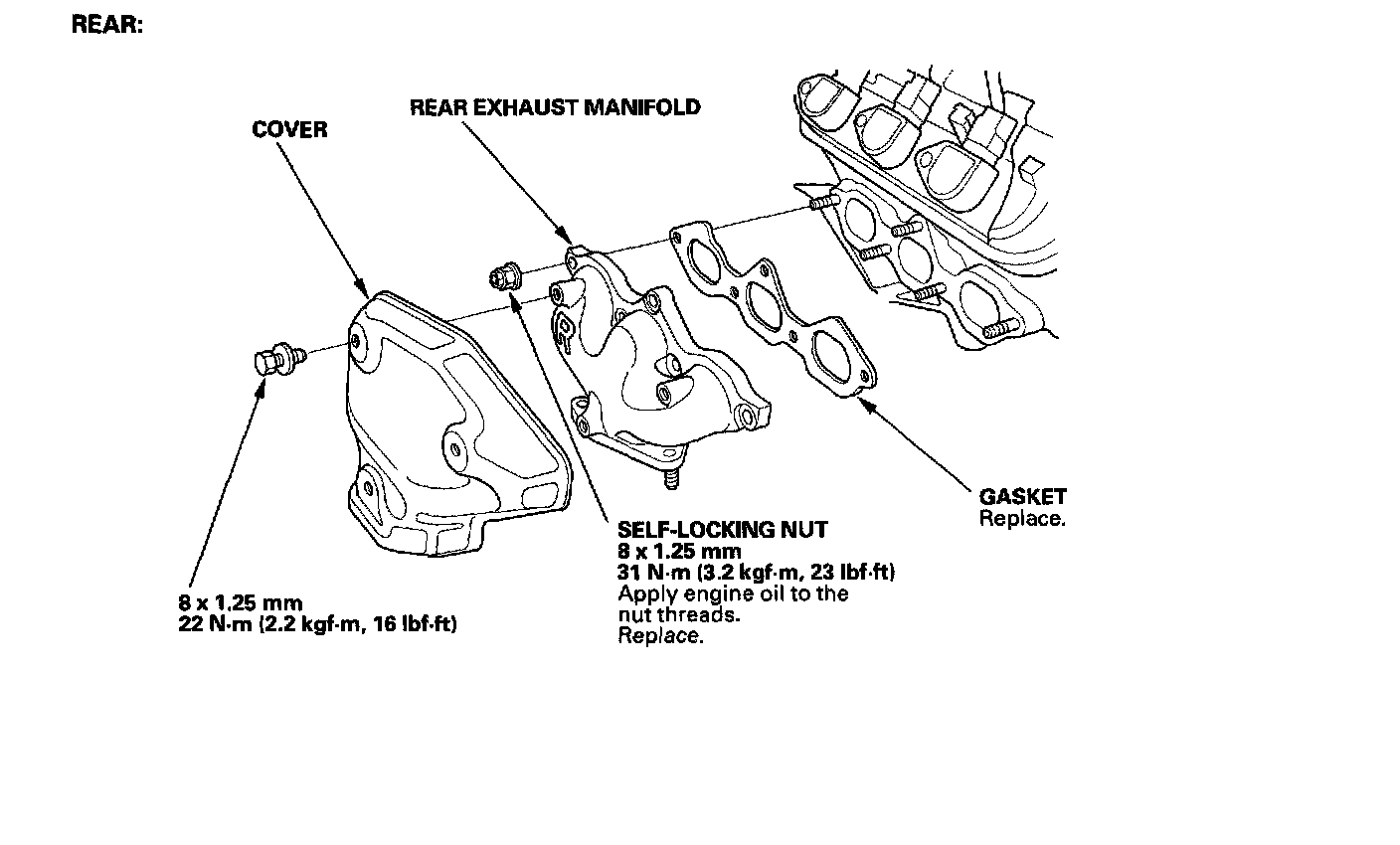

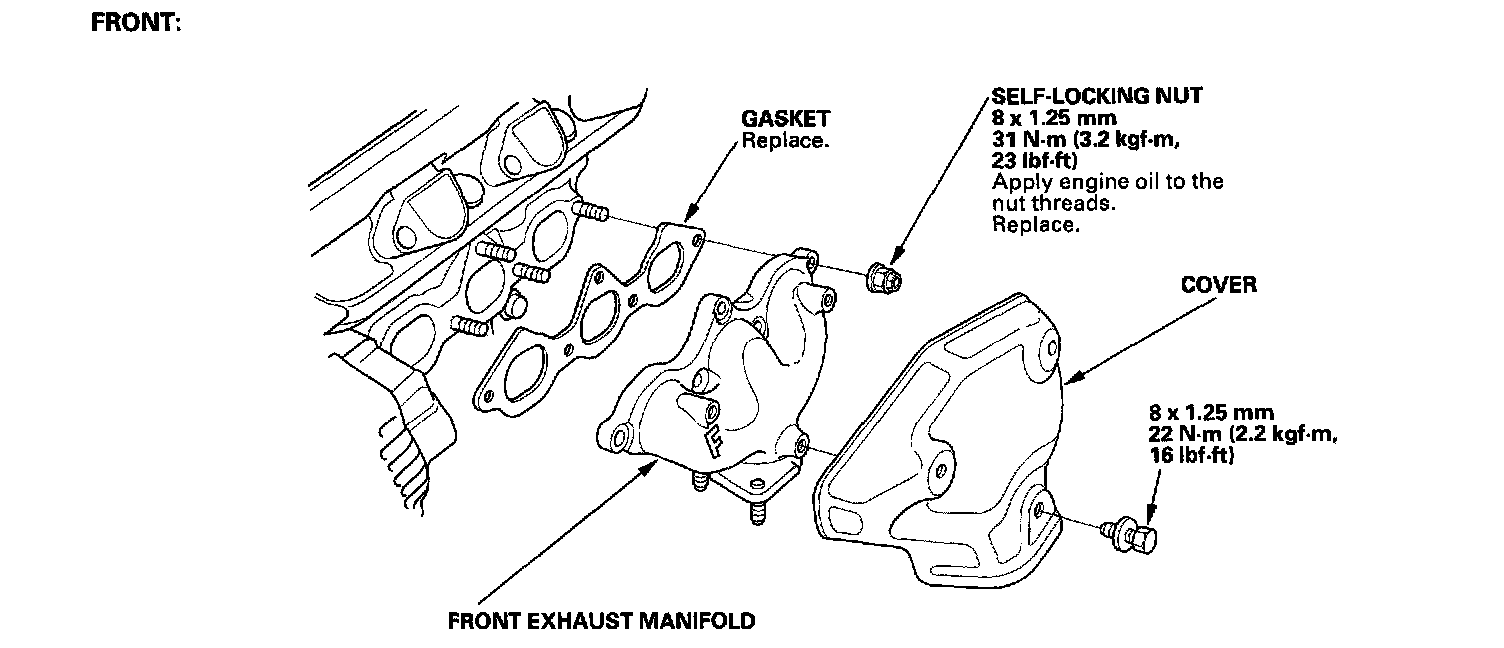

Exhaust Manifold Removal and Installation








NOTE:
^ Use new gaskets and self-locking nuts when reassembling.
^ Check for folds or scratches on the surfaces of the gaskets.
