Oil Pump

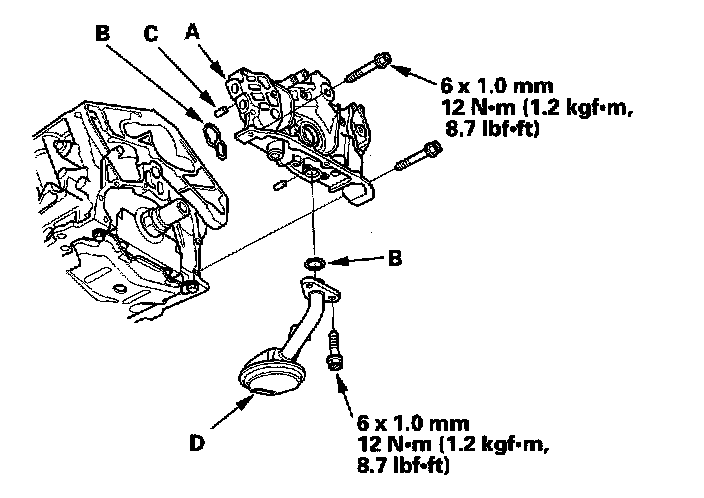

Install the oil pump (A).

Apply liquid gasket, part No.08718-0001 or 08718-0003, evenly to the block mating surface of the oil pump and to the inner threads of the bolt holes.

NOTE: Do not install the parts if minutes or more have elapsed since applying the liquid gasket. Instead, reapply liquid gasket after removing the old residue.
